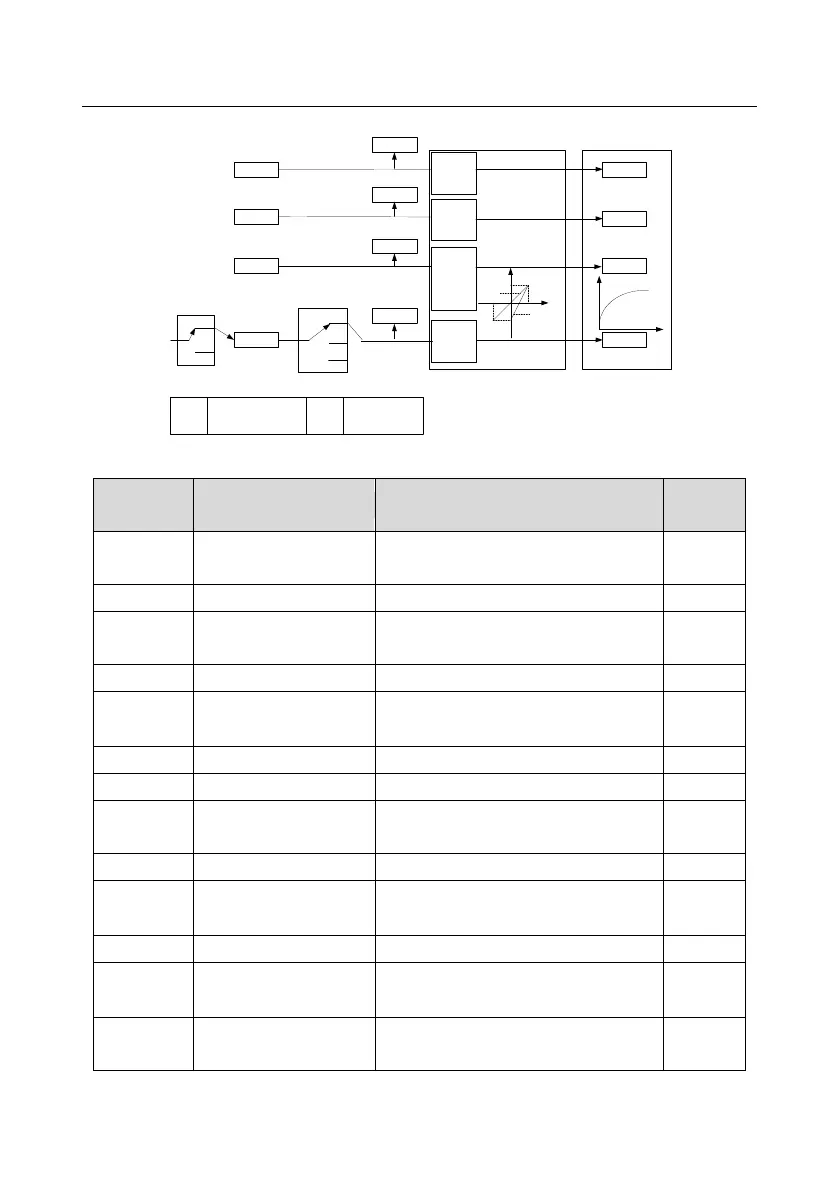

Goodrive35 inverters Basic operation instruction
206
AI1
AI3
HDI
P05.32
P05.33
P05.34
P05.35
P05.42
P05.43
P05.44
P05.45
P05.46
P05.47
P05.50
P05.51
P05.52
P05.53
P05.48
P05.36
P05.54
P17.19
P17.21
P17.22
AI2
P05.37
P05.38
P05.39
P05.40
P05.41
P17.20
P05.00
（HDI input type selection ）
0
1
1
2
0
P05.49
（HDI high speed pulse input function selection ）
AI1 input voltage
AI2 input voltage
AI3 input voltage
HDI input frequency
AI3
AI1/AI2/HDI
P05.00
0: HDI is high speed pulse input
1: HDI is switch input
P05.49
0: frequency setting input
1: counter input
2: length counter input
Analog curve input setting
Analog input filter
Relative parameters list:
Function
code
Name
Detailed instruction of parameters
Default
value
P05.00
HDI input selection
0: High pulse input
1: Digital input.
0
P05.32
Lower limit of AI1
0.00V~P05.25
0.00V
P05.33
Corresponding setting of
the lower limit of AI1
-300.0%~300.0%
0.0%
P05.34
Upper limit of AI1
P05.23~10.00V
10.00V
P05.35
Corresponding setting of
the upper limit of AI1
-300.0%~300.0%
100.0%
P05.36
AI1 input filter time
0.000s~10.000s
0.030s
P05.37
Lower limit of AI2
0.00V~P05.30
0.00V
P05.38
Corresponding setting of
the lower limit of AI2
-300.0%~300.0%
0.0%
P05.39
Upper limit of AI2
P05.28~10.00V
10.00V
P05.40
Corresponding setting of
the upper limit of AI2
-300.0%~300.0%
100.0%
P05.41
AI2 input filter time
0.000s~10.000s
0.030s
P05.42
Lower limit of
AI3
-10.00V~P05.35
-10.00V
P05.43
Corresponding setting of
the lower limit of AI3
-300.0%~300.0%
-100.0%
