INVT Goodrive 35 Series User Manual

Goodrive35 inverters Appendix C
315

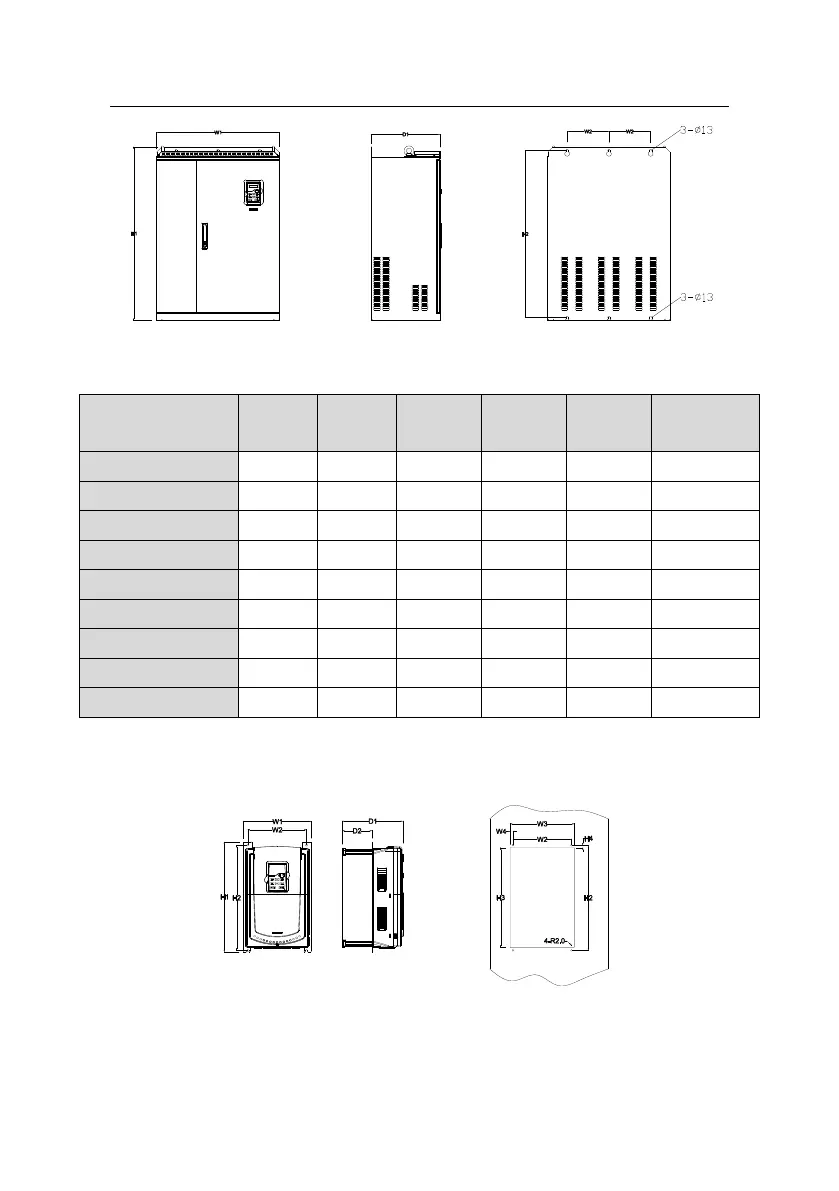

Wall installation of 380V 220-315kW inverters
Installation dimension (unit:mm)
Model
W1
W2
H1
H2
D1
Installation
hole
1.5kW~2.2kW
126
115
193
175
174.5
5
4kW~5.5kW
146
131
263
243.5
181
6
7.5kW~11kW
170
151
331.5
303.5
216
6
15kW~18.5kW
230
210
342
311
216
6
22kW~30kW
255
237
407
384
245
7
37kW~55kW
270
130
555
540
325
7
75kW~110kW
325
200
680
661
365
9.5
132kW~200kW
500
180
870
850
360
11
220kW~315kW
680
230
960
926
380
13
C.4.2 Flange installation
Flange installation of 380V 1.5-30kW inverters
