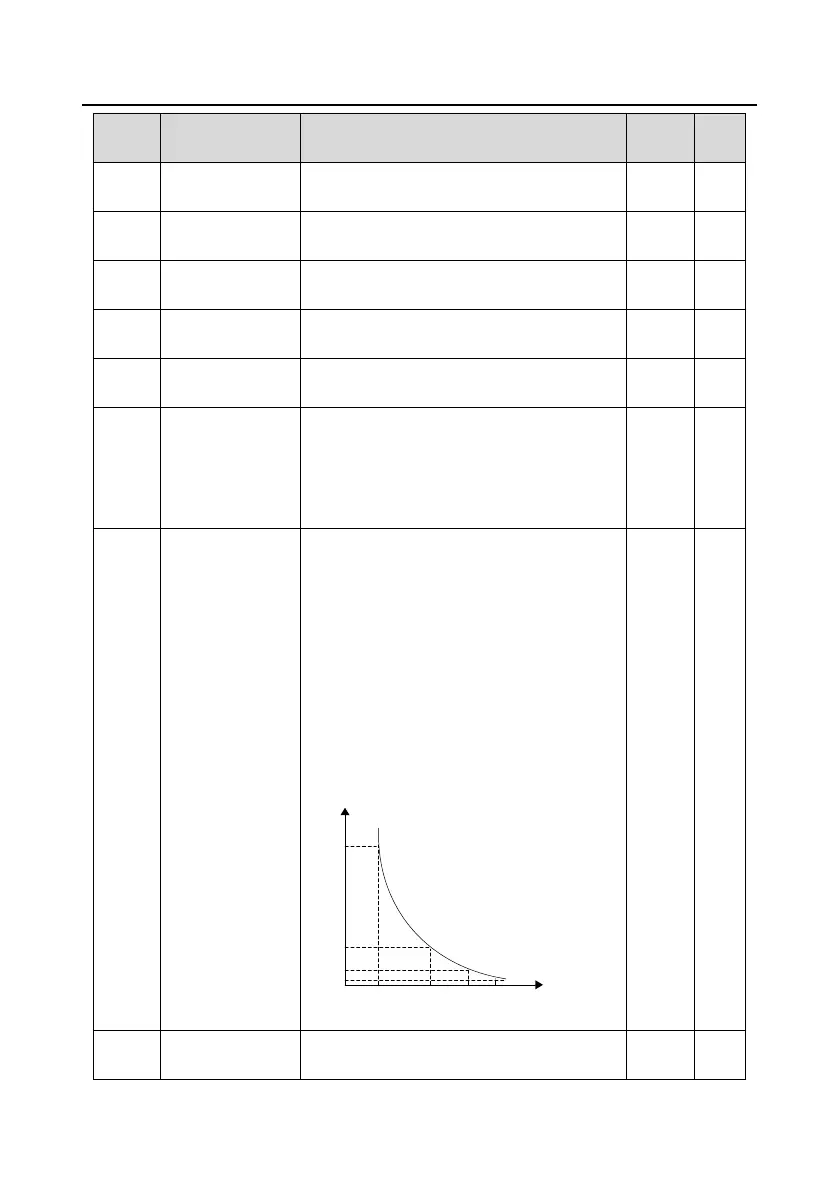

INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Function parameter list
-227-
Function
code
Name
Description
Default
Modify
P12.20
Stator resistance of
SM 2
0.001–65.535Ω
Depends
on model
○
P12.21
Direct-axis
inductance of SM 2
0.01–655.35mH
Depends
on model
○
P12.22
Quadrature-axis
inductance of SM 2
0.01–655.35mH
Depends
on model
○
P12.23
Counter-emf
constant of SM 2
0–10000V
300
○
P12.24–
P12.25
Reserved
P12.26
Overload protection
of motor 2
0: No protection
1: Common motor (with low-speed
compensation)
2: Frequency-variable motor (without low-speed
compensation)
2
◎
P12.27
Overload protection
coefficient of
motor 2
Motor overload multiples M=Iout/(In*K)
In is rated motor current, lout is VFD output
current, K is motor overload protection
coefficient.
A smaller value of "K" indicates a bigger value of
"M".
When M=116%, protection is performed after
motor overload lasts for 1 hour; when M=200%,
protection is performed after motor overload
lasts for 60 seconds; and when M≥400%,
protection is performed immediately.
1
5
12
60
116%
200%
Time (min)
Current overload
multiple
150% 180%
Setting range: 20.0%–120.0%
100.0%
○
P12.28
Power display
calibration
0.00–3.00
1.00
○
