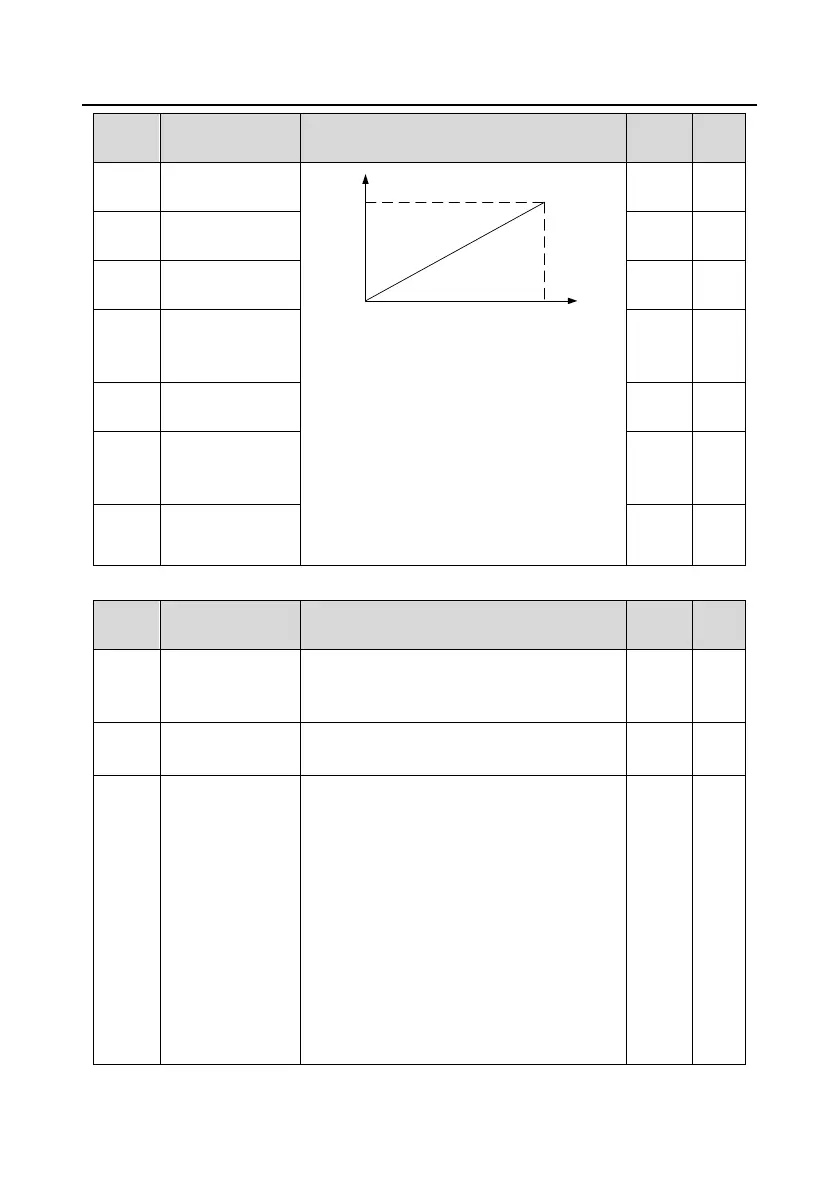

INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Function parameter list
-245-
Function
code
Name
Description
Default
Modify
corresponding to
upper limit
10V (20mA)
0.0% 100.0%
AO
P26.38 setting range: -300.0%–P26.40
Setting range of P26.39: 0.00V–10.00V
P26.40 setting range: P26.38–100.0%
P26.41 setting range: 0.00V–10.00V
P26.42 setting range: 0.000s–10.000s
P26.43 setting range: -300.0%–P26.45
P26.44 setting range: 0.00V–10.00V
P26.45 setting range: P26.43––300.0%
P26.46 setting range: 0.00V–10.00V
P26.47 setting range: 0.000s–10.000s
P26.42
AO2 output filter
time
0.000s
○
P26.43
AO3 output lower
limit
0.0%
○
P26.44
AO3 output
corresponding to
lower limit
0.00V
○
P26.45
AO3 output upper
limit
100.0%
○
P26.46
AO3 output
corresponding to
upper limit
10.00V
○
P26.47
AO3 output filter
time
0.000s
○
P28 group––Master/slave control
Function
code
Name
Description
Default
Modify
P28.00
Master/slave mode
0: Master/slave control is invalid.
1: The local device is the master.
2: The local device is the slave.
0
◎
P28.01
Master/slave
communication data
selection
0: CAN
1: Reserved
0
◎
P28.02
Master/slave control
mode
0x000–0x112
Ones place: Master/slave running mode
selection
0: Master/slave mode 0
The master and slave use speed control, with
power balanced through droop control.
1: Master/slave mode 1
(The master and slave must be in the same type
of vector control. When the master is in speed
control, the slave is forced into torque control.)
2: Master/slave mode 2
The slave switches from speed mode
0x001
◎
