mounting, flange mounting (applicable to 200kW and lower models), and floor mounting (applicable to
220–500kW models).
Wall mounting
Flange mounting

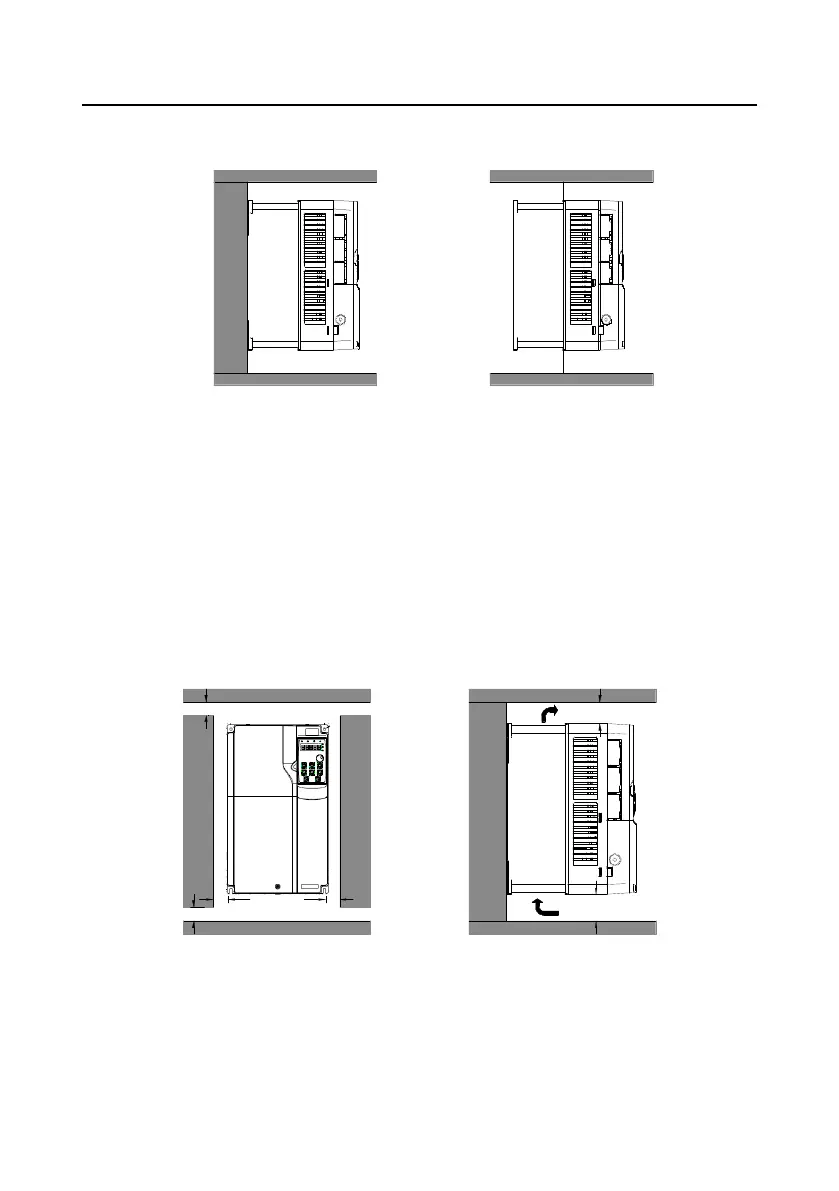

Figure 4-2 Mounting method
The mounting procedure is as follows:
1. Mark the installation hole positions. For details about the installation hole positions, see Appendix
C Dimension drawings.
2. Mount the screws or bolts onto the designated positions.
3. Lean the VFD against the wall.
4. Tighten the screws.
Note: The flange mounting plate must be used for flange mounting.
4.2.4 Installing one VFD
Cold air
Hot air
C
C
A
B
A
B
Figure 4-3 Installing one VFD
Note: For clearances B and C, each must be 100mm at least.
