INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Installation guidelines
-28-
4.3 Standard wiring of the main circuit
4.3.1 Main circuit wiring diagram
Input
reactor
Input
filter
Fuse
R
S
T
U
V
W
PE
Output
reactor
Output
filter
M
(+) (-)
3PH power
380V 50/60Hz
380V VFD

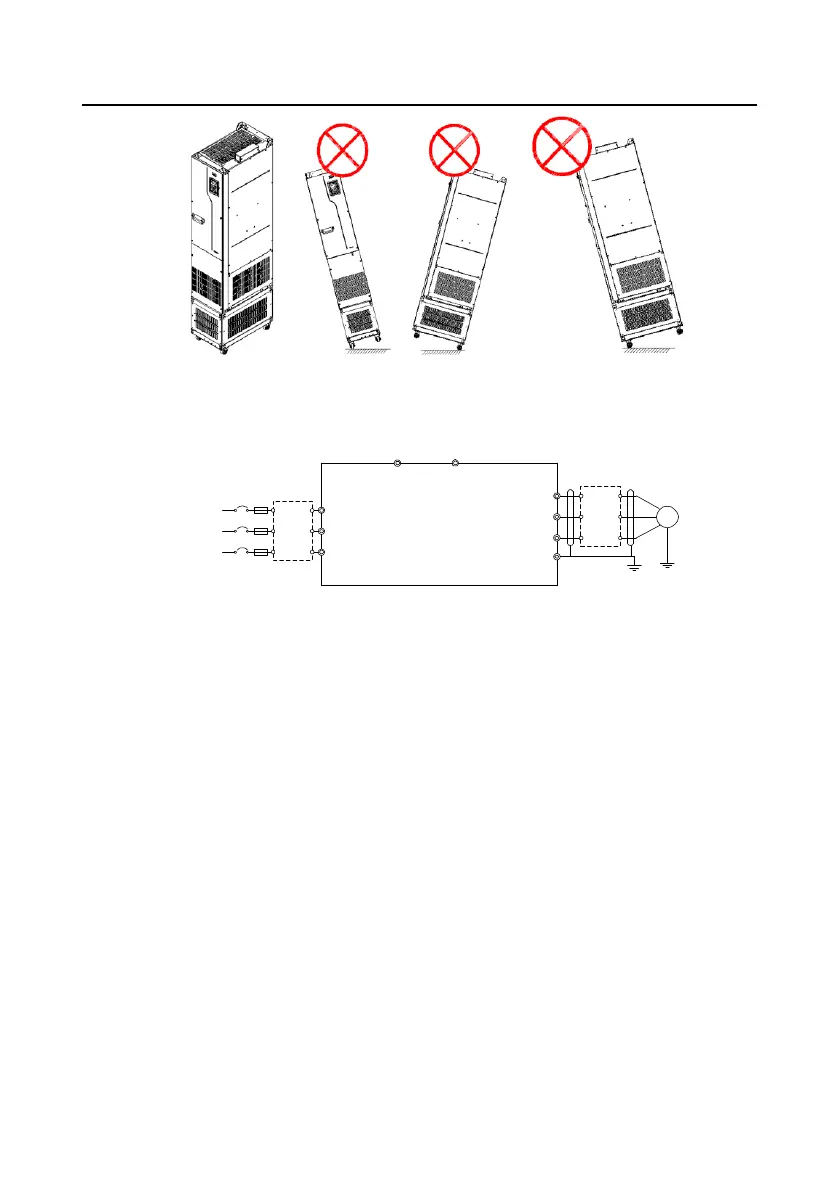

Figure 4-19 AC 3PH 380V main circuit wiring
Note:
 The fuse, input reactor, input filter, output reactor, and output filter are optional parts. For details,
see "Appendix D Optional peripheral accessories".
 If you require the built-in DC reactor, purchase the VFD model with the suffix "-L1".
