Goodrive270 series VFD for fan and pump Basic operation guidelines
-51-
01: GD270
16:02:35
Fwd
Local Ready
DC Bus Volt
Back
Home
0.0 2000.0
01: GD270
16:02:35
Fwd
Local Ready
DC Bus Volt
P17.11 V
540.00
DigiInputTrmlState
P17.12
0x0000
0x0000
AboutMonitor
Menu
DigiOutpTrmlState
P17.13
540.00
V
Figure 5-12 Running parameter display state 2
In running state, multiple kinds of state parameters can be displayed. The running display parameter
list is user defined, and each state variable function code can be added to the running display
parameter list as needed. A function code which has been added to the running display parameter list
can also be deleted or shifted.
5.4.3 Displaying fault information
The VFD enters fault alarm display state once fault signal is detected, and the keypad displays fault
code and fault information with TRIP indicator on the keypad turning on. Fault reset operation can be
carried out via STOP/RST key, control terminal or communication command.
The fault code will be kept displaying until fault is removed.
01: GD270
16:02:35
Fwd
Local
Fault
Home
OK
Fault code:
19: Current detection fault (ItE)
Present fault type:
19
Back
Figure 5-13 Fault alarm display state

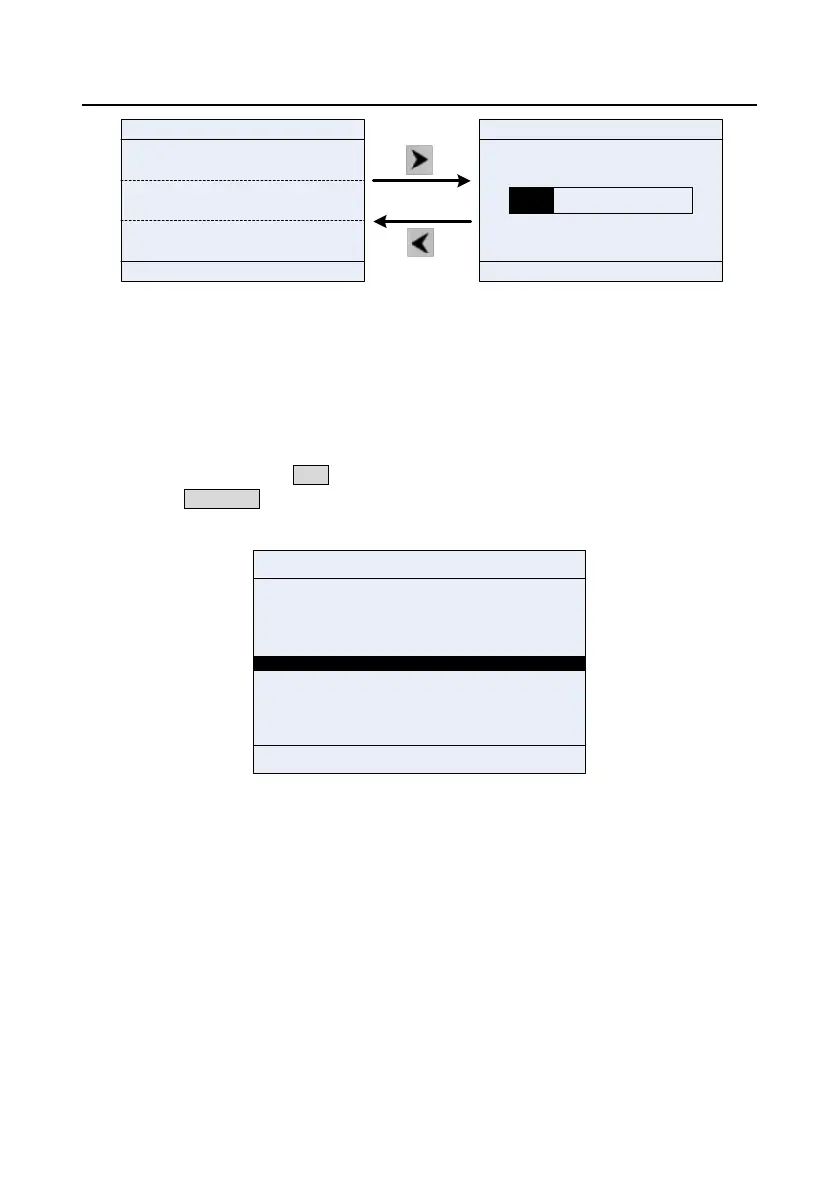

You can perform various operations on the VFD by using the keypad, including entering/exiting menu,
parameter selection, list modification and parameter addition.
5.4.4 Entering/exiting menus
The keypad displays three main menus at the home interface by default: Parameter, About, and
Menu. The following figure shows how to enter the Parameter main menu and how to operate under
this main menu.
