INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Dimension drawings
-341-
C.4.3 Floor mounting dimensions
Base mounting bracket

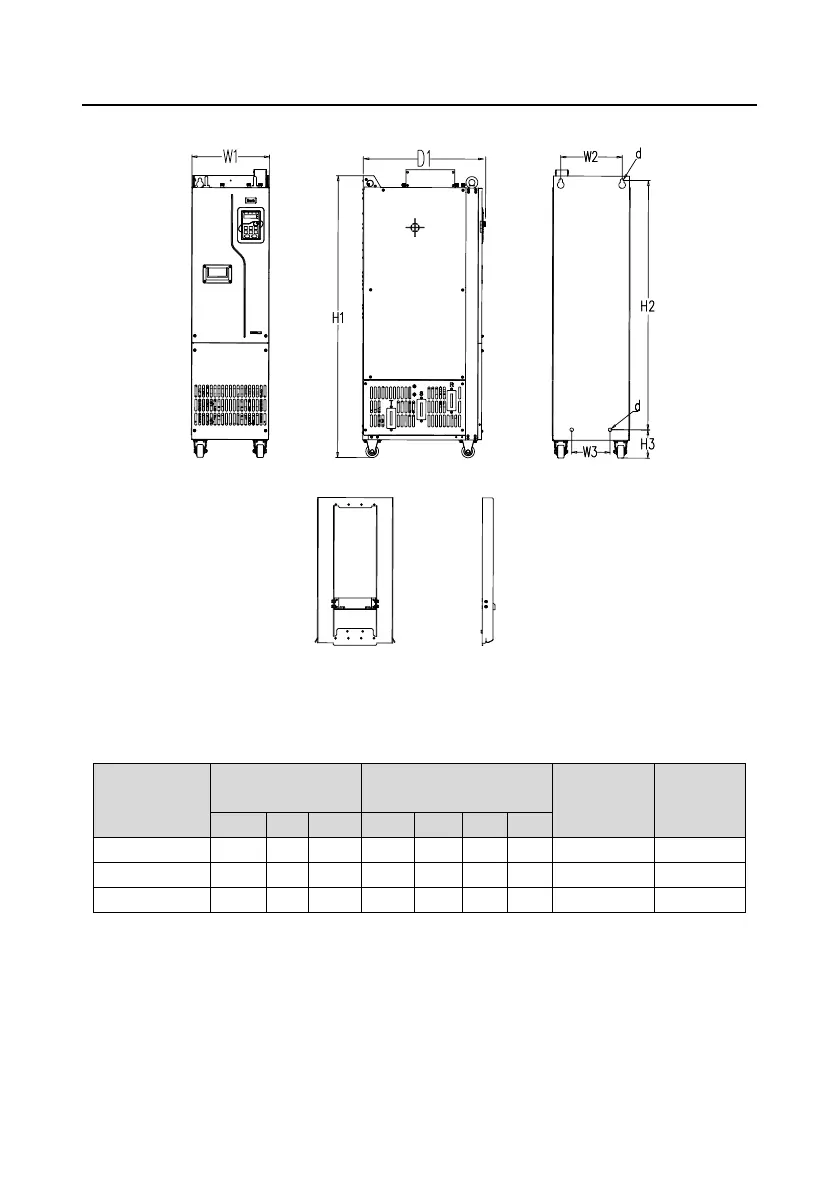

Figure C-13 380V 220–500kW VFD floor mounting diagram
Table C-6 380V 220–500kW VFD floor mounting dimensions
VFD model
Outline dimensions
(mm)
Mounting hole distance
(mm)
Hole diameter
Fixing
screw
W1
H1
D1
H2
H3
W2
W3
220–250kW
303
1108
477
980
111
240
150
ø 14
M12
280–355kW
330
1288
552
1150
122
225
185
ø 13
M10
400–500kW
330
1398
552
1280
101
240
200
ø 13
M10
For details about the base mounting bracket, see Figure C-15 and Table C-8.
