INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Dimension drawings
-343-
Base dimensions
Place of base for supporting the
VFD cabinet
Cabinet
front
Cabinet
back

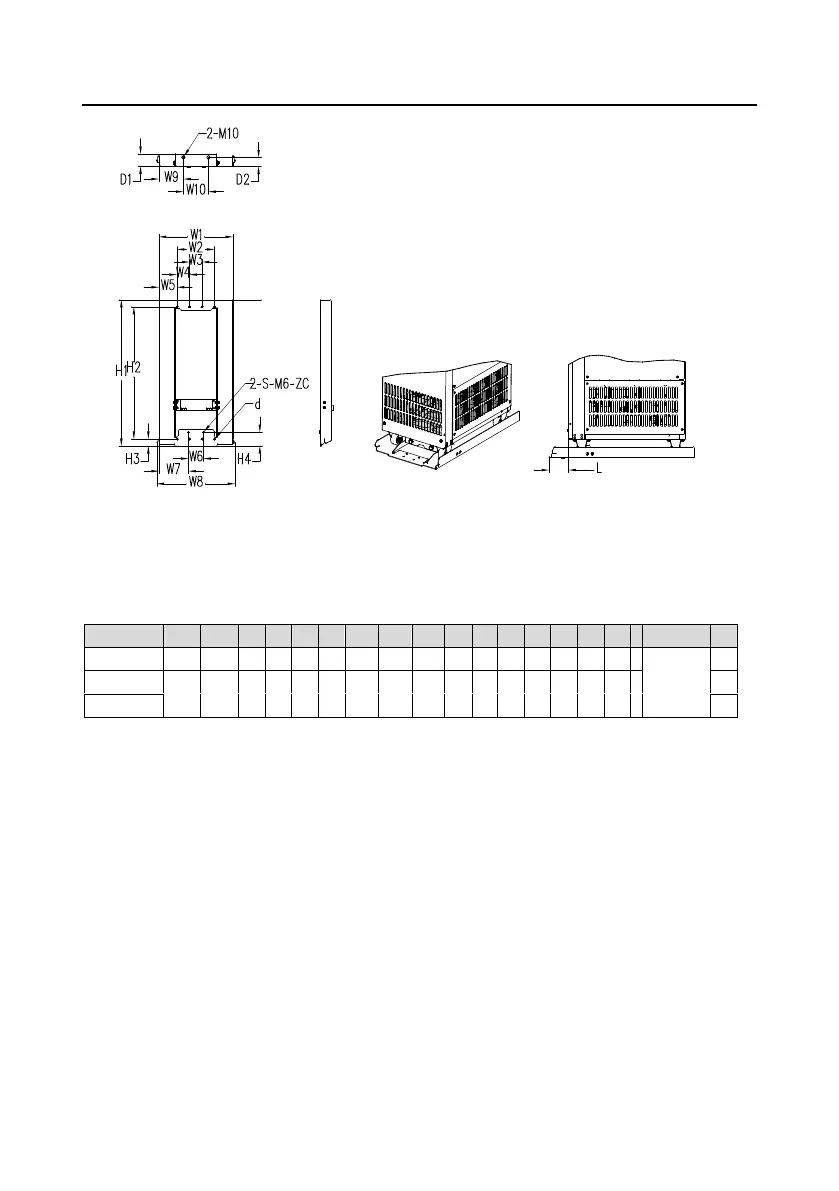

Figure C-15 380V 220–500kW VFD base bracket dimensions and mounting
Table C-8 380V 220–500kW VFD base bracket dimensions
VFD model
W1
W2
W3
W4
W5
W6
W7
W8
W9
W10
H1
H2
H3
H4
D1
D2
d
Screw
L
220–250kW
295
150
50
50
71.5
60
117.5
313
97.5
100
580
525
27.5
54.5
50
36
6
M5
self-tapping
screw
77.5
280–315kW
321
150
50
50
84.5
60
130.5
339
110.5
100
580
525
27.5
54.5
46
33.5
6
25.5
355–500kW
25
