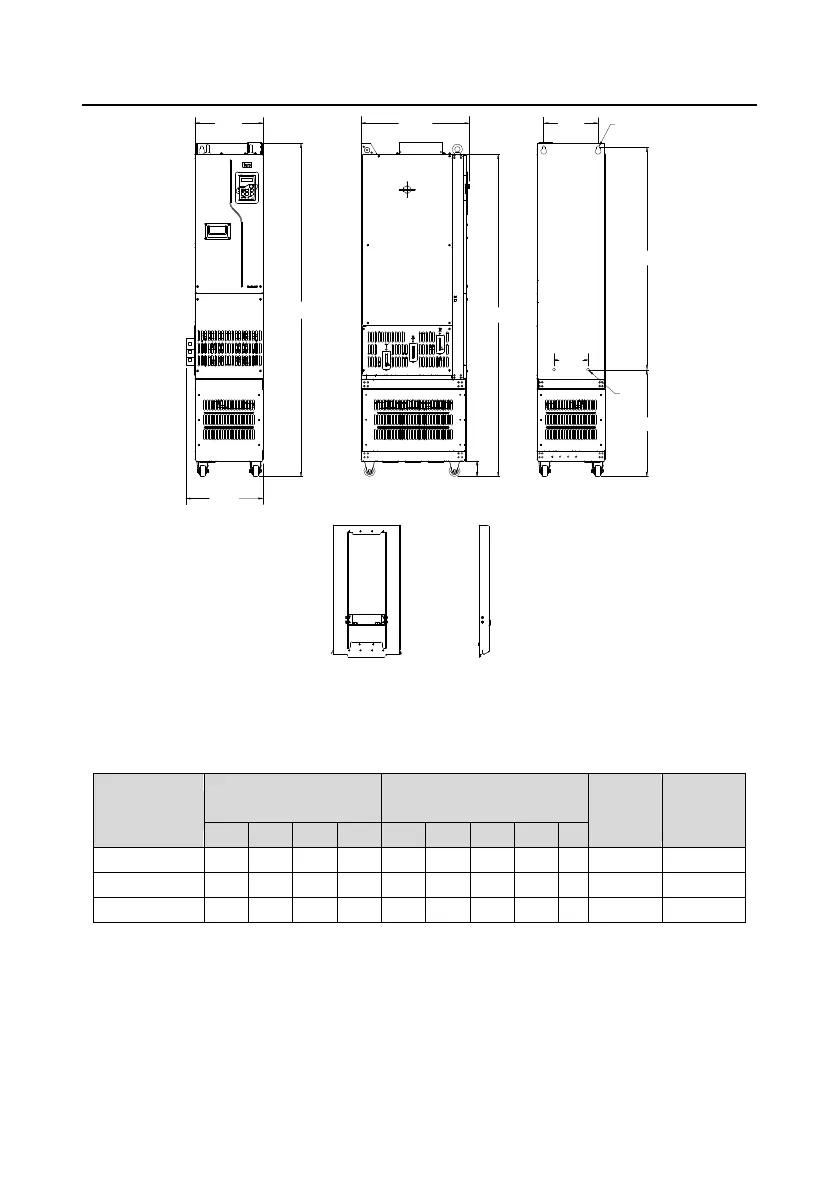

Goodrive270 series VFD for fan and pump Dimension drawings
-342-
H2
H3
d
H1
H4
70
Base mounting bracket
d
W1
W4
D1
W2
W3
Figure C-14 Mounting diagram for 380V 220–500kW VFDs with output reactors
Table C-7 Floor mounting dimensions for 380V 220–500 VFDs with output reactors
VFD model
Outline dimensions
(mm)
Mounting hole distance
(mm)
Hole
diameter
Fixing
screw
W1
W4
H1
D1
H2
H3
H4
W2
W3
220–250kW
303
350
1470
477
980
471
1420
240
150
ø 14
M12
280–355kW
330
428
1619
552
1150
453
1571
225
185
ø 13
M10
400–500kW
330
430
1729
552
1280
432
1681
240
200
ø 13
M10
For details about the base mounting bracket, see Figure C-15 and Table C-8.
