INVT Goodrive270 Series User Manual

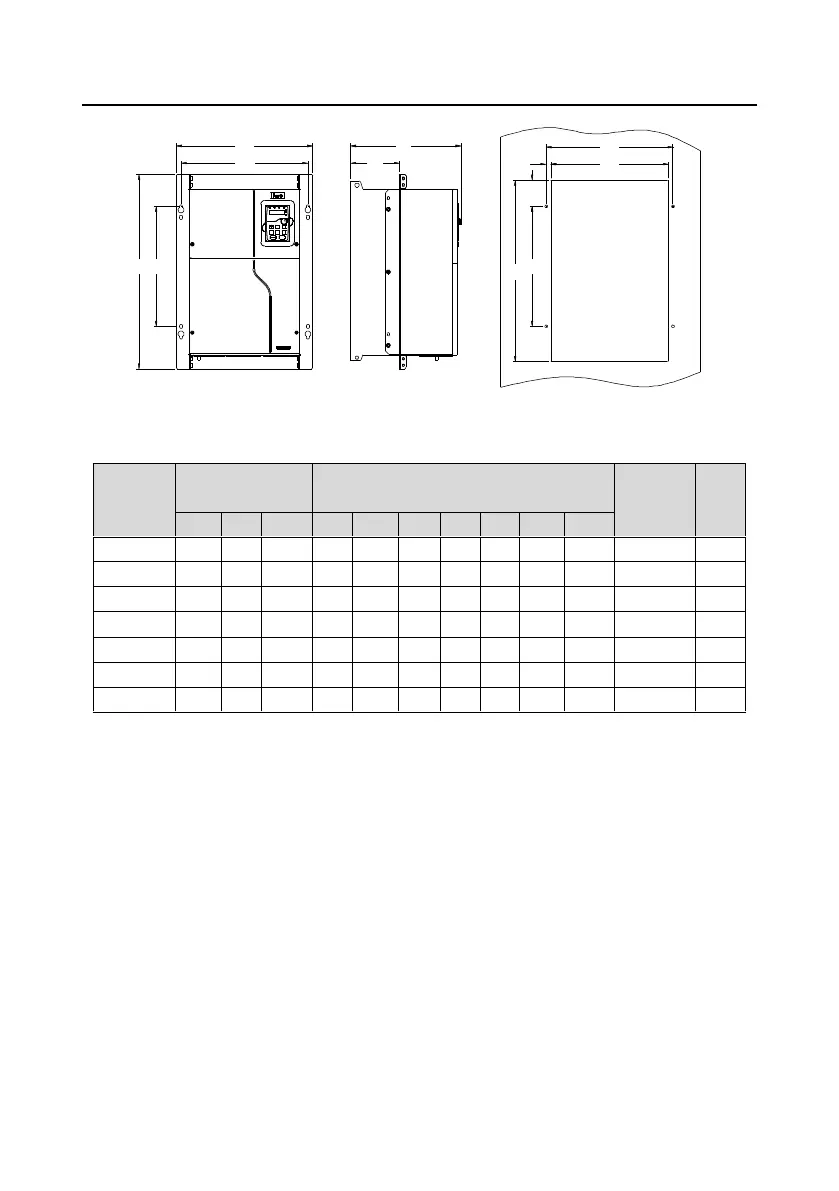

Goodrive270 series VFD for fan and pump Dimension drawings
-340-
H2
H1
D2
D1
H4
W4 W3
W2
H3
H2
W1
W2
Figure C-12 380V 110–200kW VFD flange mounting diagram
Table C-5 380V 11–200kW VFD flange mounting dimensions
VFD model
Outline
dimensions (mm)
Mounting hole distance (mm)
Installation
hole
Fixed
Screw
W1
H1
D1
H2
H3
H4
W2
W3
W4
D2
11–15kW
200
306
207
215
282
33.5
184
164
10
102
ø 6
M5
18.5–22kW
224
346
214
255
322
33.5
208
189
9.5
108
ø 6
M5
30–37kW
266
371
214
250
350.5
50.5
250
224
13
104
ø 6
M5
45kW
316
430
228
300
410
55
300
274
13
118.5
ø 6
M5
55–90kW
352
580
264
400
570
90
332
306
13
134
ø 9
M8
110–132kW
418.5
600
338
370
559
80.5
389.5
361
14
149.5
ø 10
M8
160–200kW
428
868
398.5
625
830
80
394
345
24.5
183
ø 11
M10
