Goodrive270 series VFD for fan and pump Dimension drawings
-339-
Table C-4 380V 1.5–7.5kW VFD flange mounting dimensions
VFD model
Outline
dimensions (mm)
Mounting hole distance (mm)
Hole
diameter
Fixing
screw
W1
H1
D1
H2
H3
H4
W2
W3
W4
D2
1.5–4kW
117
233.5
193
153.5
225
30
105
92.5
6.5
55
ø 6
M5
5.5–7.5kW
117
261
211.5
180
250
30
105
92.5
6.5
75
ø 6
M5
d
D2
W1
W2
H1
H2
D1
W3
W2
H4
4
-
R
2
H3
H2
W4
d

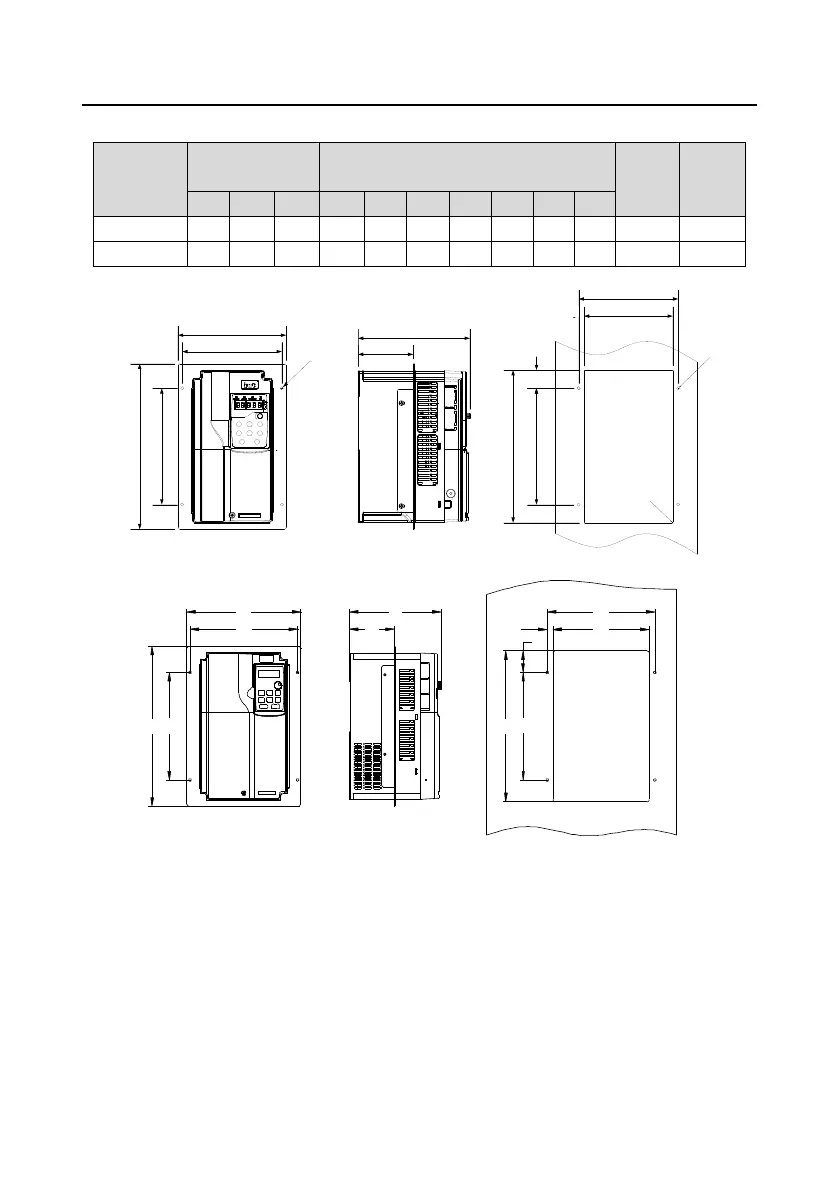

Figure C-10 380V 11–22kW VFD flange mounting diagram
W1
H1
H2
W2 D2
D1 W2
W3
H2
H3
W4
H4
Figure C-11 380V 30–90kW VFD flange mounting diagram
