INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Optional peripheral accessories
-348-
VFD model
R, S, T / U, V, W
(+), (-)
PE
Fastening
torque
(Nm)
Cable
size
(mm
2
)
Connection
terminal
model
Cable
size
(mm
2
)
Connection
terminal model
GD270-220-4(-Ln)
2×95
GTNR95-12
95
GTNR95-12
31–40
GD270-250-4(-Ln)
2×95
GTNR95-12
95
GTNR95-12
31–40
GD270-280-4(-Ln)
2×150
GTNR150-12
150
GTNR150-12
31–40
GD270-315-4(-Ln)
2×150
GTNR150-12
150
GTNR150-12
31–40
GD270-355-4(-Ln)
2×185
GTNR185-12
185
GTNR185-12
31–40
GD270-400-4-Ln
2×185
GTNR185-16
2×120
GTNR120-12
92–100
GD270-450-4-Ln
2×240
GTNR240-16
2×150
GTNR150-12
92–100
GD270-500-4-Ln
2×300
GTNR300-16
2×150
GTNR150-12
92–100
Note: n = 1 or 3
GTNR terminal brand: Suzhou Yuanli (The model varies with the brand.)
TNR terminal brand: Suzhou Yuanli (The model varies with the brand.)

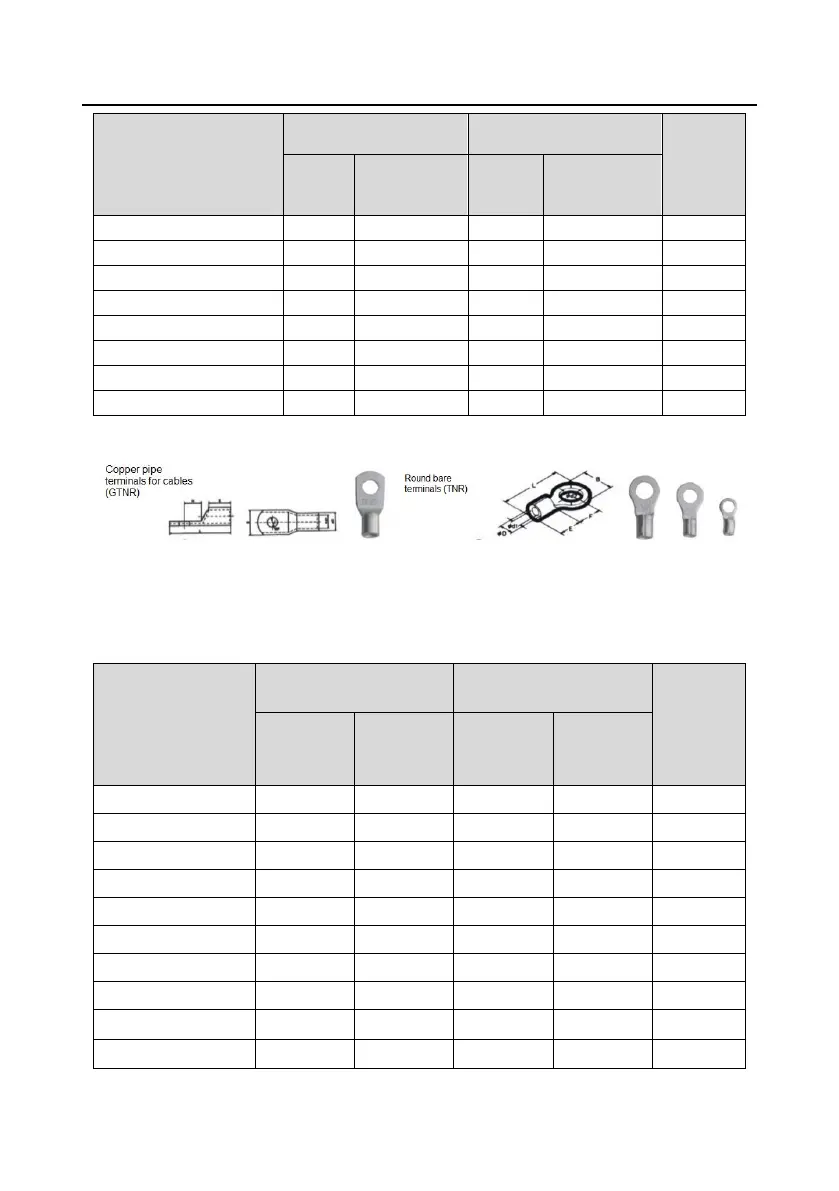

Table D-2 Recommended cable size (Compliant with UL standards)
VFD model
R, S, T / U, V, W
(+), (-)
PE
Fastening
torque (Nm)
Cable size
(AWG/Kcmil)
Connection
terminal
model
Cable size
(AWG/Kcmil)
Connection
terminal
model
GD270-1R5-4(-C2)
16
TLK1.5-4
16
TLK1.5-4
1.2–1.5
GD270-2R2-4(-C2)
16
TLK1.5-4
16
TLK1.5-4
1.2–1.5
GD270-004-4(-C2)
14
TLK2.5-4
14
TLK2.5-4
1.2–1.5
GD270-5R5-4(-C2)
14
TLK2.5-4
14
TLK2.5-4
1.2–1.5
GD270-7R5-4(-C2)
12
TLK4-4
12
TLK4-4
1.2–1.5
GD270-011-4(-L1/-C2)
10
TLK6-5
10
TLK6-5
2–2.5
GD270-015-4(-L1/-C2)
8
TLK10-5
8
TLK10-5
2–2.5
GD270-018-4(-L1/-C2)
6
TLK16-5
6
TLK16-5
2–2.5
GD270-022-4(-L1/-C2)
4
TLK25-5
4
TLK25-5
2–2.5
GD270-030-4(-L1)(-C3)
4
TLK25-6
4
TLK25-5
3.5
