Goodrive270 series VFD for fan and pump Optional peripheral accessories
-353-
 Since output reactors need to be configured for 220kW–500kW VFDs, choose the
GD270-220-4-L3 – GD270-500-4-L3 models.
 The motor cable length listed in the above table represent the ultimate capacity of the VFD. In
practical applications, 80% of the motor cable length in the above table is recommended.

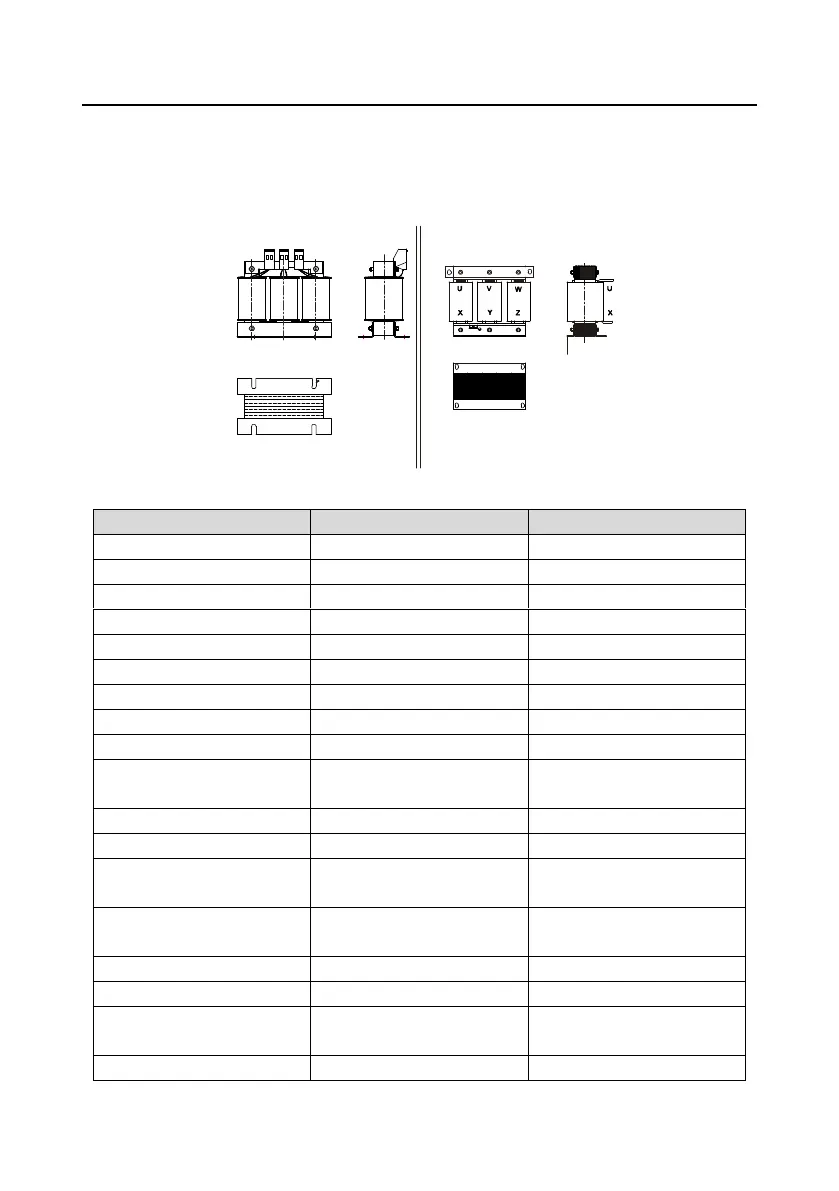

Input reactor Output ractor
Table D-5 Reactor model selection for AC 3PH 380V VFDs
VFD model
Input reactor
Output reactor
GD270-1R5-4(-C2)
ACL2-1R5-4
OCL2-1R5-4
GD270-2R2-4(-C2)
ACL2-2R2-4
OCL2-2R2-4
GD270-004-4(-C2)
ACL2-004-4
OCL2-004-4
GD270-5R5-4(-C2)
ACL2-5R5-4
OCL2-5R5-4
GD270-7R5-4(-C2)
ACL2-011-4
OCL2-7R5-4
GD270-011-4(-L1/-C2)
ACL2-015-4
OCL2-011-4
GD270-015-4(-L1/-C2)
ACL2-018-4
OCL2-015-4
GD270-018-4(-L1/-C2)
ACL2-018-4
OCL2-018-4
GD270-022-4(-L1/-C2)
ACL2-022-4
OCL2-022-4
GD270-030-4(-L1)(-C3)
ACL2-037-4
(ACL2-022-4)
OCL2-037-4
GD270-037-4(-L1)(-C3)
ACL2-037-4
OCL2-037-4
GD270-045-4(-L1)(-C3)
ACL2-045-4
OCL2-045-4
GD270-055-4(-L1)(-C3)
ACL2-055-4
(ACL2-045-4)
OCL2-055-4
GD270-075-4(-L1)(-C3)
ACL2-075-4
(ACL2-055-4)
OCL2-075-4
GD270-090-4(-L1)(-C3)
ACL2-075-4
OCL2-110-4
GD270-110-4(-L1)(-C3)
ACL2-110-4
OCL2-110-4
GD270-132-4(-L1)(-C3)
ACL2-160-4
(ACL2-110-4)
OCL2-132-4
GD270-160-4(-L1)
ACL2-160-4
OCL2-200-4
