INVT Goodrive270 Series

Goodrive270 series VFD for fan and pump Installation guidelines
-30-

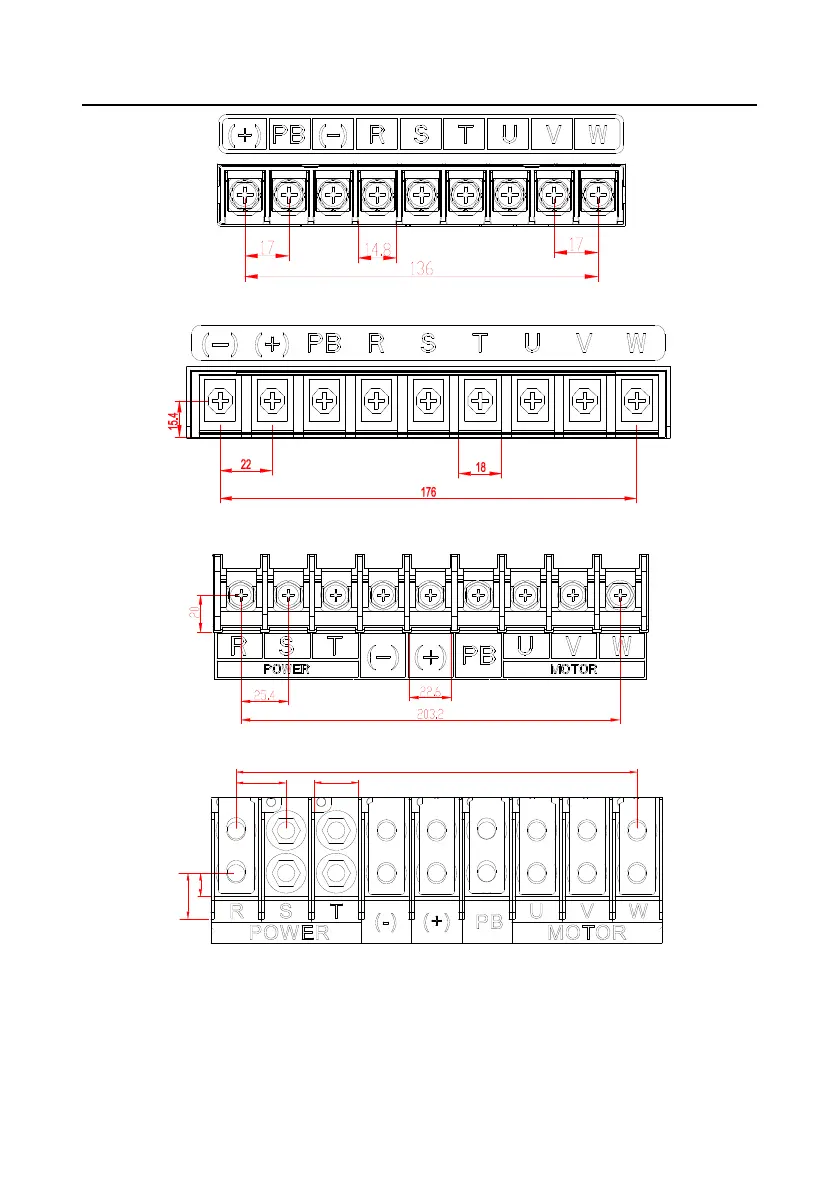

Figure 4-23 Main circuit terminal for 3PH 380V 30–37kW (unit: mm)
Figure 4-24 Main circuit terminal for 3PH 380V 45kW (unit: mm)
Figure 4-25 Main circuit terminal for 3PH 380V 55–90kW (unit: mm)
32
16.3
35
31
280
Figure 4-26 Main circuit terminal for 3PH 380V 110–132kW (unit: mm)
