INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Basic operation guidelines
-42-

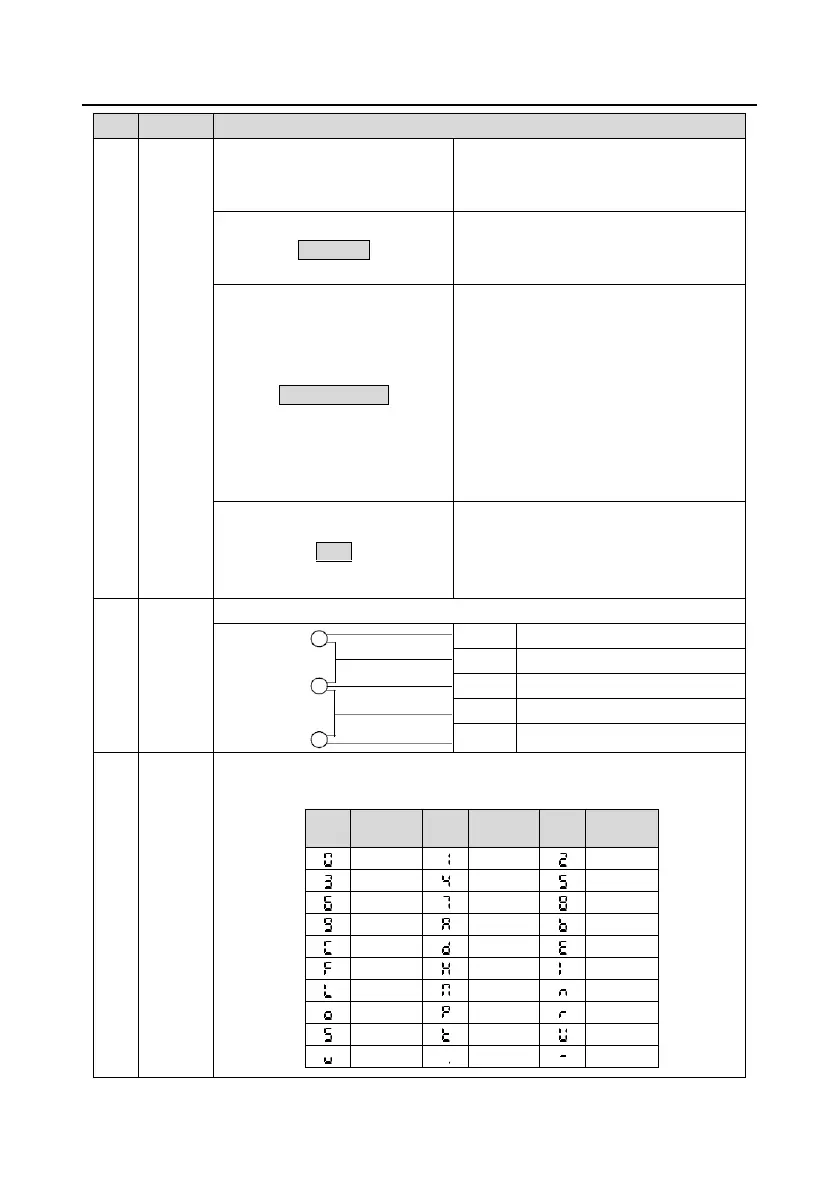

No.
Name
Description
Blinking: The VFD is autotuning
parameters.
On: The VFD is running.
FWD/REV
Forward or reverse running indicator.
LED off: The VFD is running forward.
LED on: The VFD is running reversely.
LOCAL/REMOT
Indicates whether the VFD is controlled
through the keypad, terminals, or
communication.
Off: The VFD is controlled through the
keypad.
Blinking: The VFD is controlled through
terminals.
On: The VFD is controlled through remote
communication.
TRIP
Fault indicator;
LED off: in normal state
LED blinking: in pre-alarm state
LED on: in fault state
2
Unit
indicator
Unit displayed currently
Hz
Frequency unit
RPM
Rotation speed unit
A
Current unit
%
Percentage
V
Voltage unit
3
Digital
display
zone
Five-digit LED displays various monitoring data and alarm codes such as the
frequency setting and output frequency.
0
3
6
9
C
F
L
O
S
v
1
4
7
A
d
H
N
P
t
.
2
5
8
b
E
l
n
r
U
-
Display Display Display MeansMeans Means
