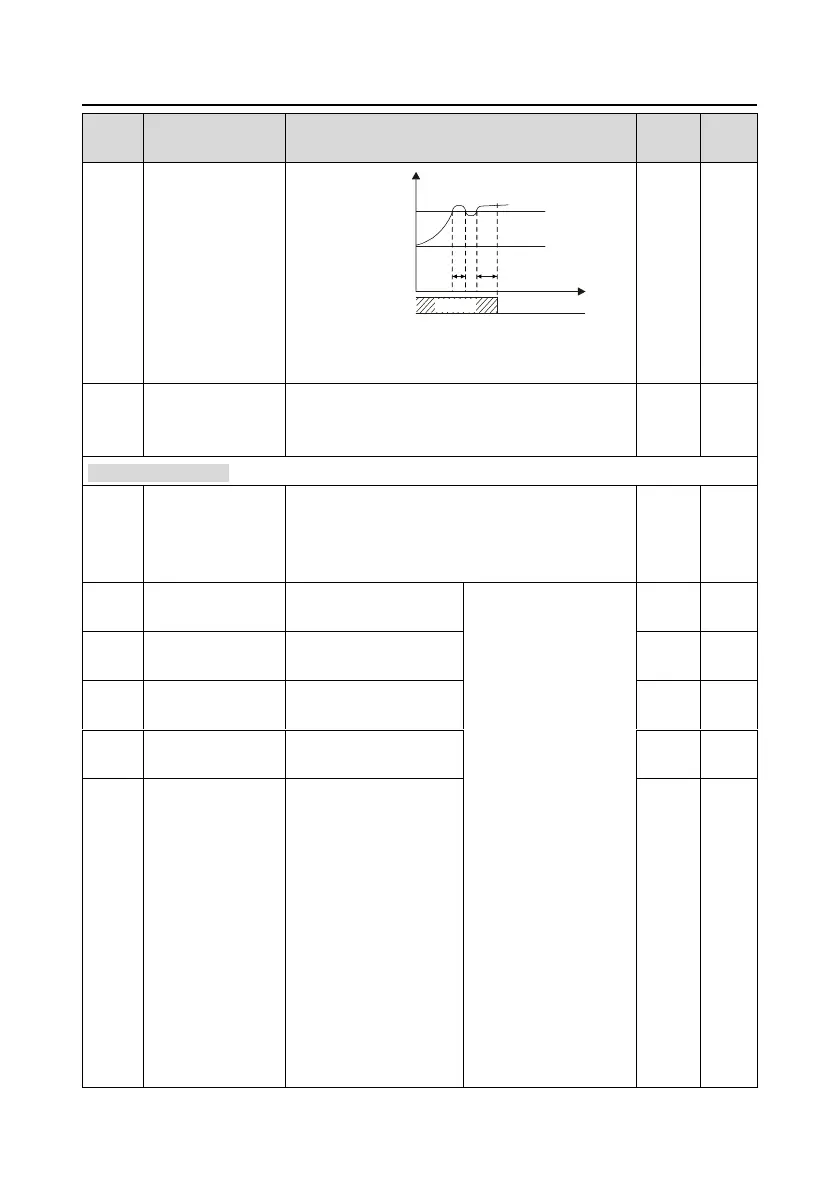

INVT Goodrive35 Series User Manual

Goodrive35 Series Closed-loop Vector Control VFD Function parameters
107
Functio
n code
Name
Detailed instruction of parameters
Default
value
Modif
y
Speed
Actual detection
value
Set detection
value
Time t
t1
t2
t2=P11.15
T1<t2, so the VFD continues running
dEu
Running Fault output
Setting range: 0.0–10.0s
P11.16
Open loop vector
and VF 0 Hz output
0: Invalid
1: Valid; ensure rated output torque when voltage
drop
0
○
P12 Group Motor 2
P12.00
Motor type 2
0: AM
1: SM
Note: Switch the current motor by the switching
channel of P08.31.
0
◎
P12.01
Rated power of AM 2
0.1–3000.0 kW
Set the parameter of the
controlled AM.
In order to ensure the
controlling performance,
set the P12.01–P12.05
according to the name
plate of the AM.
Goodrive35 series
VFDs provide the
function of parameter
autotuning. Correct
parameter autotuning
comes from the correct
setting of the motor
name plate.
In order to ensure the
controlling performance,
please configure the
motor according to the
standard principles, if
the gap between the
Depend
on model
◎
P12.02
Rated frequency of
AM 2
0.01 Hz–P00.03 (max.
output frequency)
50.00
Hz
◎
P12.03
Rated speed of AM 2
1–36000 rpm
Depend
on model
◎
P12.04
Rated voltage of AM
2
0–1200 V
Depend
on model
◎
P12.05
Rated current of AM
2
0.8–6000.0 A
Depend
on model
◎
