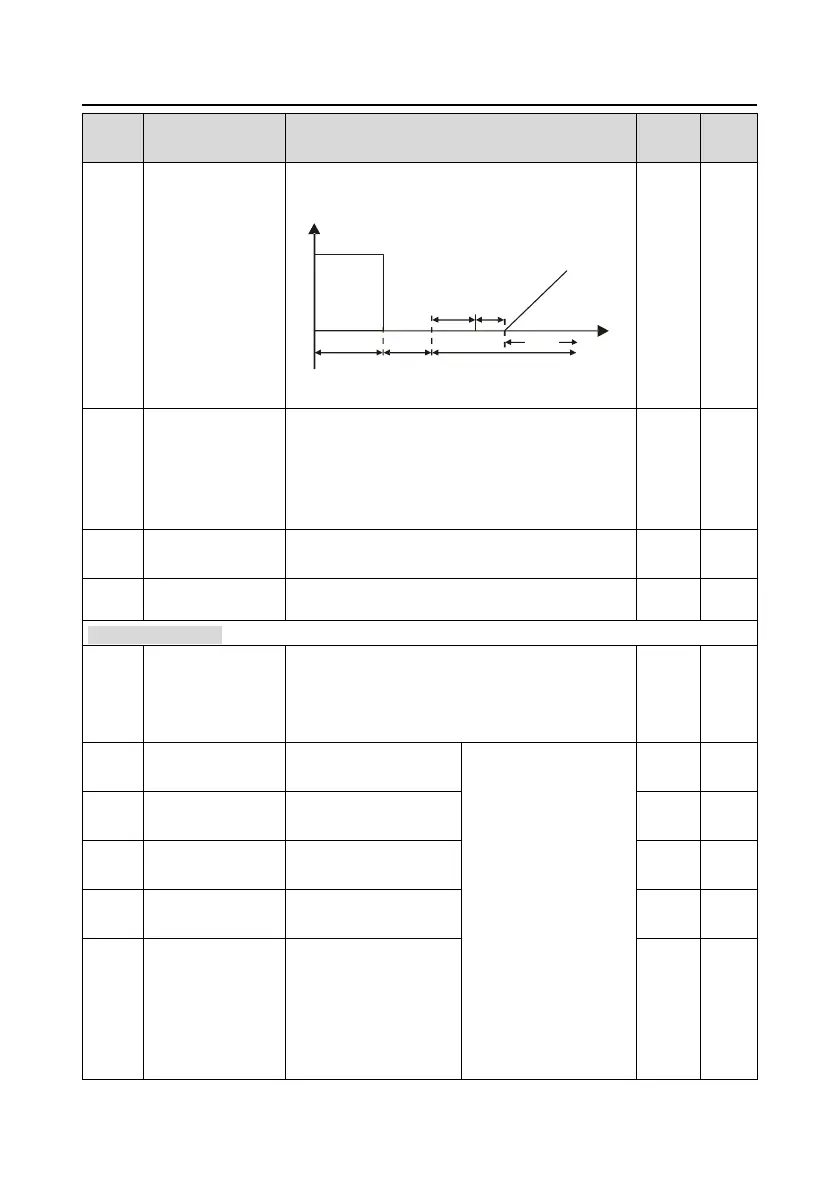

INVT Goodrive35 Series User Manual

Goodrive35 Series Closed-loop Vector Control VFD Function parameters
58
Functio
n code
Name
Detailed instruction of parameters
Default
value
Modif
y
restart after power
off
automatic running of the VFD when powering off and
then powering on.
Output frequency f
Running
Power off Power on
Running
Time t
t1 t2
t1=P01.22
t2=P01.23
Setting range: 0.0–3600.0 s (valid when P01.21=1)
P01.23
Start delay time
The function determines the brake release after the
running command is given, and the VFD is in a
stand-by state and wait for the delay time set by
P01.23
Setting range: 0.00–60.00 s
0.00 s
○
P01.24
Delay time of the
stop speed
Setting range: 0.0–60.0 s
0.0 s
○
P01.25
DEC time of E-stop
DEC time of E-stop (terminal function is set to 56).
Setting range: 0.00–60.00 s
2.00 s
○
P02 Group Motor 1
P02.00
Motor type 1
0: AM
1: SM
Note: Switch the current motor by the switching
channel of P08.31.
0
◎
P02.01
Rated power of AM 1
0.1–3000.0 kW
Set the parameters of the
controlled AM.
In order to ensure control
performance, set the
value of P02.01–P02.05
based on the nameplate
parameters.
Goodrive35 series VFD
provides parameter
autotuning function. The
accurate parameter
autotuning requires
proper parameter setup.
In order to ensure control
Depend
on model
◎
P02.02
Rated frequency of
AM 1
0.01 Hz–P00.03 (max.
output frequency)
50.00
Hz
◎
P02.03
Rated speed of AM 1
1–36000rpm
Depend
on model
◎
P02.04
Rated voltage of AM
1
0–1200 V
Depend
on model
◎
P02.05
Rated current of AM
1
0.8–6000.0A
Depend
on model
◎
