Inxpect SRE 200 Series| Instruction manual v1.5 DEC 2023 |Inxpect SAF-IM-200S_5m_7_00047_en_v1.5|© 2021-2023 Inxpect SpA
11. Technical references
11.1.4 Control unit features
Outputs Configurable as follows:
l
4 Output Signal Switching Devices
(OSSDs) (used as single channels)
l
2 dual channel safety outputs
l
1 dual channel safety output and 2
Output Signal Switching Devices
(OSSDs)
OSSD
characteristic
l
Maximum resistive load: 100 KΩ
l
Minimum resistive load:70 Ω
l
Maximum capacitive load: 1000 nF
l
Minimum capacitive load:10 nF
Safety outputs High-side outputs (with extended
protection function)
l
Maximum current: 0.4 A
l
Maximum power: 11.2 W
The OSSDs provide what follows:
l
ON-state:from Uv-1V to Uv (Uv = 24V
+/- 4V)
l
OFF-state:from 0 V to 2.5 V r.m.s.
Inputs Configurable as follows:
l
4 single channel (cat. 2) type 3 digital
inputs with common GND
l
2 dual channel (cat. 3) type 3 digital
inputs with common GND
l
1 dual channel (cat. 3) and 2 single
channels (cat. 2) type 3 digital inputs
with common GND
See "Voltage and current limits for digital
inputs" on page110.
Fieldbus
interface (if
available)
Ethernet based interface with different
standard Fieldbus (e.g., PROFIsafe, FSoE)
Power supply 24 V DC (20–28 V DC) *
Maximum current: 1 A
Consumption Max. 5 W
Assembly On DIN rail
Weight For Type A: with cover: 170 g (6 oz)
For Type B: with cover: 160 g (5.7 oz)
Degree of
protection
IP20
Terminals Section: 1 mm
2
(16 AWG) max.
Maximum current: 4 A with 1 mm
2
cables
(16 AWG)
Impact test For Type A: 0.5 J, 0.25 kg ball from a 20
cm height
For Type B: 1 J, 0.25 kg ball from a 40 cm
height
Shock/Bump For Type A: in accordance with IEC/EN
61496-1:2013 sec. 5.4.4.2 (IEC 60068-2-
27)
For Type B: in accordance with IEC/EN
61496-1:2020 sec. 5.4.4.2 class 5M3 (IEC
60068-2-27)
Vibration For Type A: in accordance with IEC/EN
61496-1:2013 sec. 5.4.4.1 (IEC 60068-2-
6)
For Type B: in accordance with IEC/EN
61496-1:2020 sec. 5.4.4.1 class 5M3 (IEC
60068-2-6 and IEC 60068-2-64)
Pollution degree 2
Outdoor use No
Operating
temperature
From -30 to +60 °C (from -22 to +140 °F)
Storage
temperature
From -40 to +80 °C (from -40 to +176 °F)
Note*: the unit shall be supplied by an isolated
power source which fulfils the requirements of:
l
Limited-Energy Circuit in accordance with
IEC/UL/CSA 61010-1/ IEC/UL/CSA 61010-2-201
or
l
Limited Power Source (LPS) in accordance with
IEC/UL/CSA 60950-1 or
l
(For North America and/or Canada only) a Class 2
supply source which complies with the National
Electrical Code (NEC), NFPA 70, Clause 725.121
and Canadian Electrical Code (CEC), Part I, C22.1.
(typical examples are a Class 2 transformer or a
Class 2 power sources in compliance with, UL
5085-3/ CSA-C22.2 No. 66.3 or UL 1310/CSA-
C22.2 No. 223).

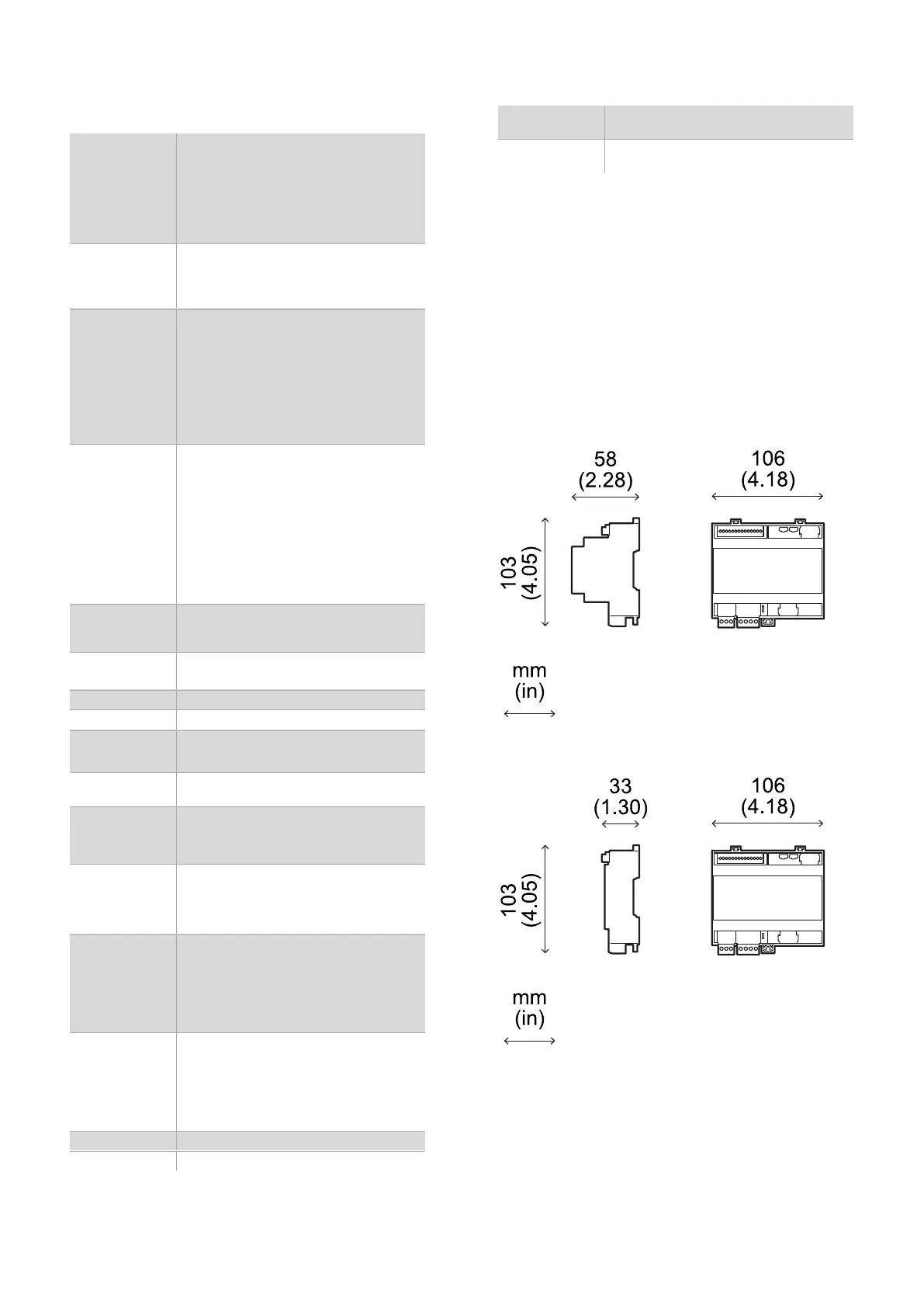

Type A
Type B
