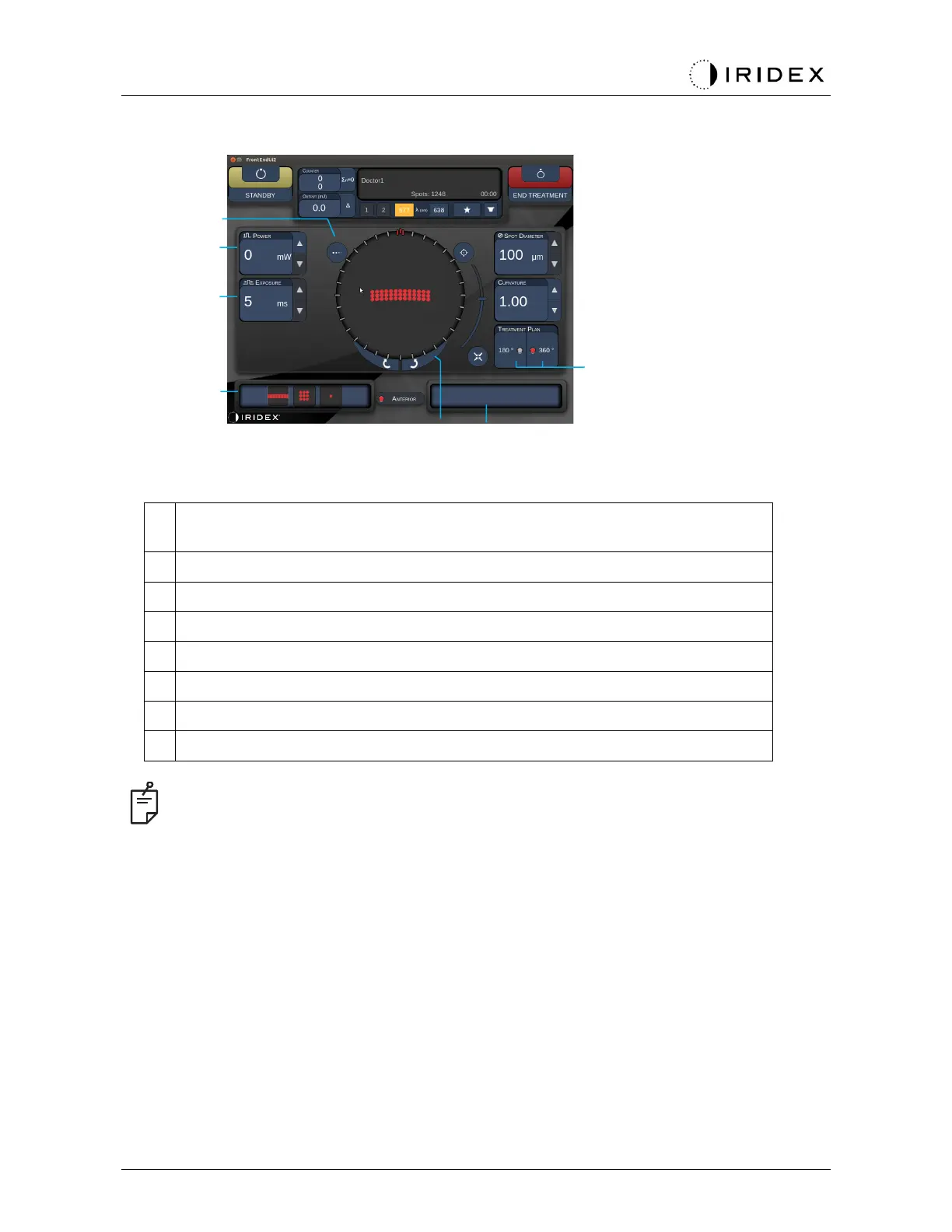

Style 1.0
A
<Titrate> - press to switch to single spot to perform test burns, adjustable up
to 4 spots; press again to revert to prior laser mode
B
<Power> - press up/down buttons to adjust
C
<Exposure> - press up/down buttons to adjust
D
Primary Pattern - press to select pattern type
E
<Treatment Plan> - press to toggle between 180°%/360°%(when applicable)
F
<Rotate> - press to rotate or advance pattern (when applicable)
G
Secondary Pattern - press to select pattern subset (when applicable)
H
<Center> - press to position the beam to optical center of the treatment
NOTE
• Center Button requires the micro manipulator is not being used
