Quick Reference
No. Name Description
5 Ip meter value Displays the Meter value of the maximum cur-
rent peak value.
6 PF meter value Displays the Meter value of the power factor.

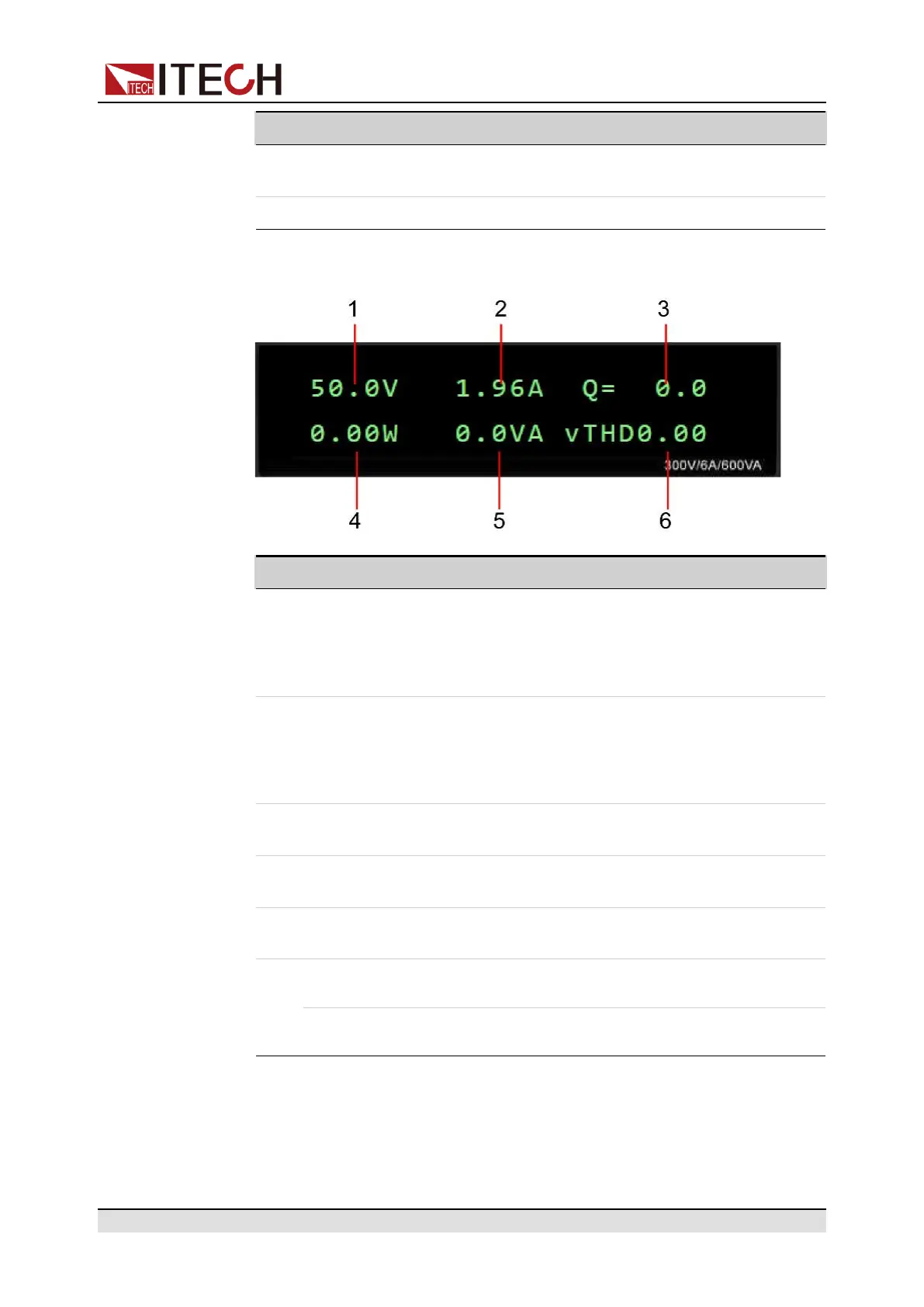

• Under the AC mode, the AC main interface 2 is displayed as follows:
No. Name Description
1 Vac set value
/Vrms meter value
• When output is Off, the AC voltage set-
ting value is displayed.
• When output is On, the Meter value of
voltage effective value is displayed.
2 OCPrms set value
/Irms meter value
• When output is Off, the OCPrms setting
value is displayed.
• When output is On, the Meter value of
current effective value is displayed.
3 Q meter value Displays the Meter value of the reactive
power.
4 P meter value Displays the Meter value of the active
power.
5 S meter value Displays the Meter value of the apparent
power.
6 vTHD meter value Displays the Meter value of the total voltage
harmonic distortion.
iTHD meter value Displays the Meter value of the total current
harmonic distortion.
