Inspection and Installation

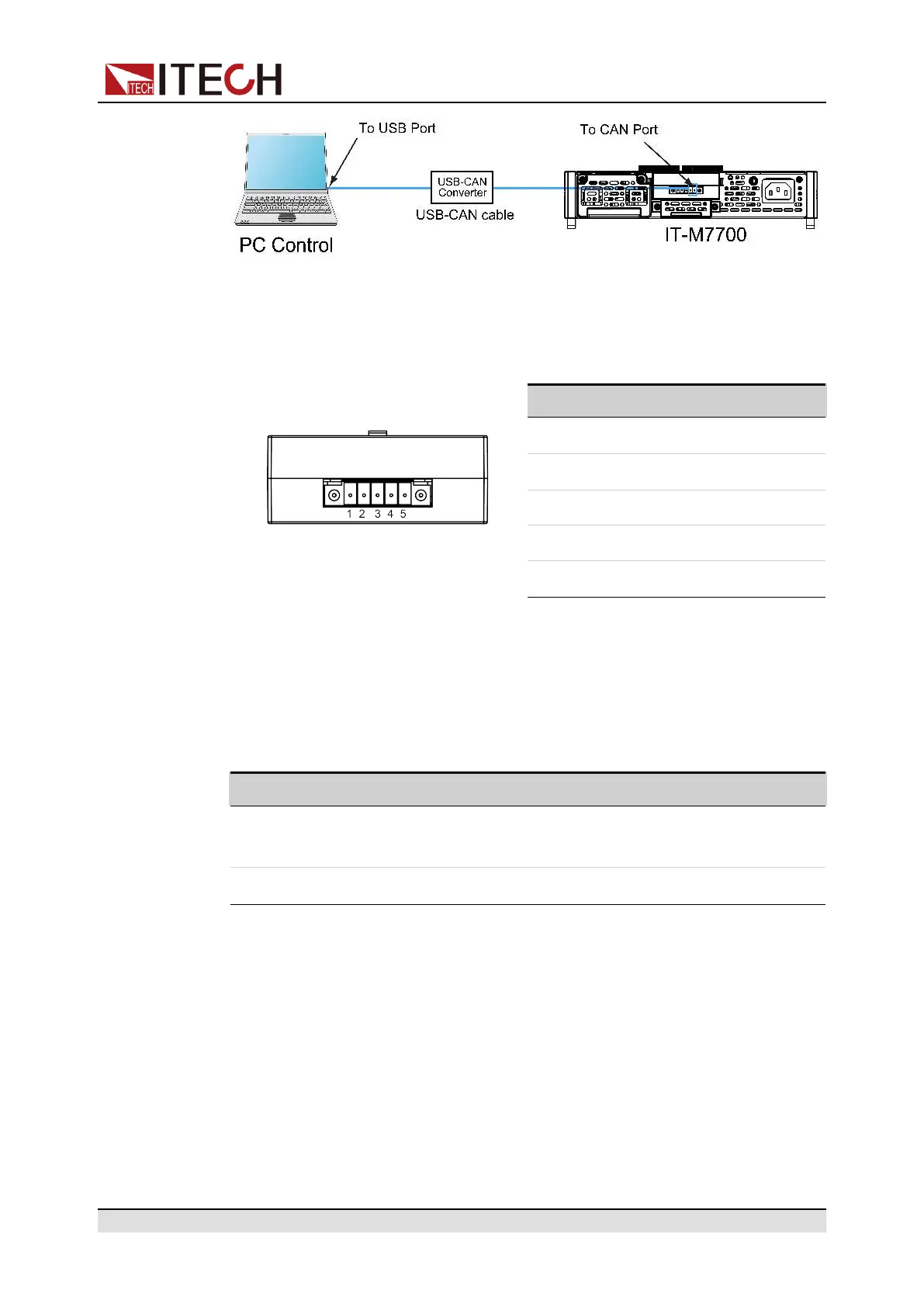

Definition of CAN Pins
The definition of CAN pins are as follows.
Pins Description
IT-E1207
1 TXD, transmit data
2 RXD, receive data
3 GND
4 CAN_H
5 CAN_L
CAN Configuration
The user needs to configure the CAN interface parameters in the system menu
before using the remote control. The CAN interface parameters are as follows.
Name Description
Baud rate Select the baud rate from the following options:
125k, 250k, 500k.
Instrument Address Range: 1 to 127.
The operation steps are as follows.
1. Press the composite keys [Shift] + [DC](System) to enter into the system
menu interface.
2. Rotate the knob to select I/O Config and press [Enter] key to confirm.
3. Rotate the knob to select CAN and press [Enter] key to confirm.
4. Rotate the knob to select I/O Advance Config and press [Enter] key to en-
ter the CAN Advancing Setting interface.
5. Rotate the knob to select Can Address and press [Enter] key. After setting
the communication address, press [Enter] key to confirm.
Copyright © Itech Electronic Co., Ltd.
40
