System-Related Functions
Copyright ©ITECH Electronic Co., Ltd. 117

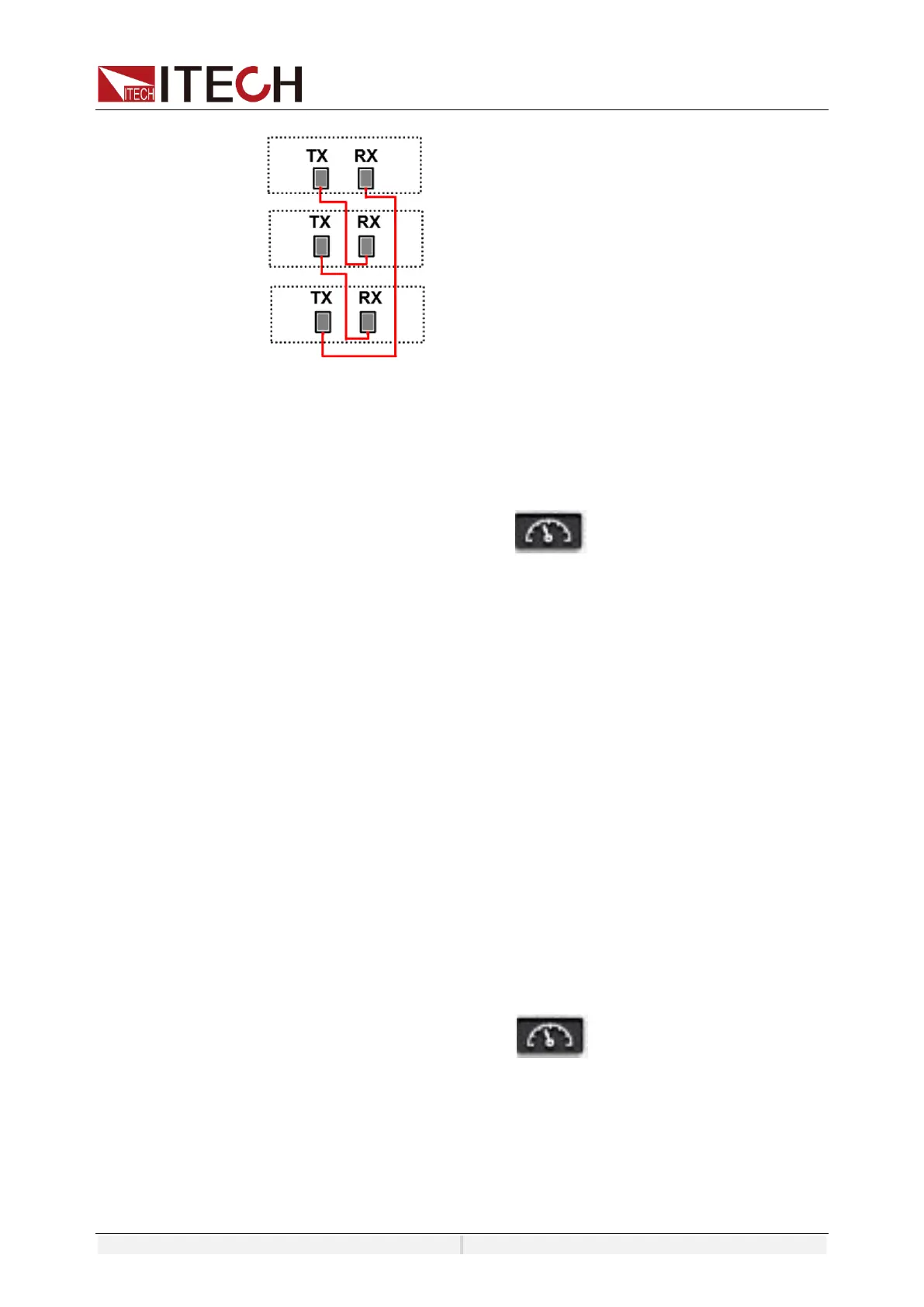

Set the Parallel Mode
1. Turn on the main switch of the AC distribution box and power on each of the
three units.
2. Set three units in parallel mode with one master and two slaves.
3. Press the composite keys [Shift]+ (System) on the front panel to
enter the system menu.
4. Select General menu.
5. Set the Parallel Mode, set them to one master unit and two slave units. In
each group, one instrument must be the master unit and all other instruments
connected in parallel are slave units. All features are set up from the master
unit.
⚫ Single: Default value, indicates that the instrument is in single mode.
⚫ Master: Indicates that the single unit is set to master in parallel mode.
Numbers: total number of units in the parallel relationship, when the
instrument set to master, you need to set the Numbers. For example,
Numbers set to 3.
⚫ Slave: Indicates that the instrument is set to the slave in parallel mode.
6. After the parallel menu of the three units are set, restart the instrument
separately.
After the instrument is restarted, the screen shows that the instrument is
working in parallel mode.
Revert to Single Mode
1. Set each of the three instruments to single mode.
a) Press the composite keys [Shift]+ (System) on the front panel to
enter the system menu.
b) Select General menu.
c) Set the Parallel Mode, set them to single.
2. Power off the three instruments and turn off the main switch of the AC
distribution box.
3. Remove the cables connection of the System Bus and output terminals
To Next Page
