JA-101K(-LAN)(-LAN3G) and JA-106K(-3G)
Security System Control Panels 17 / 110 MLJ51410
The variant with “R” is supplemented by a radio module (JA-11xR) for radio communication with wireless
devices.
All the variants of control panels can be equipped with the JA-190X supplementary PSTN telephone
communicator to be connected to an analogue land line (e.g. PSTN) or to simulated telephone lines.
Can be used for the usual event reporting and it also serves as a backup communicator if the previously
mentioned communicators indicate faults.

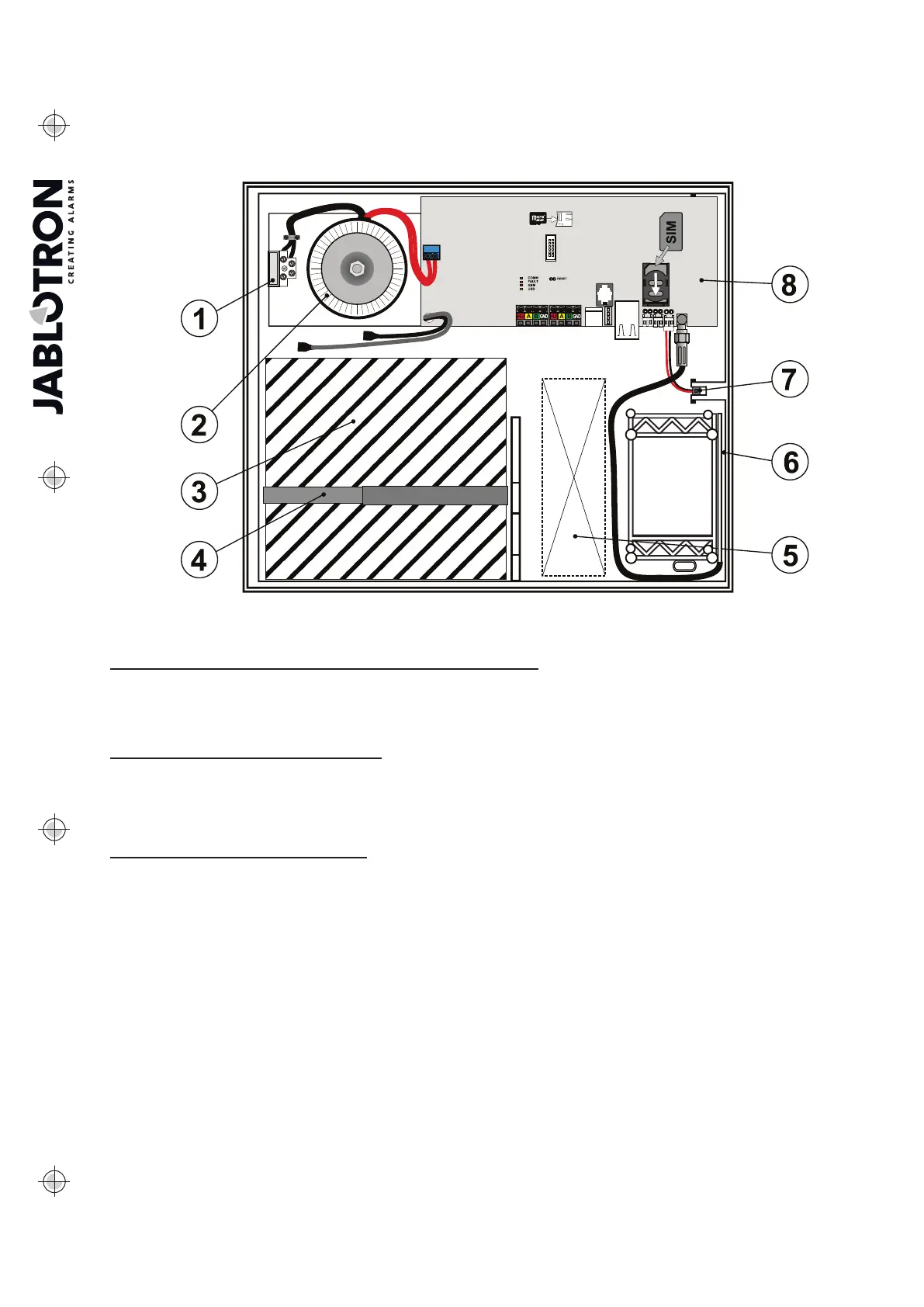

1 - Mains power terminals, 400 mA fuse; 2 - Transformer; 3 – Back-up battery; 4 - Attachment strap of the back-up battery;
5 - cabling space; 6 - GSM antenna; 7 - Panel lid tamper pins. Including spare tamper pins; 8 - Control panel PCB
Parts of the JA-101K control panel (changeable parts) are:
MicroSD card 4GB or higher
The JA-11xR radio module (with the JA-106KR version only)
To extend control panel options use:
The JA-11xR radio module
The JA-190X PSTN communicator
The SA-214/7Ah or SA-214/18Ah back-up battery
Control panel accessories include:
1pc USB cable (180 cm)
1pc RFID authorisation and access card
1pc GSM antenna installed in the control panel
1pc Rear tamper contact
1pc Extension USB cable (20 cm) installed in the control panel
1pc Fuse T 0.4 A; 250 V (meant to protect 230 V circuit)
4pcs Warning stickers
4pcs Fasteners 8 mm
4pcs Screws 40 mm
2pcs Ties 100 mm
Drilling template A3
CZ / EN Installation manual (short version)
