*It is recommended to use multiple keypads always near the entrance door to protected premises and ensure
that the state of the system and the entered code cannot be recognized by a potential trespasser.

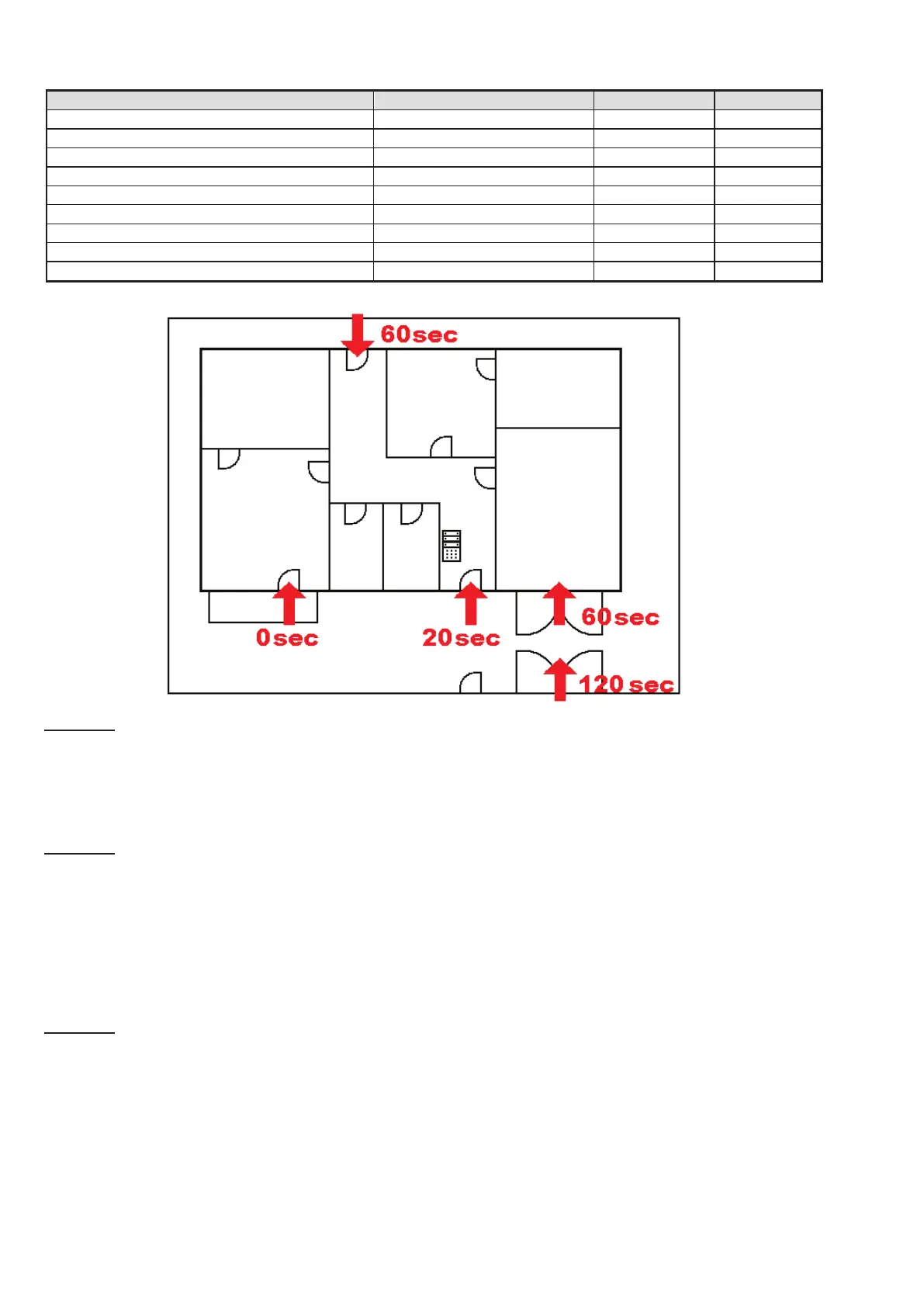

Position and name of the detector Reaction Entrance time Exit time
1.Magnetic contact – Main gate outdoors Delay C 120 sec 360 sec
2.Movement detector – Outdoor movement Delay C 120 sec 360 sec
3.Magnetic contact – Garage door Delay B 60 sec 120 sec
4.Magnetic contact – Rear door Delay B 60 sec 120 sec
5.Movement detector – PIR garage Next delay (Delay B) 60 sec 120 sec
6.Magnetic contact – Main door Delay A 20 sec 60 sec
7.Movement detector – PIR hall Next delay (Delay A) 20 sec 60 sec
9.Magnetic contact – Balcony door Instant 0 sec 0 sec
9.Movement detector – PIR room Instant 0 sec 0 sec
Variant 1:
 Entrance to the protected premises (system is SET) through the main door triggers Delay A (20 sec)
and the system starts counting time for unsetting the system.
 Entering a valid code on the keypad and pressing the green button on the keypad segment is a system
unset. When authorisation and unsetting of the system is not performed during the entrance delay then
an alarm from the delay zone will be triggered (Delay A).
Variant 2:
 Entrance to the protected premises (system is SET) through the rear door or garage door triggers Delay
B (60 sec) and the system starts counting time for unsetting the system.
 Next-detected movement by detectors with a Delay A reaction shortens the entrance delay according
to Delay A (20 sec) if the delay is not shorter than Delay B.
 Entering a valid code on the keypad and pressing the green button on the keypad segment is a system
unset. When authorisation and unsetting of the system is not performed during the entrance delay then
an alarm from the delay zone will be triggered – from the zone in which the time expires first (Delay A,
Delay B).
Variant 3:
 Entrance to the protected premises (system is SET) by activation of any outdoor detectors (Main gate
opening, entrance gate or outdoor PIR activation) triggers the Delay C zone entrance time (120 sec)
and the system starts counting the time for unsetting the system.
 On opening the garage door and activation of a magnetic detector the system starts counting the Delay B
time (60 sec) and it shortens the time of the Delay C zone already activated (if delay C is not shorter than
Delay B).
 Going through the Main door activates the Delay A time (20 sec) and it shortens the entrance time
(if delay B or delay C are not shorter than delay A).
