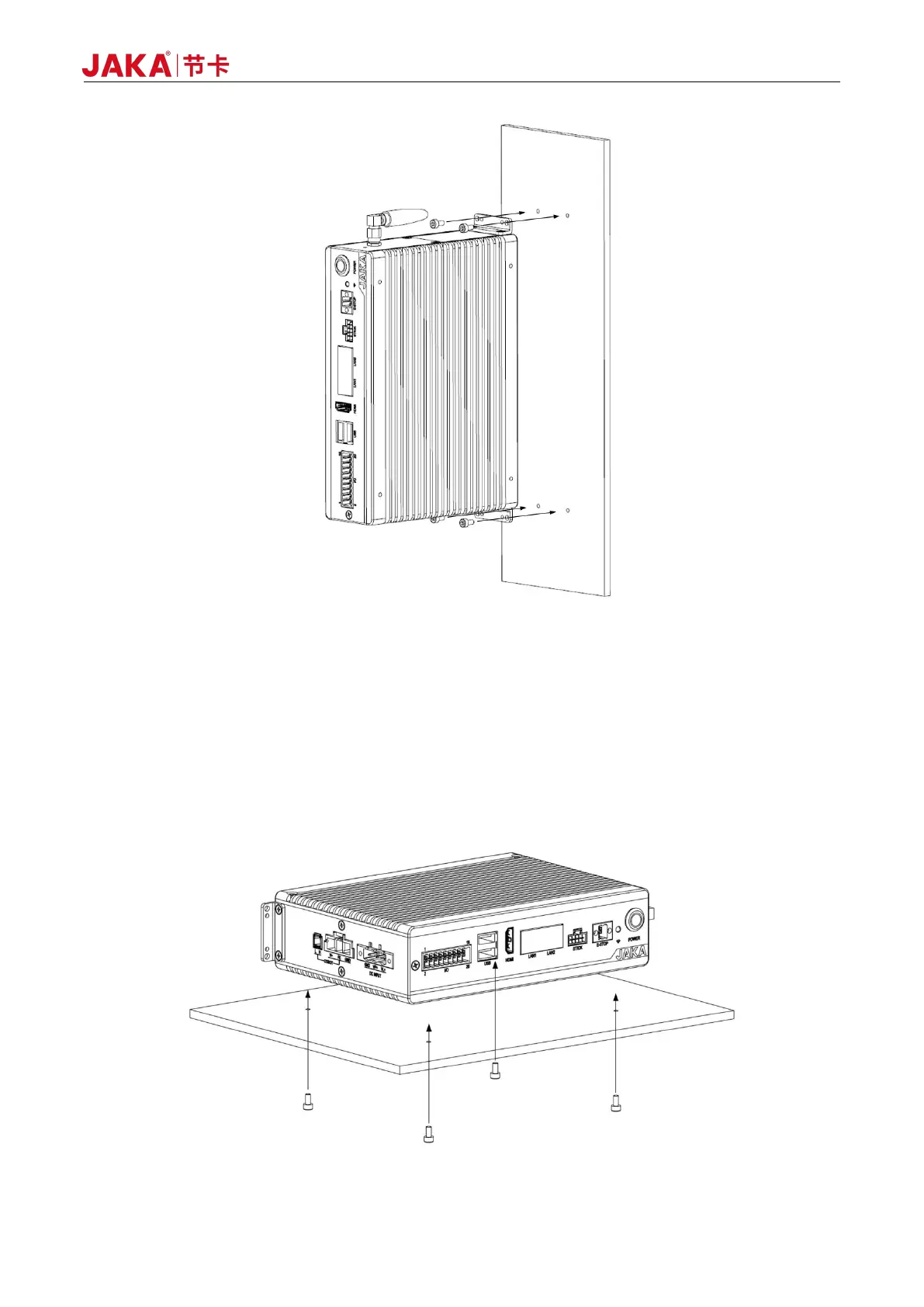

Figure 3-3 Rear Lug Mounting Diagram
The upper and lower lugs are factory default configuration, and the installation method is shown in
Figure 3-3. 4 M3 bolts shall be selected for fixing parts, and the spacing of mounting holes is shown in
Figure 3-2. When the fixed plate is a moving platform, in order to reduce the impact of moving vibration on
MiniCab, it is recommended to add a rubber gasket between the MiniCab and the fixed plate.
3.2.1.2 Base Installation
Figure 3-4 Base Installation Schematic Diagram
