JAKA Zu MiniCab v1.1
Chapter 3 Mechanical Specification
MiniCab is compact in design, featured with small size and high integration. It is mainly used in conjunction
with the JAKA products and peripheral accessories.

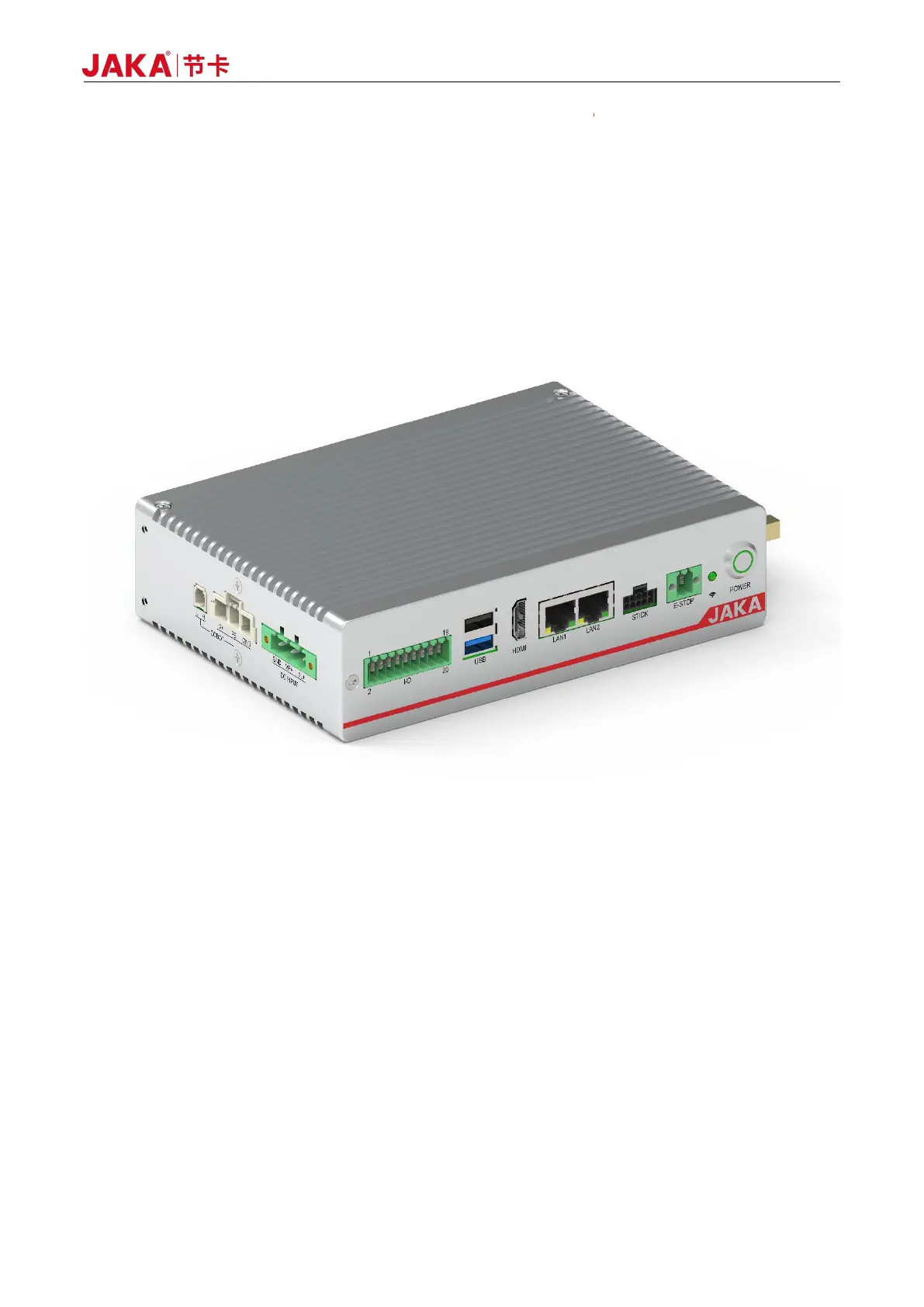

Figure 3-1 Product Appearance Rendering
3.1 Outline Dimension
The dimensions of JAKA Zu MiniCab are shown in Figure 3-2. Standard accessories include side lugs,
which support panel mounting and base mounting. At the same time, if the guide rail installation is needed, the
guide rail installation component is optional.
