Janome JR3403N-AC

Specifications
Desktop Robot JR3000

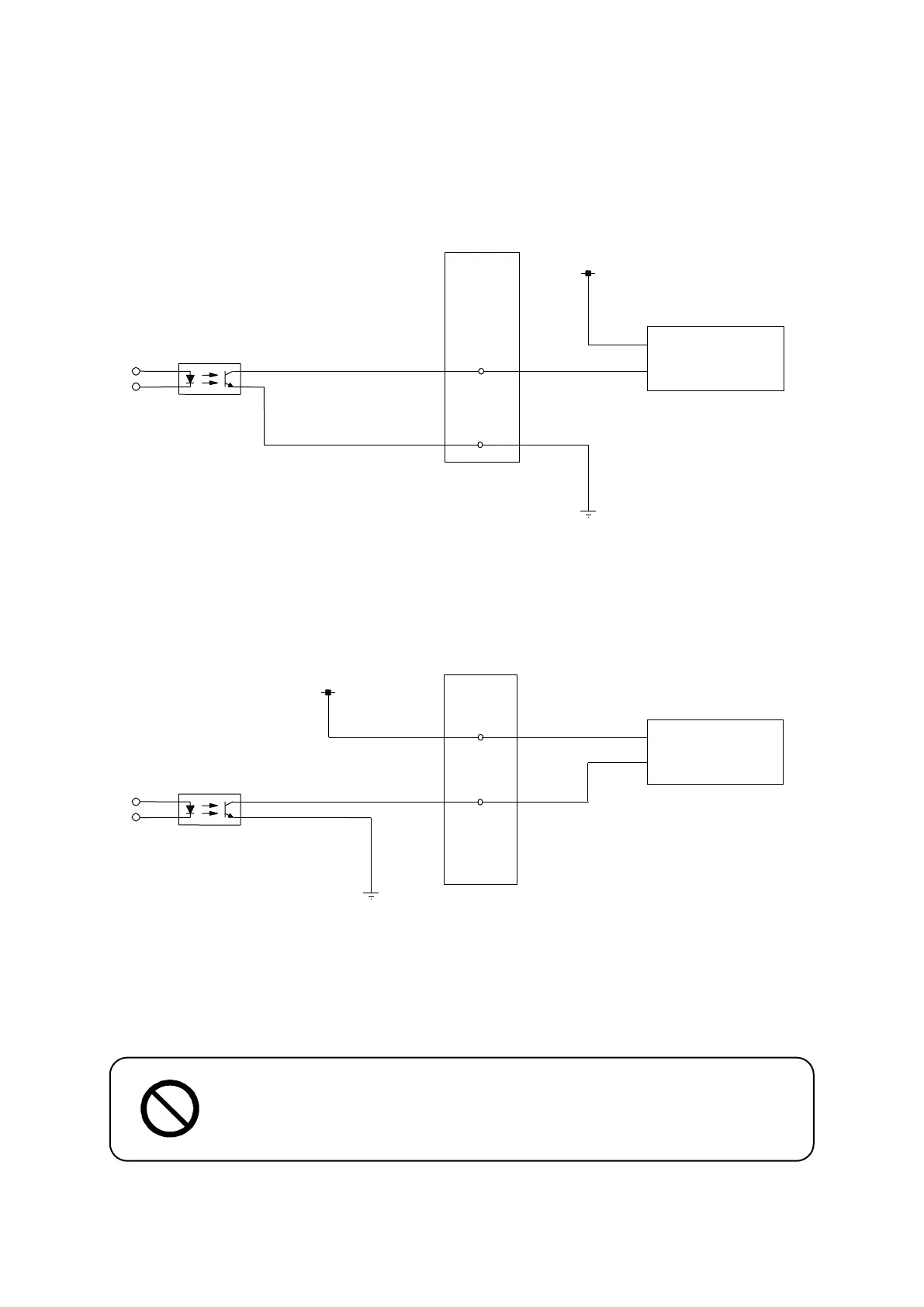

7.6 Output Signal (NPN)
 When using an external power supply
 When using an internal power supply (optional)
Assigning the wrong wiring to the I/O can damage the internal circuits.
COM-
(GND)
#sysOut1 –
#sysOut16
+
-
External
Device
External Power Supply DC24V
Internal Power Supply DC24V
COM +
(DC24V)
#sysOut1 –
#sysOut16
+
-
External
Device
53
