Janome JR3403N-AC

Specifications
Desktop Robot JR3000
COM-
(GND)
Internal Power Supply DC24V
#sysOut5 –
#sysOut8
External
Device
+
-

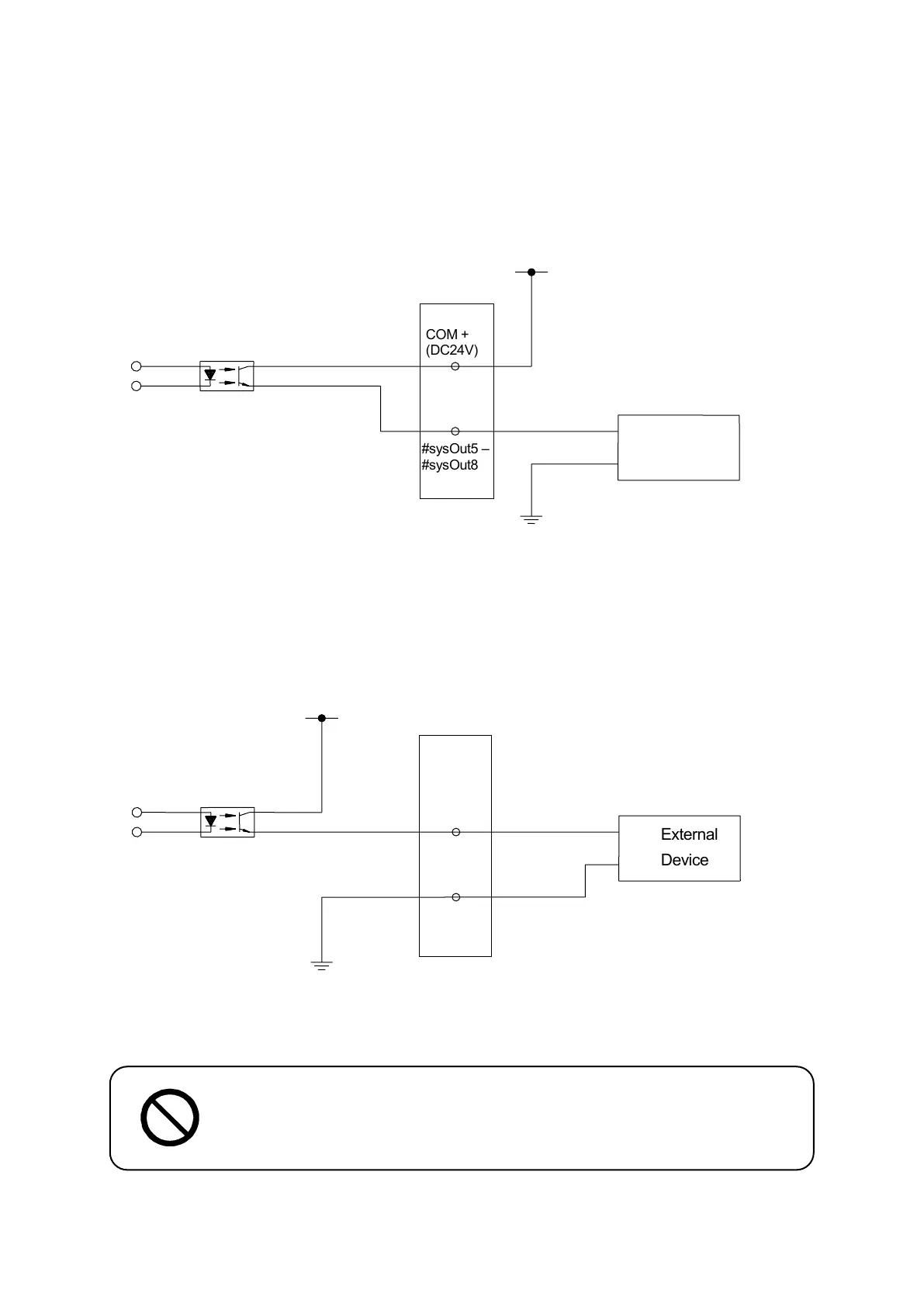

10.10 Output Signal (PNP)
 When using an external power supply
 When using the internal power supply (optional)
Assigning the wrong wiring to the I/O can damage the internal circuits.
External Power Supply DC24V
#sysOut5 –
#sysOut8
COM +
(DC24V)
+
-
External
Device
71
