Janome JR3403N-AC

Specifications
Desktop Robot JR3000

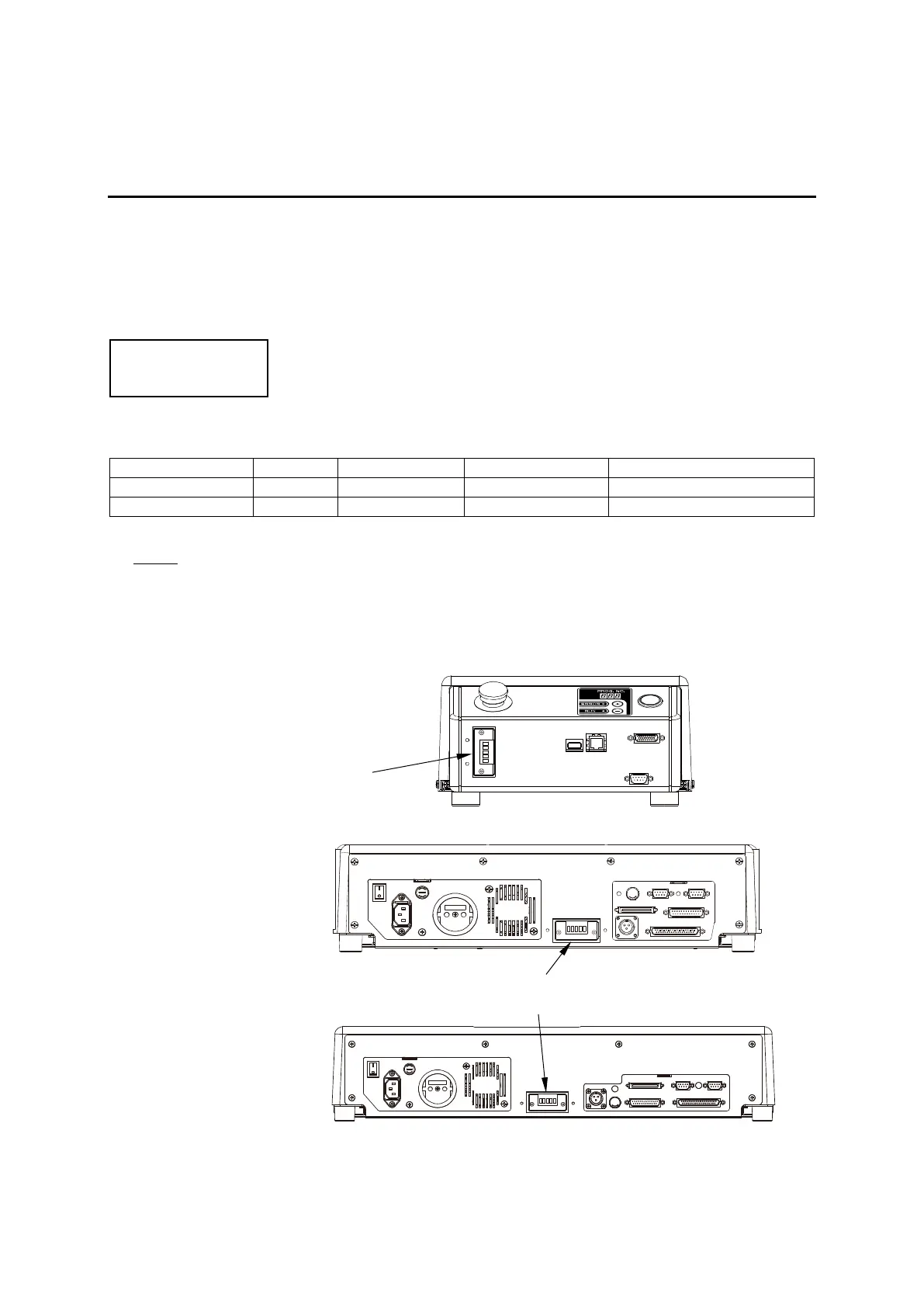

12. FIELDBUS (OPTIONAL)
Fieldbus is an optional function for the JR3000 Series. The compatible Fieldbus module types are
“DeviceNet”, “Profibus” and “CC-Link”. Make sure you make the Fieldbus settings correctly because
the connector shape and settable items differ according to the Fieldbus module type.
If using DeviceNet or CC-Link, attach the included FB cover with the two M4
screws included to prevent damage from static electricity.
For further information, please refer to “2.5 Cable Connection” in Setup.
The Fieldbus I/O memory address is as follows:
Name
I/O Score
Relay No. (hex)
Register No. (hex)
Content
Fieldbus (Input)
2048
1000 – 17FF
100 – 17F
Domain for Fieldbus input
Fieldbus (Output)
2048
1800 – 17FF
180 – 1FF
Domain for Fieldbus output
NOTE
Fieldbus (Input): read external device (PLC)/write robot
Fieldbus (output): write external device (PLC)/read robot
Fieldbus
(optional)
JR3200 Series
Fieldbus (optional)
JR3400 Series
JR3300 Series
Example: JR3203N-AC
Example: JR3303N- AC/BC
Example: JR3403N-AC/BC
Attention
77
