Janome JR3403N-AC

Specifications
Desktop Robot JR3000
15.2 Pin Nos. (Robot Side)

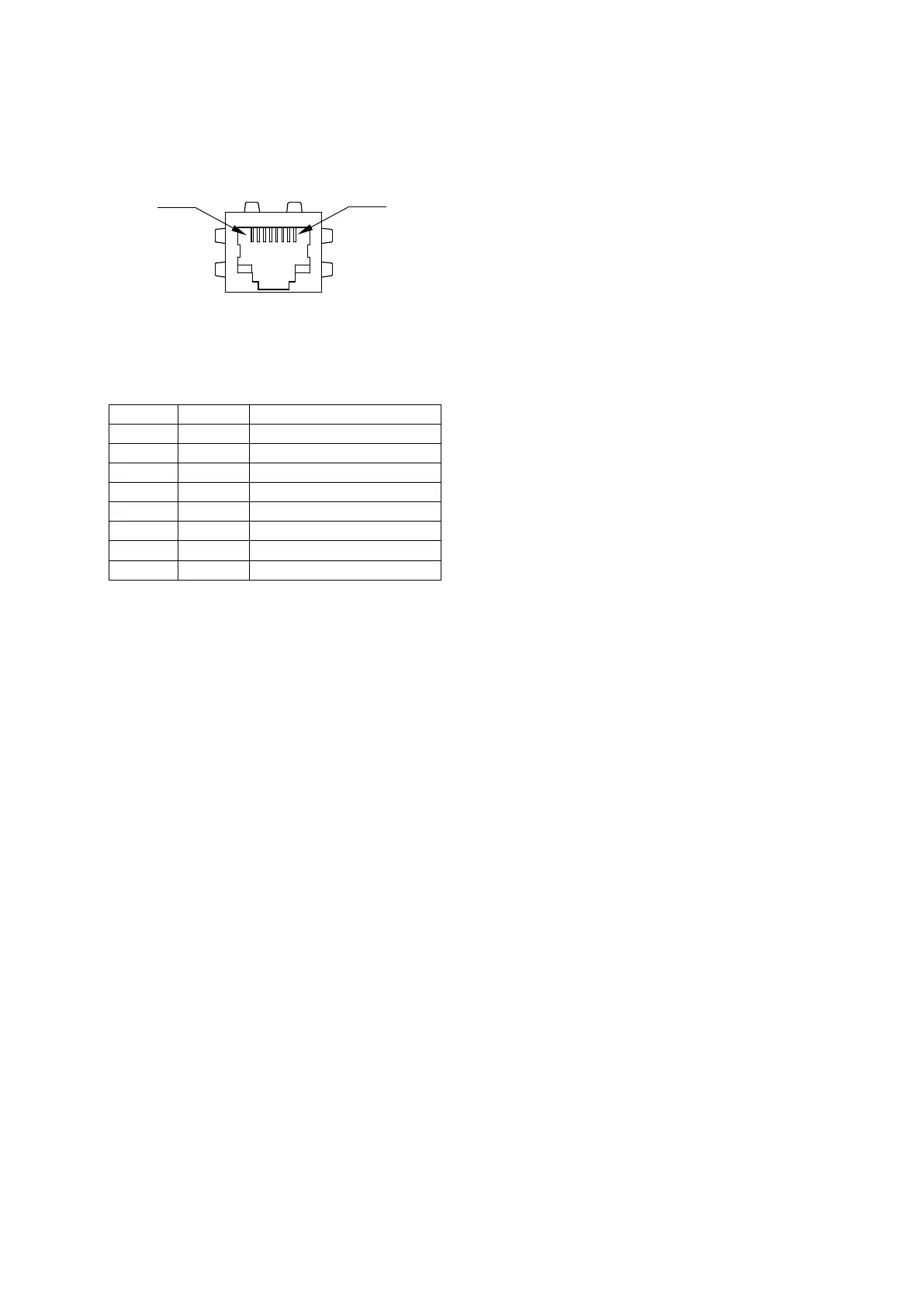

LAN Port Pin Assignment
Pin No.
Name
Function
1
TD+
Transmit signal+
2
TD-
Transmit signal-
3
RD+
Receive signal+
4
NC
Not connected
5
NC
Not connected
6
RD-
Receive signal-
7
NC
Not connected
8
NC
Not connected
8
1
97
