Desktop Robot JR3000
12.2 DeviceNet

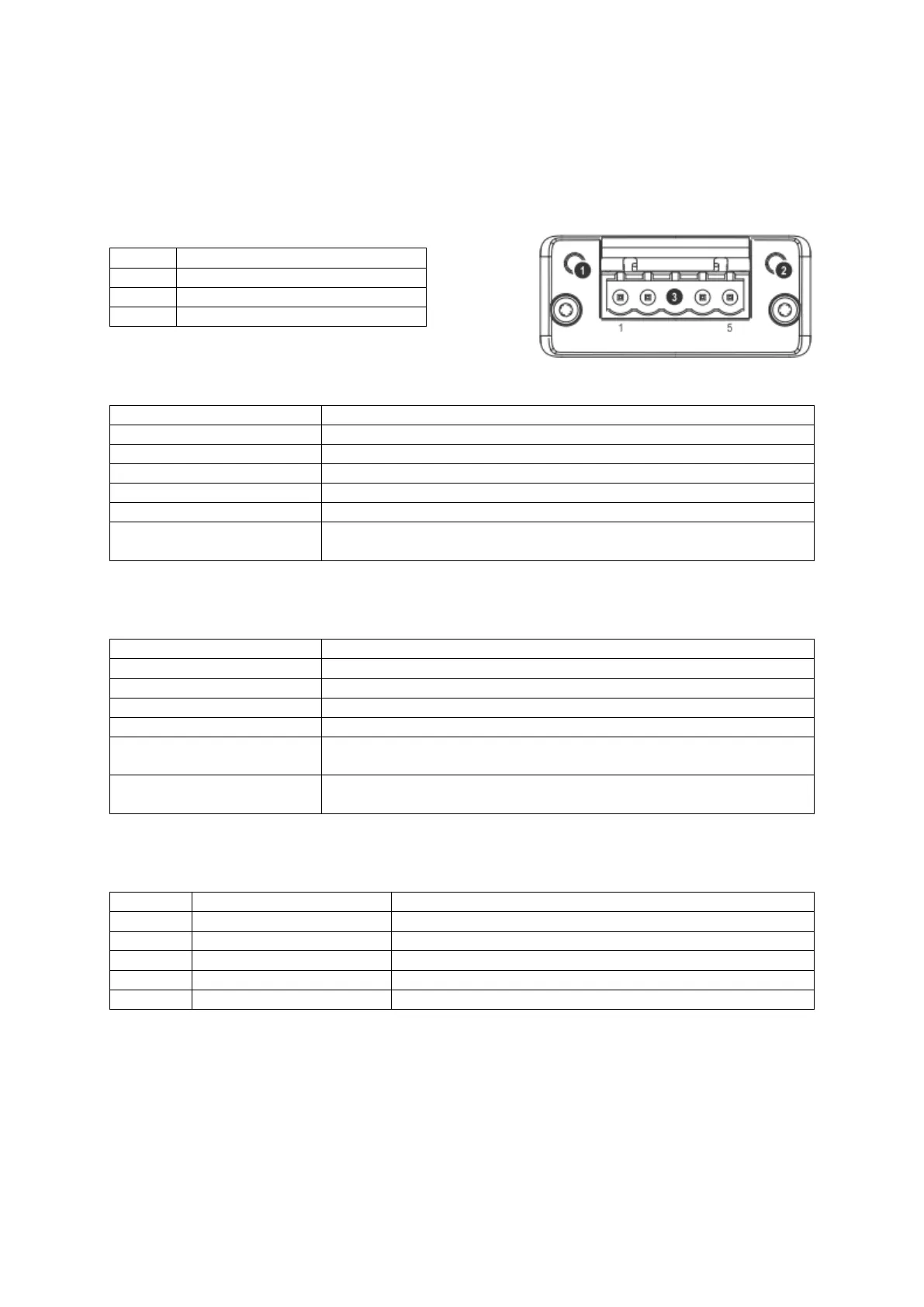

12.2.1 Connector Diagram
This module has two status LEDs and one DeviceNet connector.
#
Name
1
Network Status (NS) (LED)
2
Module Status (MS) (LED)
3
DeviceNet Connector
12.2.2 Network Status
Status
Details
OFF
Offline or not supplied with power
Green LED
Online, communication connection complete
Green LED blinking (1Hz)
Online, communication connection incomplete
Red LED
Not able to communicate
Red LED blinking (1Hz)
Communication timeout
Red and green LEDs
alternating
Self-test
12.2.3 Module Status
Status
Details
OFF
Not supplied with power
Green LED
Communicating normally
Green LED blinking (1Hz)
Settings are incorrect
Red LED
Fatal malfunction
RED LED blinking (1Hz)
Malfunction; restoration possible. May be possible to restore with
re-setup.
Red and green LEDs
alternating
Self-test
12.2.4 Connector Pin Assignment
PIN No.
Name
Function
1
V-
Bus power ground
2
CAN_L
Communication data Low (CAN busline L)
3
SHIELD
Shield ground
4
CAN_H
Communication data High (CAN busline H)
5
V+
Bus power (DC24V)
NS
MS
DeviceNet
