QUANTUM™ HD COMPRESSOR CONTROL PANEL
OPERATION
090.040-O (MAR 12)
Page 10
POP-UP SELECT UNITS BOX
If a pressure value has been entered via the numeric
keypad, which would cause confusion as to whether
the value should be in PSIG or Hg, a new pop-up box
will appear, asking the user to select the units that
they wish to have applied to the value. The selec-
tions are:
• PSIG
• Hg
The title at the very top of this pop-up gives the
name of the setpoint that is being viewed.
The grey bar that appears near the top of the box will
give the title of the box, in this case it will say Select
Units. Simply select the unit measure that you would
like to use, and the numeric keypad will replace this
box.

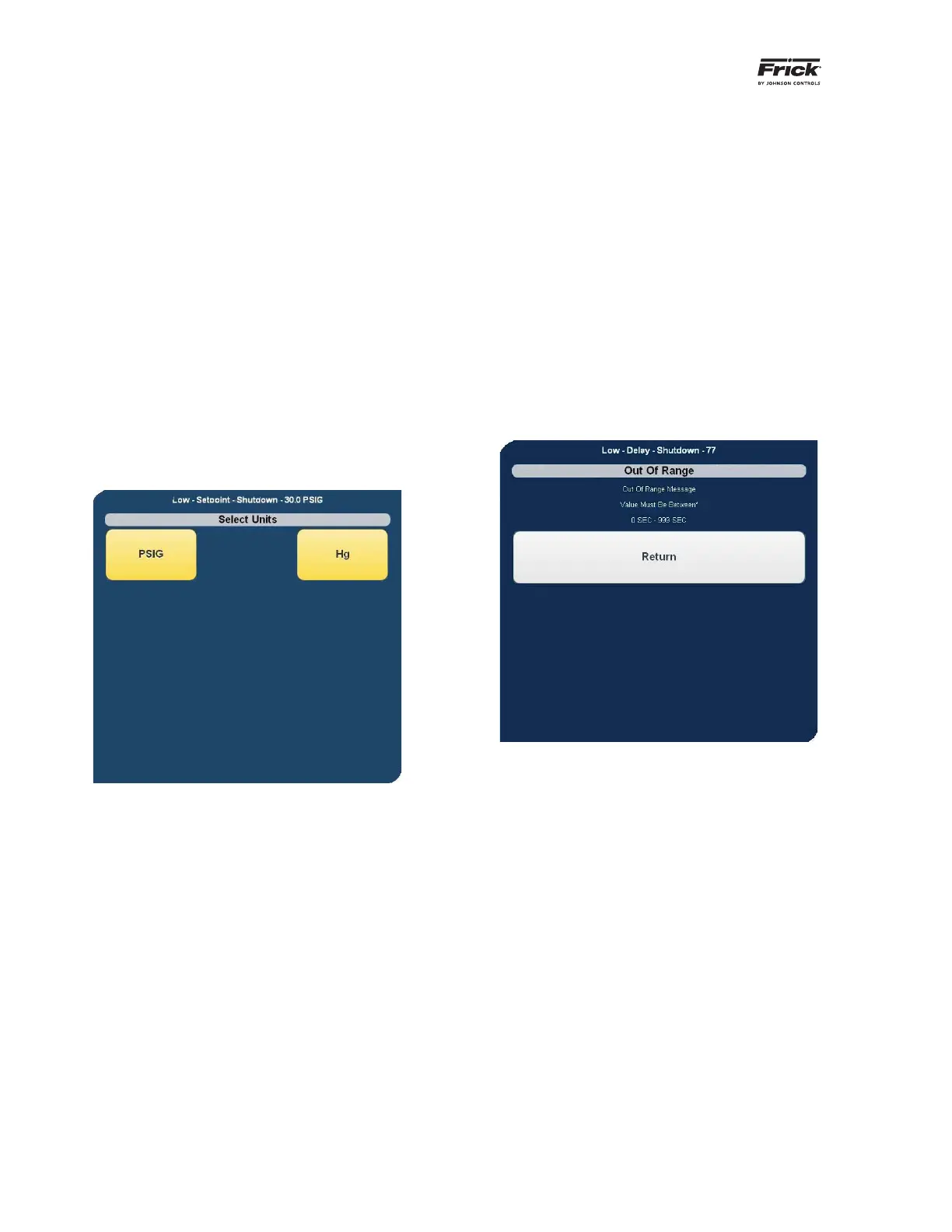

The Select Units pop-up menu is shown below:
POP-UP OUT OF RANGE BOX
If any numeric value that is entered is outside of the
acceptable range for that setting, an Out Of Range
pop-up box will appear.
The title at the very top of this pop-up gives the
name of the setpoint that is being viewed.
The grey bar that appears near the top of the box will
give the title of the box, in this case it will say Out
Of Range.
The acceptable range for this setpoint will be given.
Selecting the Return button will return you to the Nu-
meric Keypad entry box. Ensure that the value that
you enter falls within the acceptable range.
The Out Of Range pop-up menu is shown below:
