QUANTUM™ HD COMPRESSOR CONTROL PANEL
OPERATION
090.040-O (MAR 12)
Page 114

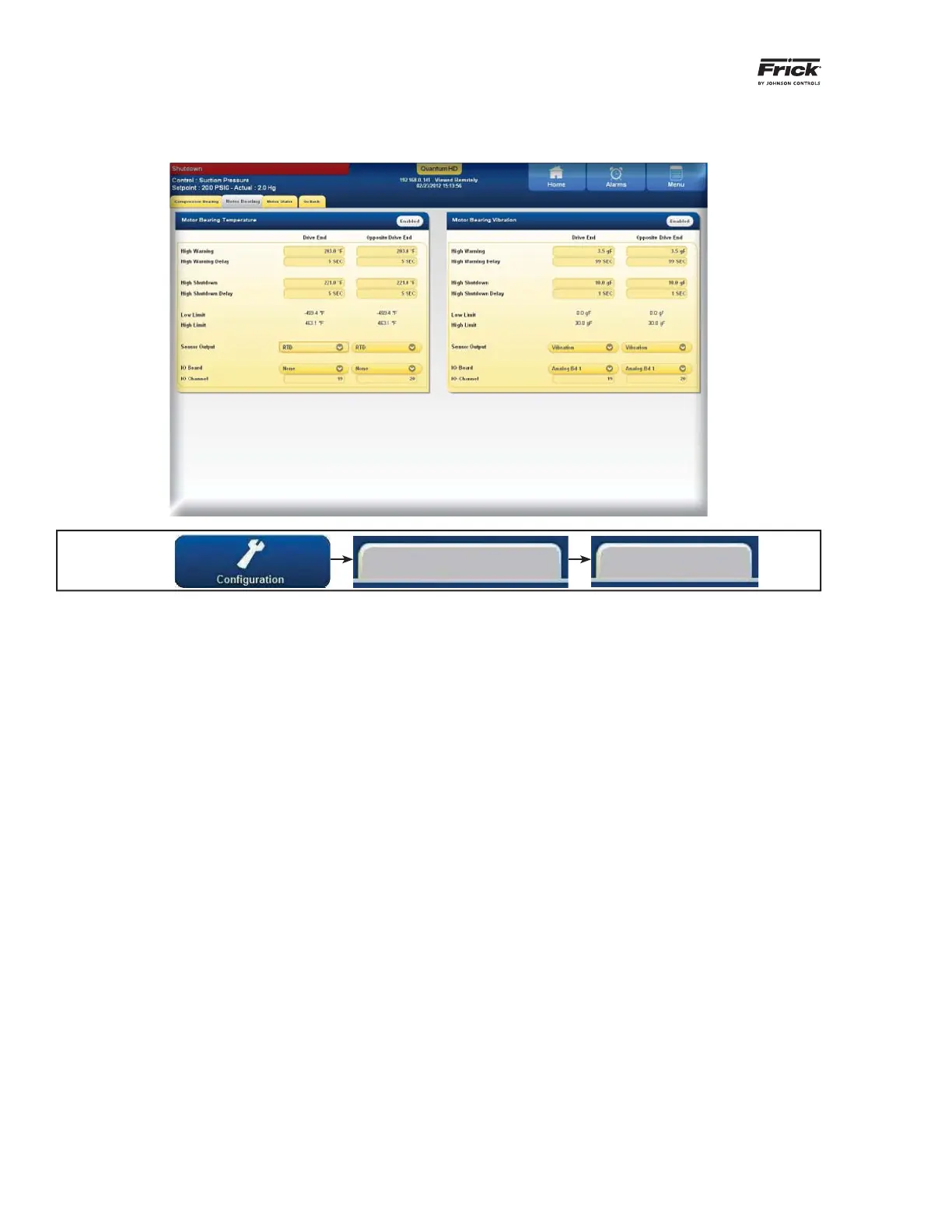

CONFIGURATION
PHD Vibration / Temperature - Motor Bearing Temperature / Vibration
ACCESSING:
Motor Bearing
PHD Vibration / Temperature
DESCRIPTION: Use this screen to confi gure the Motor
Bearing for either temperature or vibration. The following
setpoint and selection boxes are provided:
MOTOR BEARING TEMPERATURE
Motor Bearing Temperature
• Disabled
• Enabled
[High Warning] - If the Motor Bearing tempera-
ture exceeds this setpoint for the amount of time
as set for the High Warning Delay, then a Warn-
ing is issued.
[High Warning Delay] - The time period as set
here will begin to time down if the Motor Bearing
temperature exceeds that of the High Warning,
and remains above. When this delay times out, a
Warning will be issued.
[High Shutdown] - If the Motor Bearing tem-
perature exceeds this setpoint for the amount of
time as set for the High Shutdown Delay, then
a Shutdown will occur, and the compressor is
stopped.
[High Shutdown Delay] - The time period as set
here will begin to time down if the Motor Bearing
temperature exceeds that of the High Shutdown,
and remains above. When this delay times out,
a Shutdown will occur, and the compressor is
stopped.
[Low Limit] - If the Motor Bearing temperature
falls below this setpoint, a Warning is issued.
[High Limit] - If the Motor Bearing temperature
rises above this setpoint, a Warning is issued.
[Sensor Output] - The following selections are
provided:
0-5V
1-5V
4-20mA
ICTD
RTD
0-20mA
0-10V
2-10V
[I/O Board] - The following selections are pro-
vided:
None
Analog Bd 1
Analog Bd 2
[I/O Channel] - A setpoint entry box is provided
to select the analog board output channel that
you wish to use.
To Next Page
