QUANTUM™ HD COMPRESSOR CONTROL PANEL
OPERATION
090.040-O (MAR 12)
Page 12
typically needed for day to day operation. The
factory default password is 1. The following
menu icons are available in this level:
• Home
• Events
• Trending
• About
• Status
• Alarms
• Clean Screen Mode
Operator - This level allows access to all Basic
level icons. The factory default password is 2. The
following additional menu icons are available:
• Control Setpoints
• Calibration
Service - This level allows access to all Basic
and Operator level icons. The factory default
password is 3. The following additional menu
icons are available:
• Service
• Confi guration
This menu is accessible by selecting the Menu button
at the top right of any screen. The diagram on the next
page shows the tree structure of which screens are

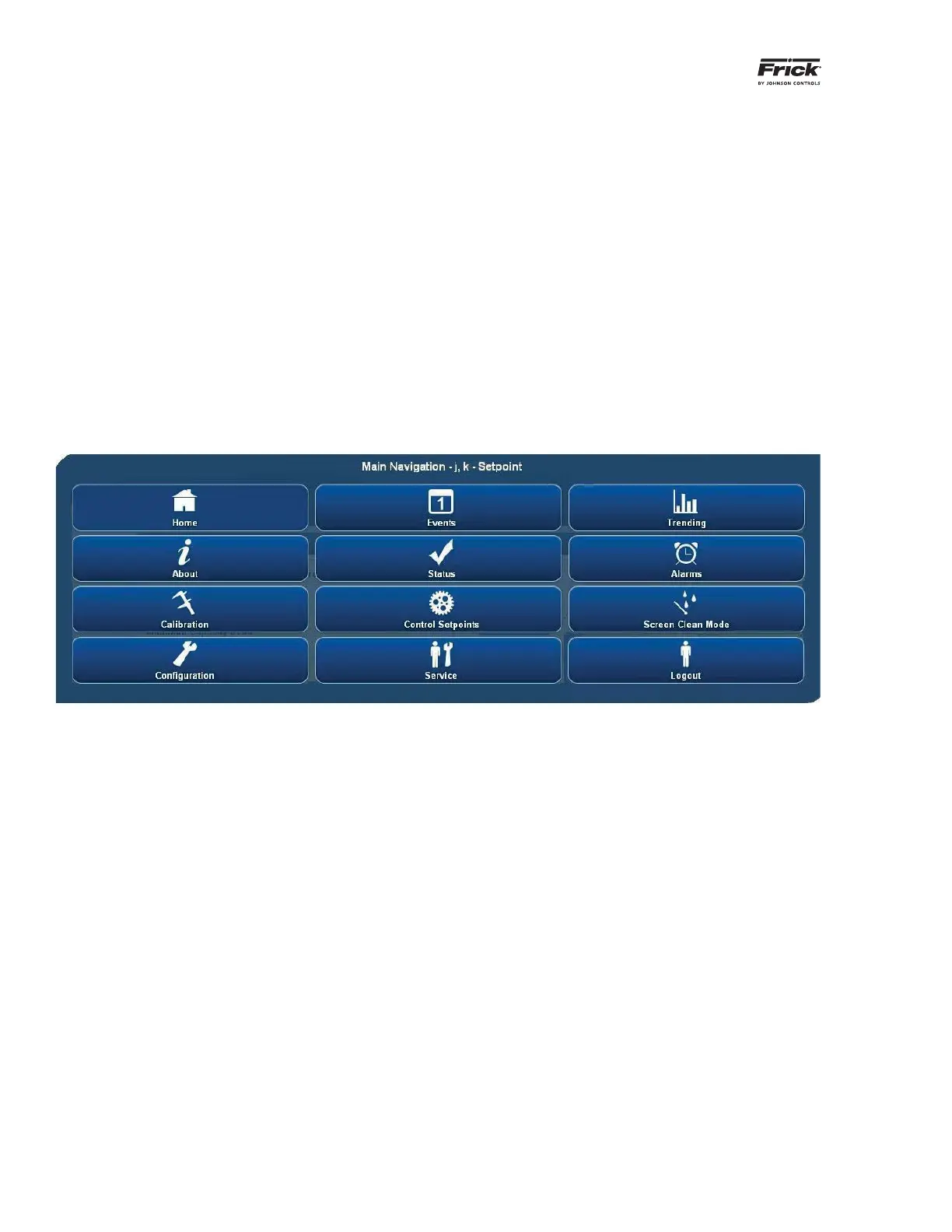

accessible through each menu button. The pictorial
shown below represents the Navigation Menu based
upon the highest user privilege (Service):
