QUANTUM™ HD COMPRESSOR CONTROL PANEL
OPERATION
090.040-O (MAR 12)
Page 22
NOTE: The screens that follow throughout the remainder of this manual are accessed from the
Navigation Menu, and availability may be restricted by assigned privilege level, or installed
options.

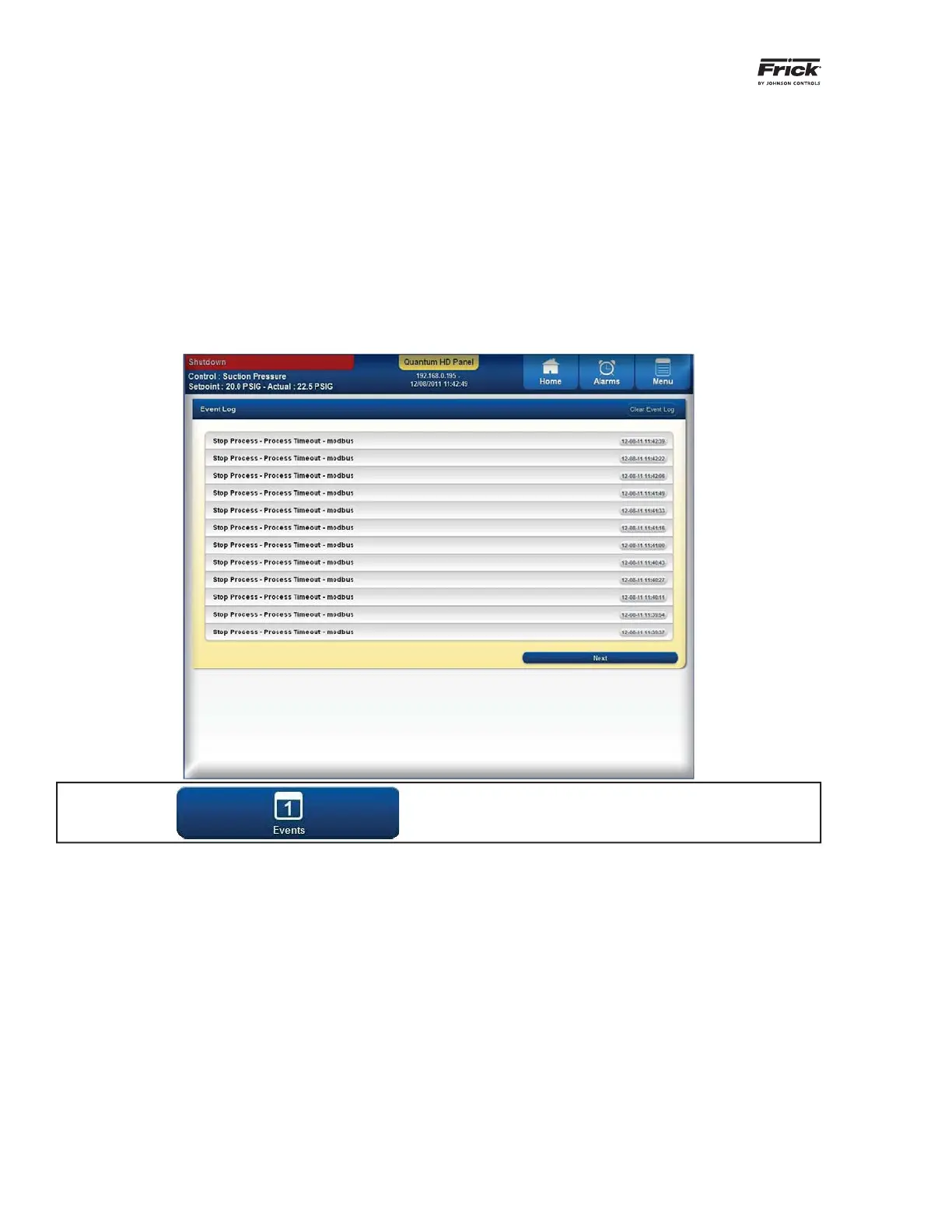

EVENTS
ACCESSING:
DESCRIPTION: This screen is used to log certain mes-
sages and events that are generated through normal
unit operation. Occurrences such as normal power up
and power down sequences, as well as all maintenance
schedule messages (see the Service > Maintenance >
Factory screen for more information on these messages).
The left side of this screen is numbered for each event
which has occurred. Under the Event heading, the specifi c
event will be shown that caused a normal system event.
The column at the right side of the screen shows the date
and the time of the event. It is very important to ensure
that the correct Date and Time are set, so that the Events
that are logged here are accurately represented.
