QUANTUM™ HD COMPRESSOR CONTROL PANEL
OPERATION
090.040-O (MAR 12)
Page 11
SECTION 2
SCREEN AND MENU NAVIGATION

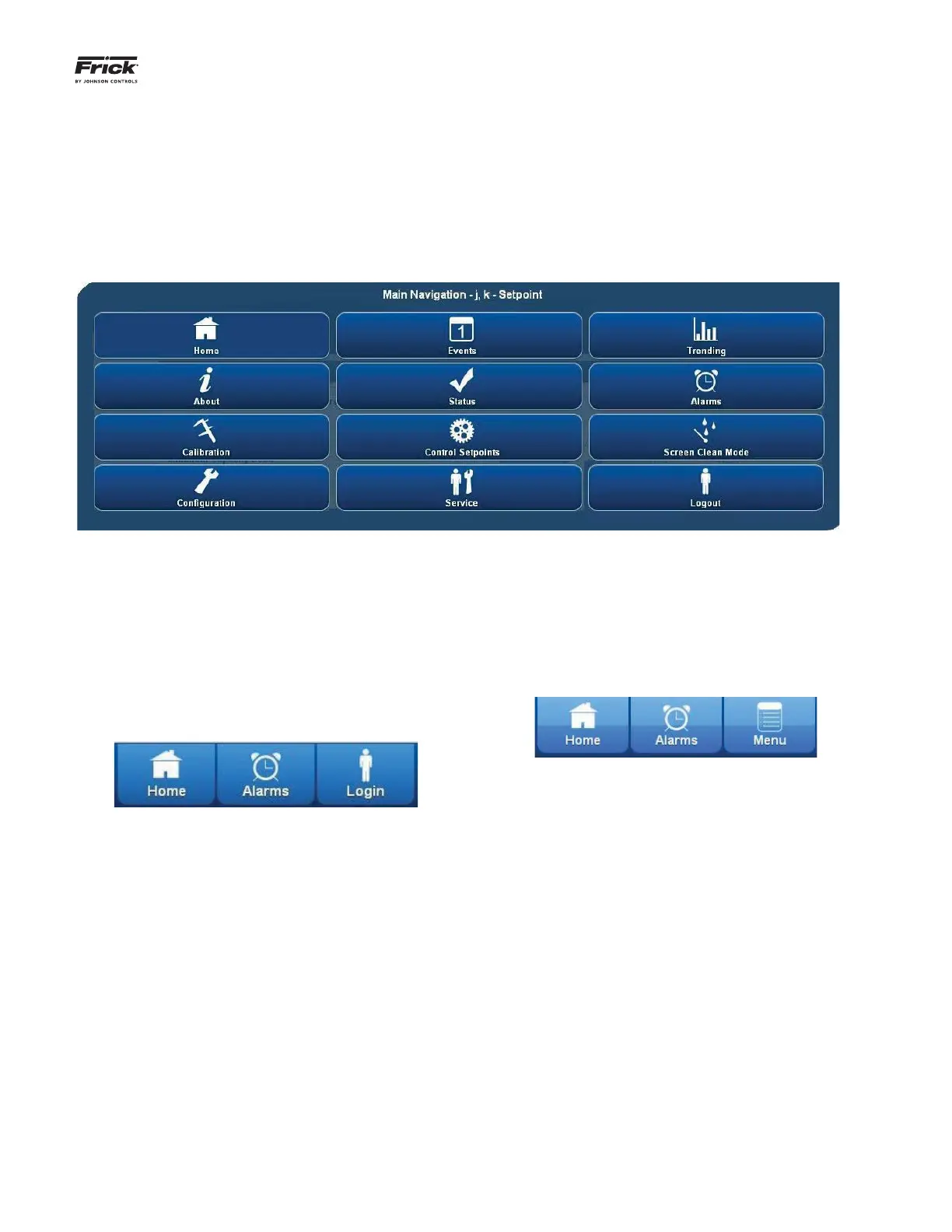

NAVIGATION ICONS
At the top right of each screen, you notice three
buttons (or icons). When the panel is fi rst powered
up they will appear as follows:
The names and functions of these three icons are:
• Home - Selecting this button will always
return you to the Home screen.
• Alarms - Selecting this button will cause
the Alarms screen to appear. The Alarms
screen allows the user (at any privilege
level) to view and clear any active alarms
or shutdowns.
• Login - This icon will only be present
upon initial power up. Selecting this icon
will cause the Numeric Keypad (explained
earlier) to appear. If you have been given a
privilege access code, you will enter it here.
If the code is not valid, you will be prompted
to re-enter it. If you do not have an access
code, you will be limited to only accessing
the buttons mentioned above. If however,
you enter a valid access code, the three
buttons will be replaced by the following
three buttons:
The names and functions of the fi rst two buttons are
the same as previously stated (Home and Alarms).
The third button (which was previously Login) is now
replaced with the following:
• Menu - Selecting this button will cause the
navigational menu (which is determined
by your assigned access level) to be
superimposed over the current screen.
These three buttons will also appear on the
Navigation Menu, and are available at all
privilege levels.
NAVIGATION MENU
Navigating between the various screens is
accomplished by accessing the Navigation Menu. The
appearance of this menu will vary depending upon
what user privilege level has been assigned to you.
The various levels of access are:
Basic - This level provides access to what is
