3.4.7 Setting of Forced Open Valve Mode
This mode is utilized to simplify the refrigerant recovery work, refrigerant evacuation work and air tight test
during servicing by fully opening the expansion valves of water source unit (MV1, MV3, MV4, MVB) and the
expansion valve of indoor unit (MV), and opening the solenoid valves of water source unit (SVA, SVB).
e.g. Refrigerant Recovery Work during Servicing
The following Figure 3.4 indicates the water source unit cycle condition when the power supply of water
source unit is cut off with fully closed MV1.
Recovering refrigerant from the access port of gas stop valve and liquid stop valve under the condition
above is incapable because the path of the heat exchanger (
) is blocked.
The following valves are forcibly opened during the “Forced Open Valve Mode” is activated.
● Expansion Valve for Water Source Unit (MV1)
● Expansion Valve for Water Source Unit Inverter Radiation (MV3)
● Expansion Valve for Water Source Unit Plate Type Heat Exchanger (MV4)
● Expansion Valve for Water Source Unit Subcooling Heat Exchanger Bypass (MVB)
● Solenoid Valve for Water Source Unit High-Low Pressure Bypass (SVA)
● Solenoid Valve for Water Source Unit Plate Type Heat Exchanger Bypass (SVB)
● Expansion Valve for Indoor Unit (MV)

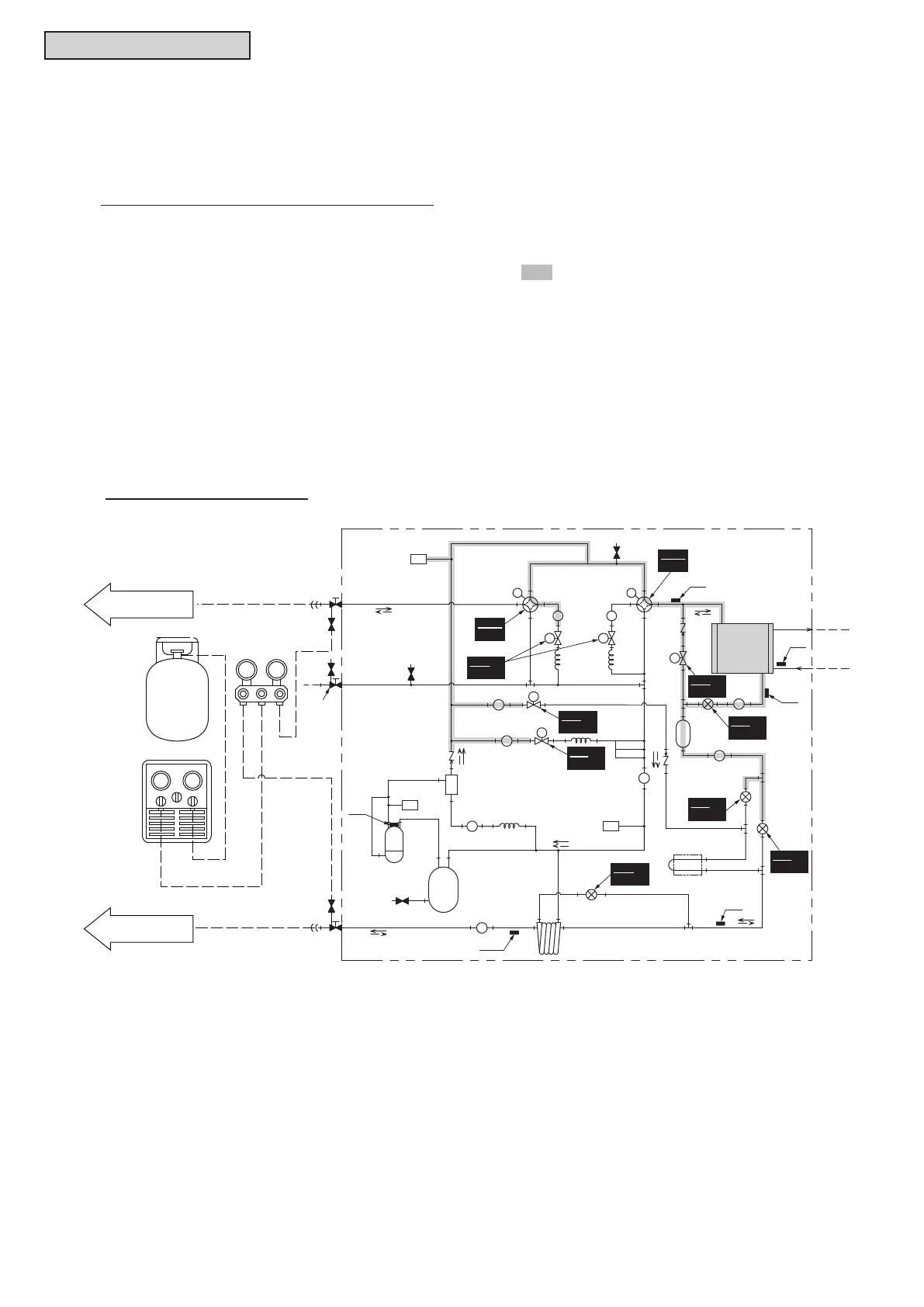

Figure 3.4 Water Source Unit Cycle Condition
