MAINTENANCE
(H,Y)VWH(P,R)072, 096, 120B(3,4)2S
Removing SVG
(H,Y)VWH(P,R)144, 168, 192, 216B(3,4)2S
TURN OFF all POWER supply switches.
Tool
PhillipsScrewdriver,ChargingHose,
Torch, Wet Cloth, Pliers

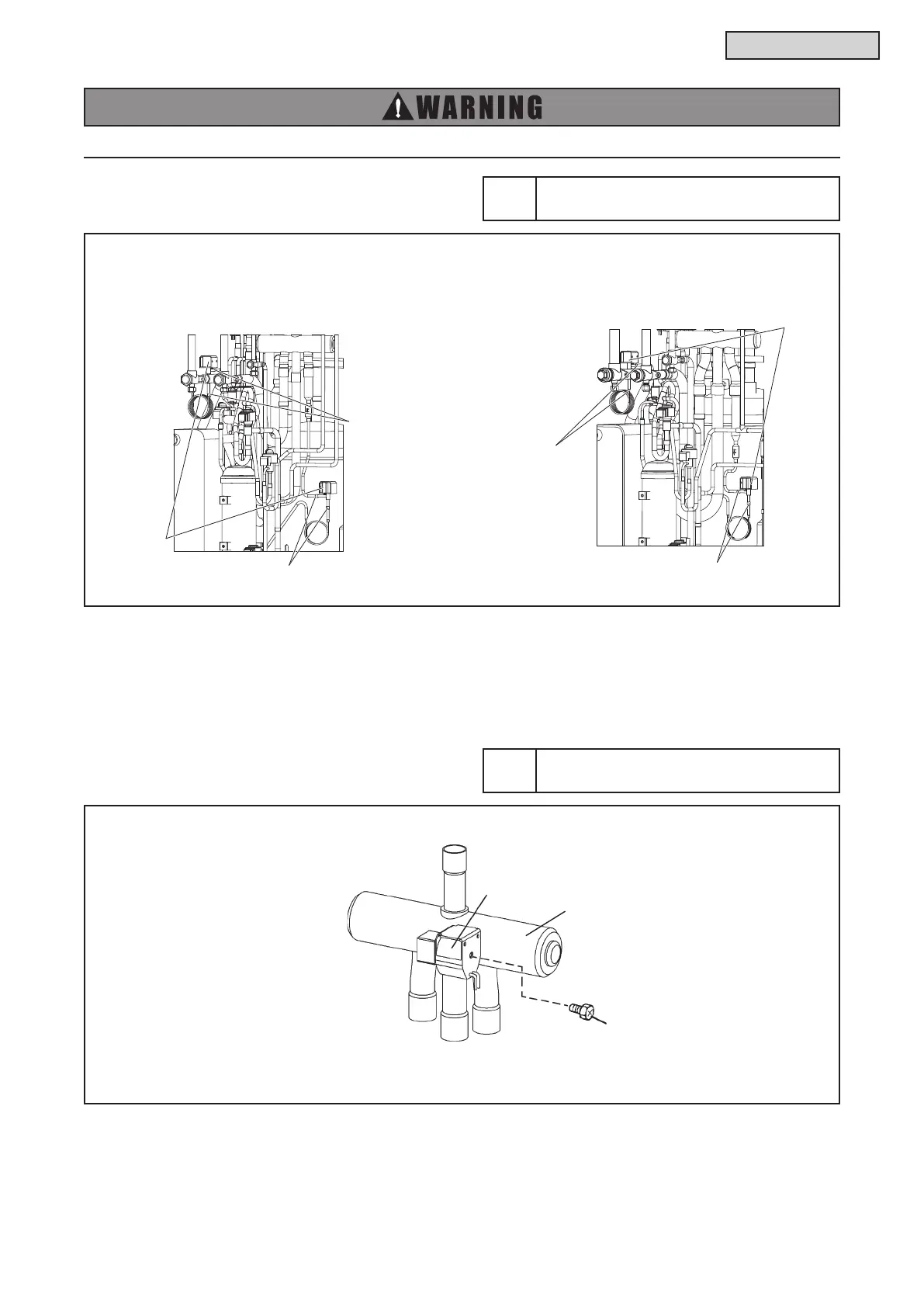

4.1.12.4 Removing Reversing Valve Coil (RVR1, RVR2)
(1) Removeonescrewsecuringthereversingvalvecoilwithaphillipsscrewdriver.
Ifthescrewisdifculttoremove,useanadjustablewrenchoraratchet.
(2) Remove the reversing valve coils.
SVG
Brazing Part
Brazing Part
SVG
Brazing Part
Brazing Part
Tool
PhillipsScrewdriver,
AdjustableWrenchorRatchet
Reversing Valve Coil
Reversing V
alve Body
Screw
Thisistheunitfrontview.
