Johnson Controls HVWHP072B32S - Removing Expansion Valve and Solenoid Valve Coils

4-30
SM-18006
MAINTENANCE
TURN OFF all POWER supply switches.
4.1.12 Removing Expansion Valve and Solenoid Valve Coils

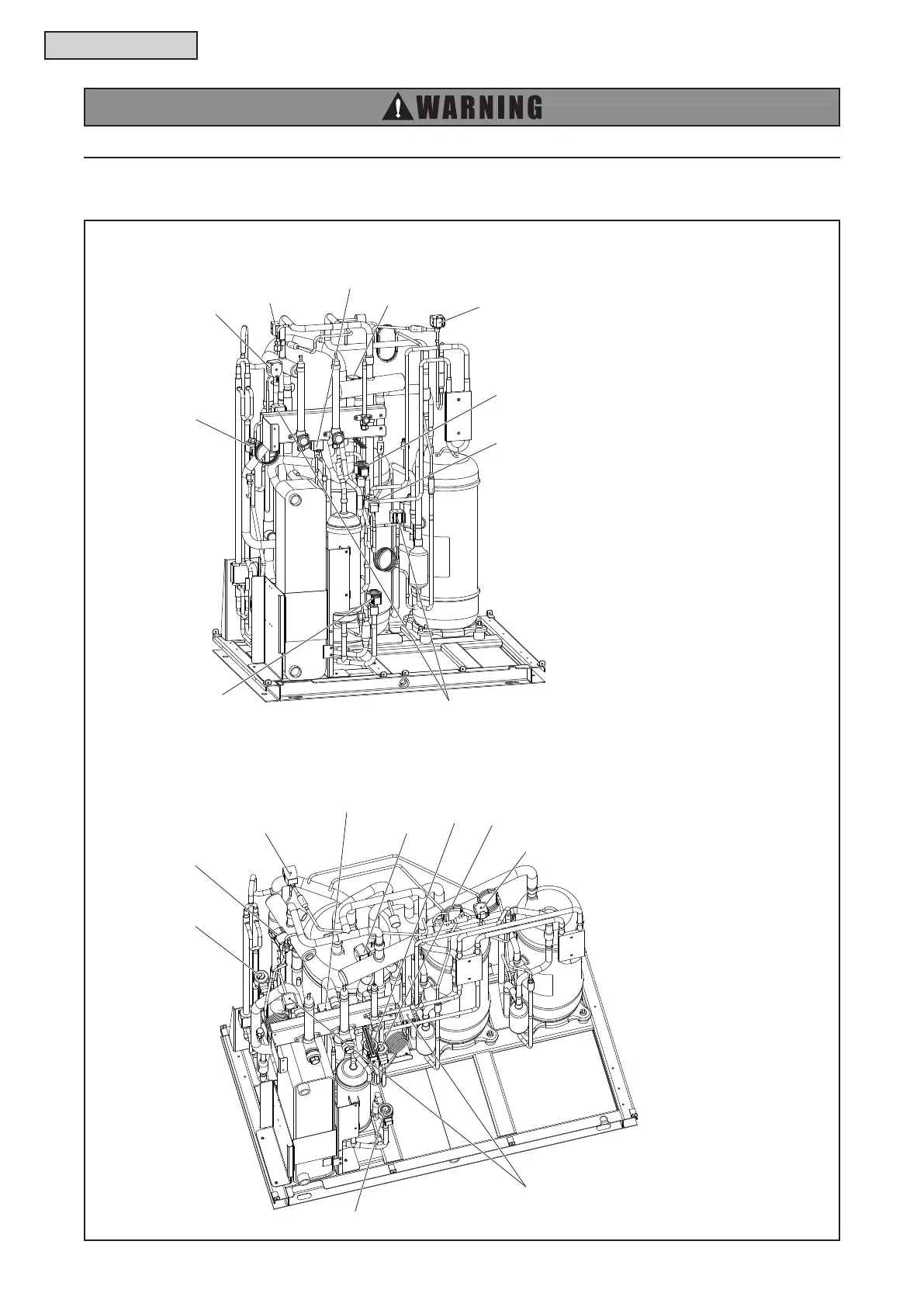

Thefollowingguresindicatethepositionofexpansionvalveandsolenoidvalvecoils.
(H,Y)VWH(P,R)072, 096, 120B(3,4)2S
(H,Y)VWH(P,R)144, 168, 192, 216B(3,4)2S
SVC
RVR1
SVB
SVA
RVR2
MVB
MV4
SVG
MV3
MV1
MV4
SVG
MV3
MV1
SVC
RVR1
SVB
RVR2
MVB
SVA
SVA: SolenoidValveCoil
SVB: Solenoid Valve Coil
SVC: Solenoid Valve Coil
SVG: Solenoid Valve Coil
RVR1: Reversing Valve Coil
RVR2: Reversing Valve Coil
MV1: Expansion Valve Coil
MV3: Expansion Valve Coil
MV4: Expansion Valve Coil
MVB: Expansion Valve Coil
