Johnson Controls HVWHP072B32S - Noise Filter (NF1, NF2)

(Main Parts)
MAINTENANCE
4-102
SM-18006

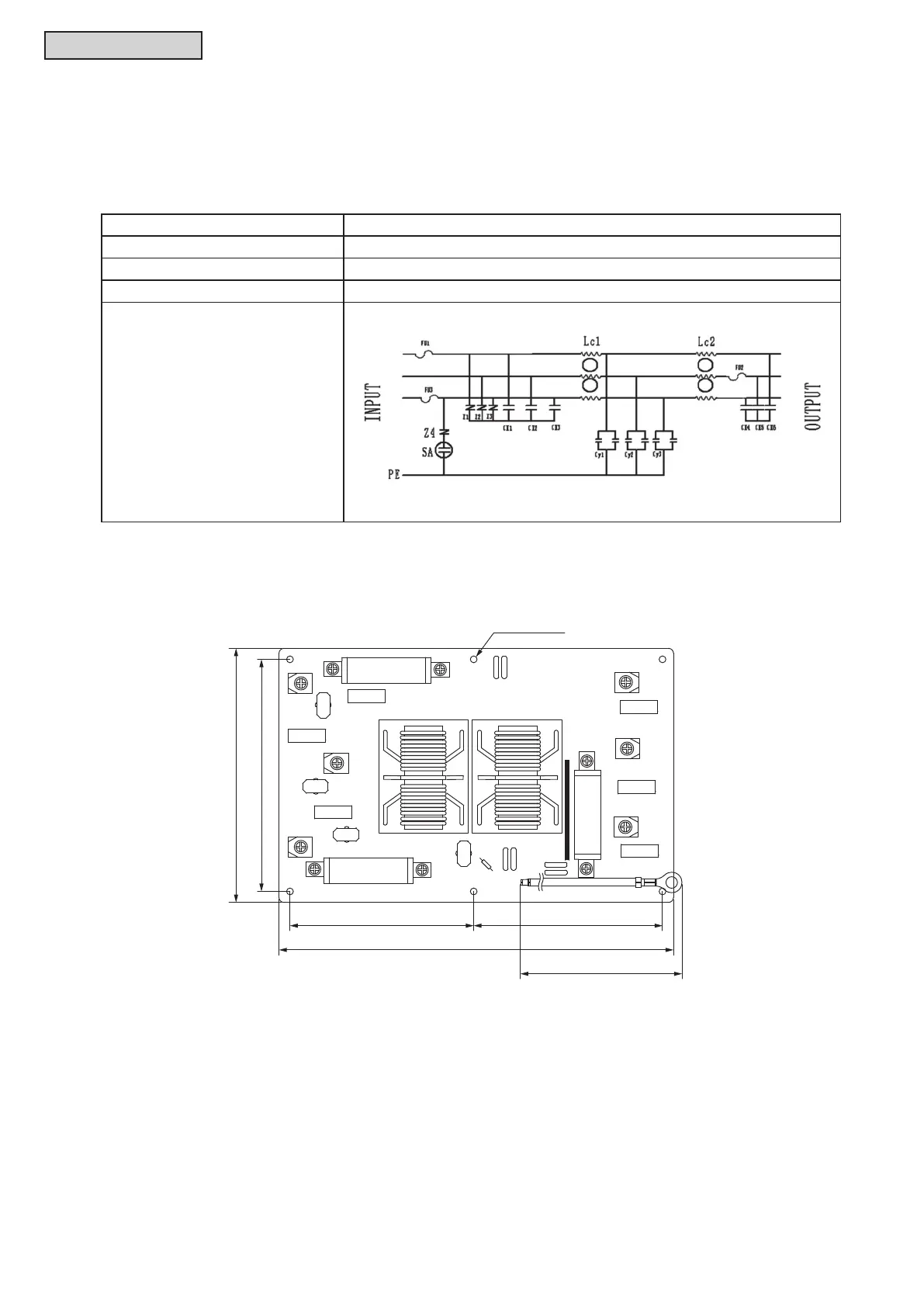

(1) Noise Filter for 208/230V Type
Items Specications
Model NF151Q
Rated Voltage AC 208/230V
Rated Current 40A
Circuit Diagram
R1
S1
T1
R2
S2
T2
4.2.11 Noise Filter (NF1, NF2)
The noise lter decreases the leakage of noise made by the inverter to the power supply side. Terminals
indicated with “R2”, “S2” and “T2” are connected to the inverter side. Terminals indicated with “R1”, “S1” and
“T1” are connected to the power supply side.
inch (mm)
L1
L2
DC 500V 40A
DC 500V 40A
DC 500V 40A
R1
Z1
CX2
S1
Z2
Z3
CX3
T1
Cy3
Cy2
R2
CX4
S2
CX5
T2
CX6
Cy1
NFT-025A25-HHA0
H7B04936A-D
CX1
E
JP
FU1
FU2
FU3
SA
Z4
5-7/8 (150)
9-3/16 (233)
9-13/16 (250)
5-3/8 (137)
4-1/4 (108.5) 4-3/8 (111.5)
6-
φ
3/16 (4)
