4.2.13 Transformer (TF) for 460V Type
This part is used for supplying power voltage to the control and inverter PCB.
Items Specications
Rated Voltage
Primary AC 460V 60Hz
Secondary 230V
Rated Power 322VA

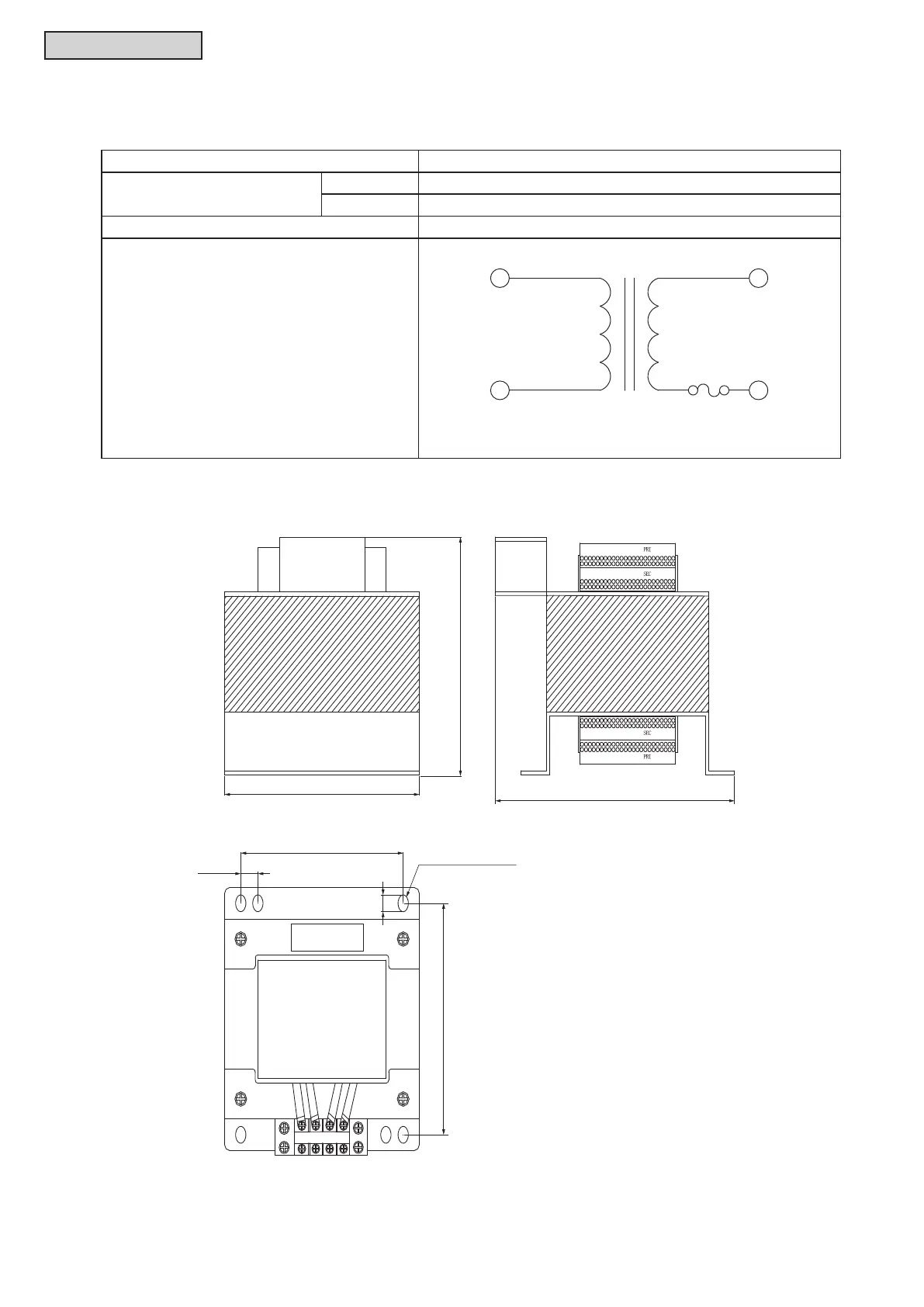

Circuit Diagram
1
2
Primary
AC 460V 60Hz
Secondary
230V 1.4A
Temperature
Fuse
4
3
3/8 (10)
Max. 4-9/16 (116)
3-3/4 (95)
230V 460V
6 - 1/4 x 5/16 (6 x 8)
5-7/8 (150)
4-1/2 (115)
5/16
(8)
4-5/16 (110)
inch (mm)
