MAINTENANCE

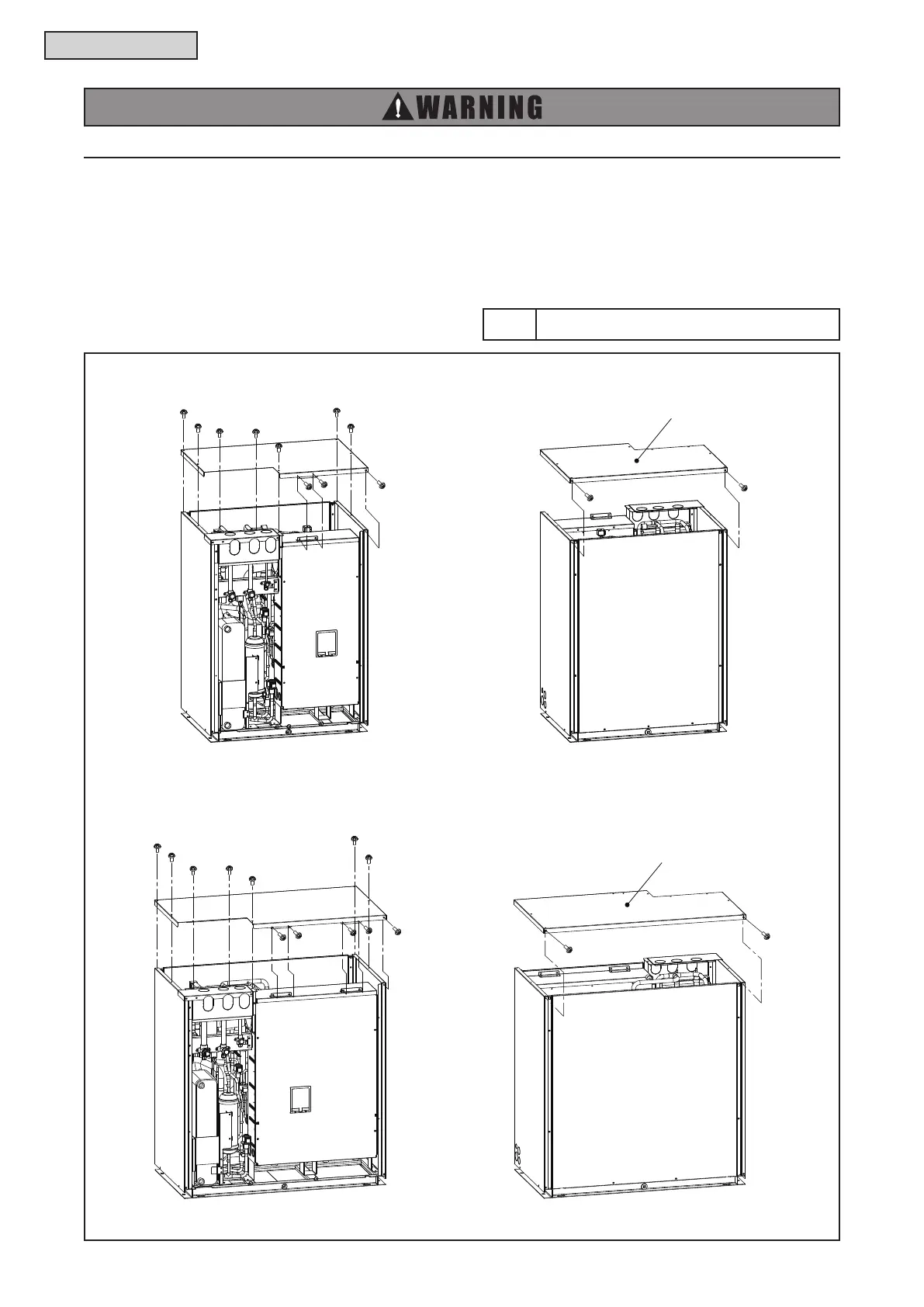

4.1.3 Removing Upper Cover
(1) Remove the service cover and front cover according to Section 4.1.1 “Removing Service Cover and
Front Cover”.
(2) Remove screws attaching upper cover.
(H,Y)VWH(P,R)072, 096, 120B(3,4)2S: 12 screws
(H,Y)VWH(P,R)144, 168, 192, 216B(3,4)2S: 14 screws
(3) Lift the upper cover vertically and remove it.
Tool Phillips Screwdriver
TURN OFF all POWER supply switches.
Upper Cover
Front Side Rear Side
Upper Cover
Front Side Rear Side
(H,Y)VWH(P,R)144, 168, 192, 216B(3,4)2S
(H,Y)VWH(P,R)072, 096, 120B(3,4)2S
