Johnson Controls HVWHP072B32S - Page 255

(Main Parts)
MAINTENANCE
SM-18006
4-105
(2) Reactor for 460V Type
Items Specications
Character 1.0mH+15%, -10% (1KHz)
Rated Current 35A
Direct Current Resistance 28mΩ (68
o
F (20
o
C))

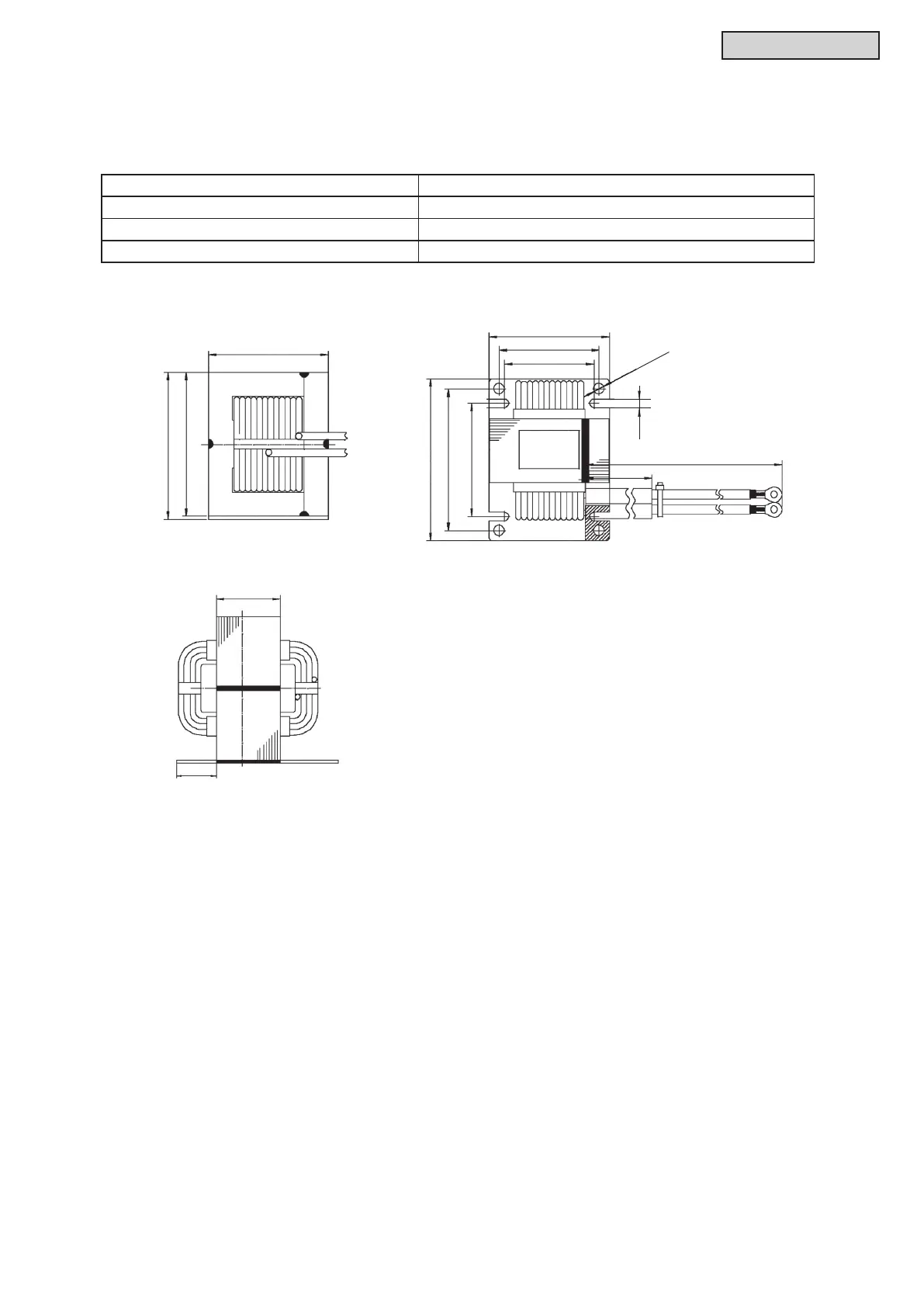

2-9/16 (65)
2-9/16 (65)
4 - φ1/4 (6)
29-1/2 (750)
3-1/8 (80)
2-1/16 (53)
1-7/8 (47.5)
1-5/16 (34)
13/16
(21)
3-1/8 (79.6)
3-1/16 (78)
3-3/8 (86)
2-15/16 (75.2)
2-3/8 (60)
3/16
(4.5)
inch (mm)
