4-22
SM-18006
MAINTENANCE
(18) Perform the nal check for wiring conditions by referring to the gure below.
NOTE:
Ensure that all wiring does not come in contact with the compressor, piping or plate edges. If there are
contacts, wiring can damage or a re can occur.
TURN OFF all POWER supply switches.

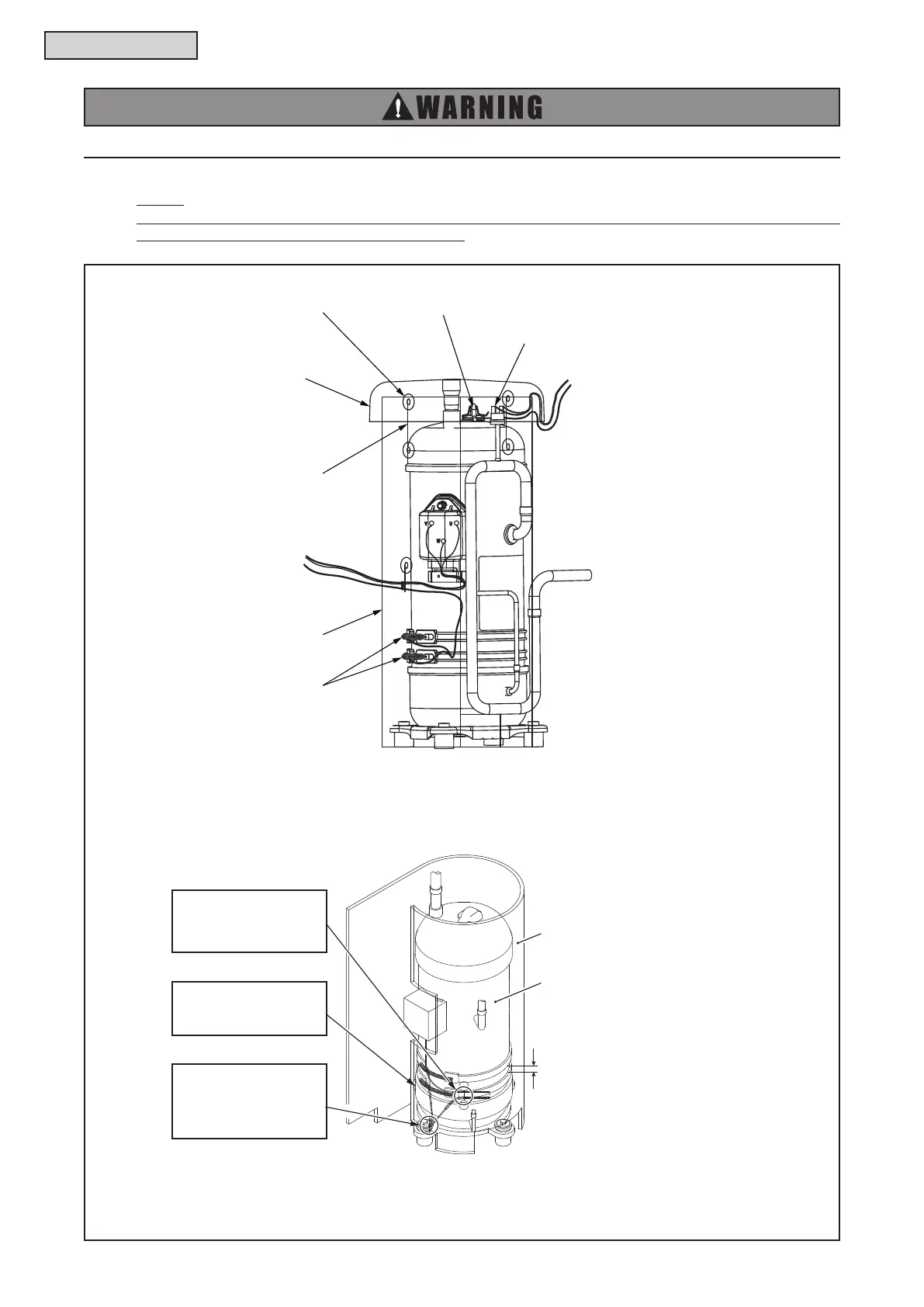

Details of Compressor Crankcase Heater Wiring
Soundproof Cover
Compressor
The distance between crankcase heaters
should be Min. 13/16 inch (20mm).
Secure compressor power
wiring and crankcase
heater wiring together
with a bind lace.
Pull out crankcase heater
wiring from soundproof
cover dent part without
contacting with bolt,
nut or pipe of compressor.
Wind crankcase heater
firmly around the
compressor bottom part.
Firmly secure Soundproof Cover
to Protect Compressor from
Entering Water.
Wind all bind Lace at Tack
more than four times.
Soundproof Cover
Crankcase Heater
Td Thermistor
PSH (High pressure Switch)
Tack
