SM-18006
4-49
MAINTENANCE
TURN OFF all POWER supply switches.
Tool
Phillips Screwdriver,
Long Nose Pliers, Pliers
: Board Holder
: Securing Screw for Part

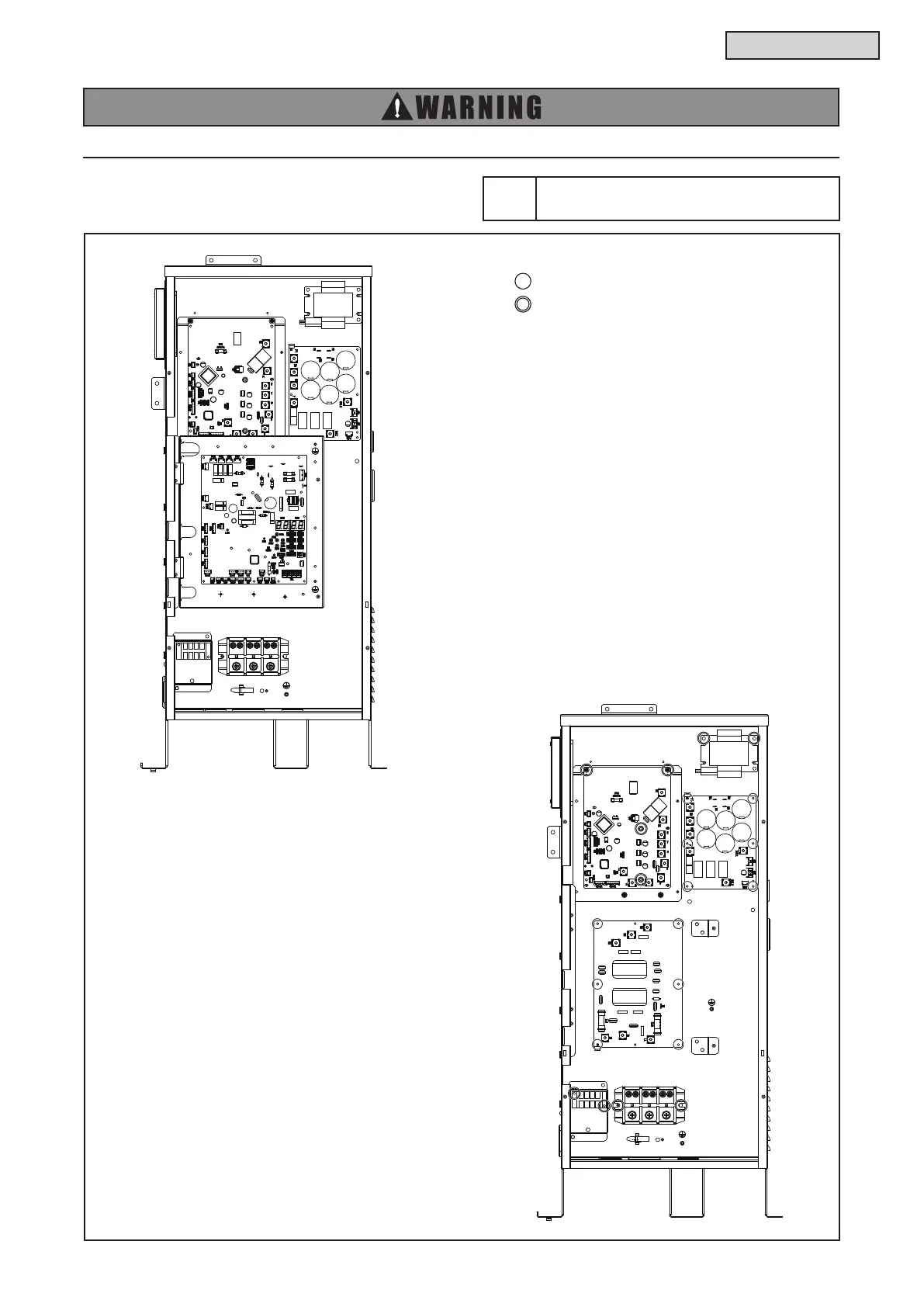

1. Noise Filter (NF)
Board Holder (six places)
2. Inverter PCB (INV)
Securing Screw for Part (M3) (two places)
Securing Screw for Part (M5) (two places)
3. Reactor (DCL)
Securing Screw for Part (M4) (two places)
4. Terminal Block (TB1)
Securing Screw for Part (M4) (two places)
4. Terminal Block (TB3)
Securing Screw for Part (M4) (two places)
5. Main Power PCB (MPB)
Board Holder (six places)
Refer to previous page for item No.1 to 5.
To Next Page
