4-54
SM-18006

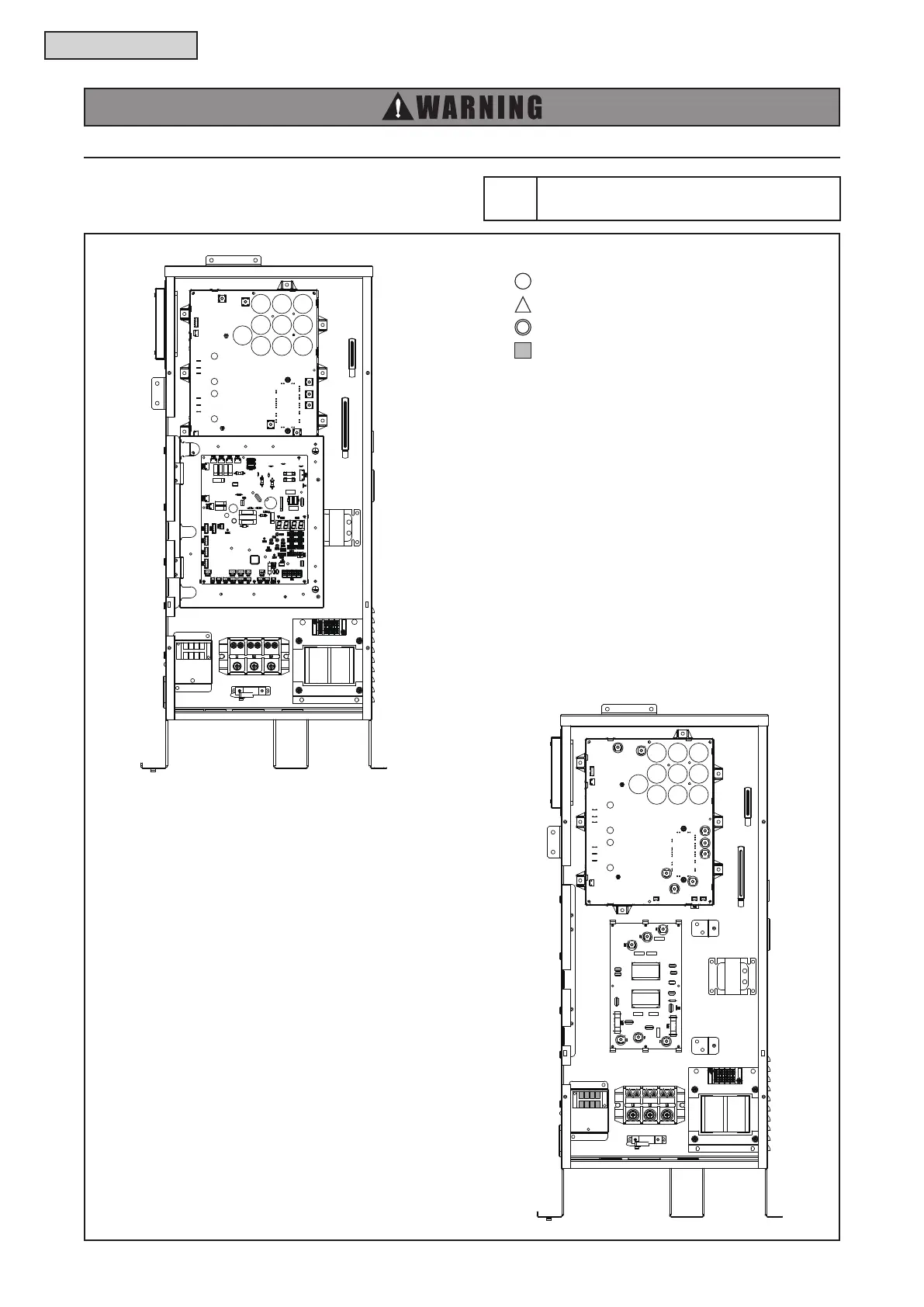

MAINTENANCE
TURN OFF all POWER supply switches.
Tool
Phillips Screwdriver,
Long Nose Pliers, Pliers
: Securing Screw for Wiring (M5)
: Securing Screw for Wiring (M6)

: Securing Screw for Wiring (M8)
: Securing Screw for Wiring (M4)
1. Noise Filter (NF)
Securing Screw for Wiring (six places)
2. Inverter PCB (INV)
Securing Screw for Wiring (eight places)
4. Terminal Block (TB1)
Securing Screw for Wiring (M6) (six places)
Securing Screw for Wiring (M8) (three places)
4. Terminal Block (TB3)
Securing Screw for Wiring (M4) (eight places)
Refer to previous page for item No.1 to 4.
