MAINTENANCE
TURN OFF all POWER supply switches.
Tool
Phillips Screwdriver,
Long Nose Pliers, Pliers
: Board Holder
: Securing Screw for Part

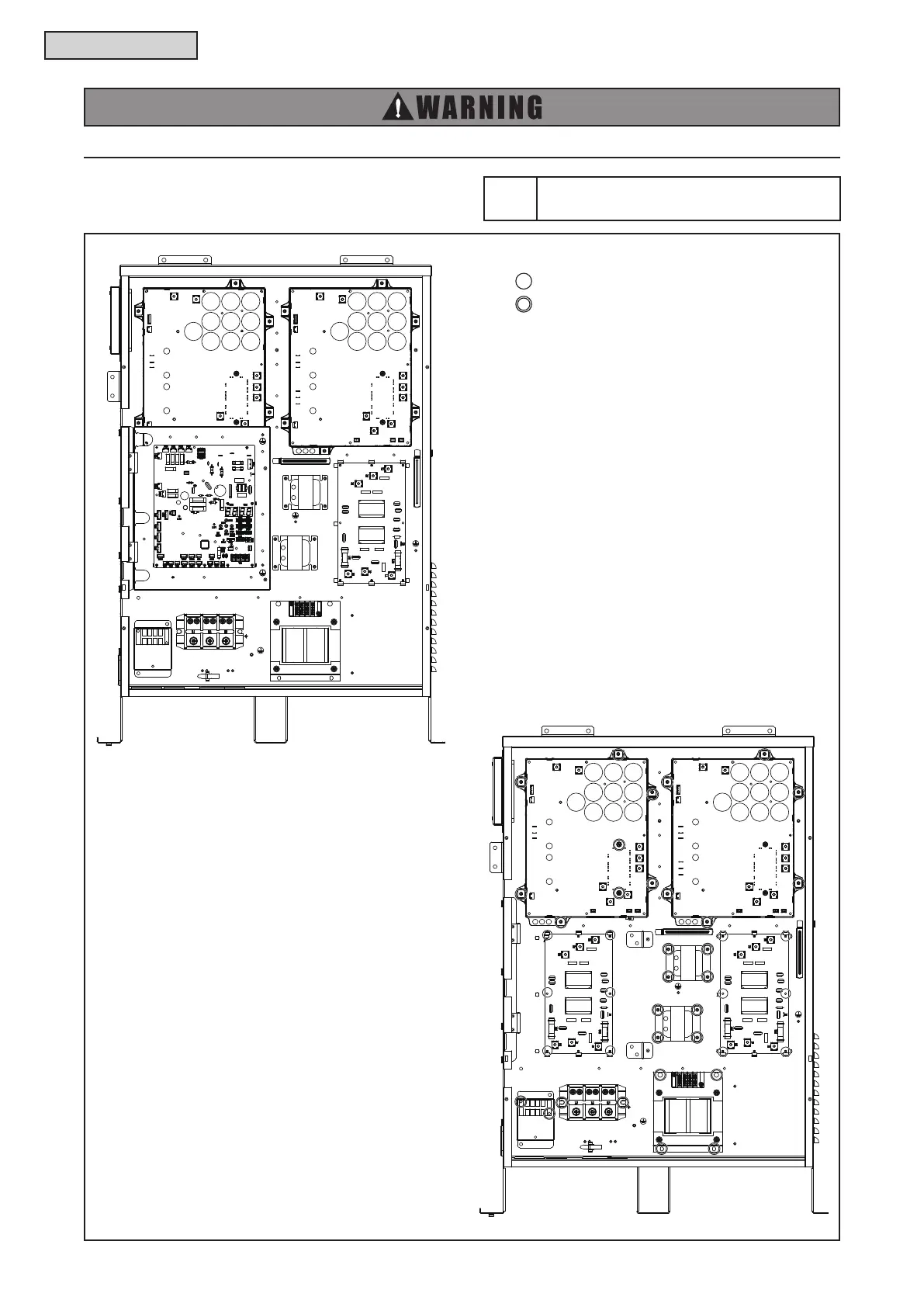

1. Noise Filter (NF1, NF2)
Board Holder (12 places)
2. Inverter PCB (INV1, INV2)
Securing Screw for Part (M3) (four places)
Securing Screw for Part (M4) (12 places)
3. Reactor (DCL)
Securing Screw for Part (M4) (eight places)
4. Terminal Block (TB1)
Securing Screw for Part (M4) (two places)
4. Terminal Block (TB3)
Securing Screw for Part (M4) (two places)
5. Transformer (TF)
Securing Screw for Part (M5) (four places)
Refer to previous page for item No.1 to 5.
To Next Page
