SM-18006
5-15
EXTERNAL INPUT/OUTPUT AND FUNCTION SETTING

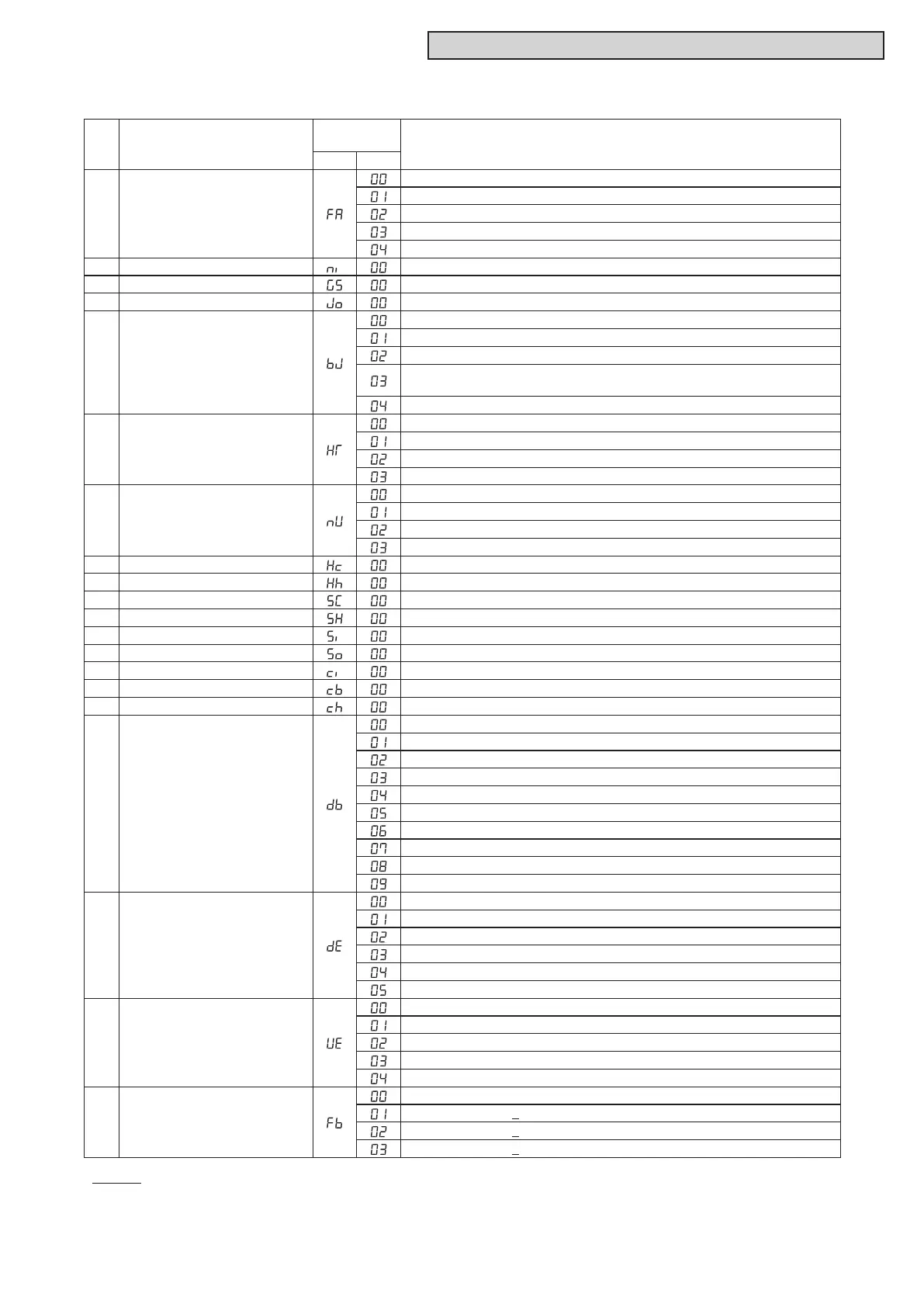

5.2.2.1 Function Setting Item
No. Setting Item
7-Segment
Display
Contents
SEG2 SEG1
1
Circulator Function
at Heating Thermo-OFF
No setting
IndoorfanforcedONandOFF(2min.ON/6min.OFF)
IndoorfanforcedONandOFF(2min.ON/13min.OFF)
IndoorfanforcedONandOFF(2min.ON/28min.OFF)
Indoor fan stop
2 Not Prepared
-
3 Not Prepared
-
4 Not Prepared
-
5 SLo (Fan Speed)
Indoorfanstopwhenheatingoperationisactivated/duringdefrostoperation
Indoor fan SLo operation during defrost operation
Indoor fan SLo operation when heating operation is activated
IndoorfanSLooperationwhenheatingoperationisactivated/duringdefrost
operation
Indoor fan SLo operation when heating operation is activated
6
Cancellation of
Water Source Unit Hot Start
Hot start control is available
Cancellation of hot start
Not used
Not used
7 Priority Capacity Mode
No setting
Changeoffrequencymaximumlimitvalue
Changeoffrequencymaximumlimitvalueandcurrentlimitvalue
Changeoffrequencymaximumlimitvalueandcurrentlimitvalue
8 Not Prepared
-
9 Not Prepared
-
10 Not Prepared
-
11 Not Prepared
-
12 Not Prepared
-
13 Not Prepared
-
14 Not Prepared
-
15 Not Prepared
-
16 Not Prepared
-
17
Low Noise Setting
(Sound Reduction Function,
cooling/heatingoperationrange
will be restricted.)
Initial setting
-
-
-
Compressor frequency limit 1
Compressor frequency limit 2
Compressor frequency limit 3
Compressor frequency limit 1
Compressor frequency limit 2
Compressor frequency limit 3
18 Demand Current Setting
No demand control
Demand control 40%
Demand control 60%
Demand control 70%
Demand control 80%
Demand control 100%
19 Wave Function Setting
No wave function
Minimum limit 40%
Minimum limit 60%
Minimum limit 70%
Minimum limit 80%
20
Protection of Decrease in Outlet
Temperature for Cooling
Initial setting
Outlet temperature < 50
o
F (10
o
C)
Outlet temperature < 54
o
F (12
o
C)
Outlet temperature < 58
o
F (14
o
C)
NOTES:
1. Do not change the setting for Setting Item “Not Prepared”. Otherwise, it may lead to unit malfunction.
2. Contact your distributor or contractor for details on item “22”.
