TROUBLESHOOTING
Alarm
Code
Abnormality of Thermistor for Indoor Unit Inlet Air Temperature
(Inlet Air Thermistor)
NOTICE:
Thisgureisapplicabletothefollowingthermistors.
1.InletAirThermistor(THM1),2.LiquidPipeThermistor(FreezeProtection)(THM3),3.GasPipeThermistor(THM5),
4. Outlet Air Thermistor (THM2), 5. Outside Air Thermistor or Remote Thermistor (THM4)
l
 TheRUNindicator(red)ashes.
l
The indoor unit number (refrigerant cycle number - address number), the alarm code, the model code
1
,
the model name
1
and the number of connected indoor units are displayed on the LCD. The indoor unit
number and the alarm code are displayed on the 7-segment display of the water source unit PCB.
Note 1: Except for some models.
Thisalarmcodeisdisplayedwhenashort(0.24kΩorless)oropensensor(840kΩormore)isdetected
during a heating or cooling operation. The operation automatically restarts when the malfunction is
removed.
Yes
Yes
Connect them.
No
Failure of
Thermistor
Failure of I.U. PCB
No

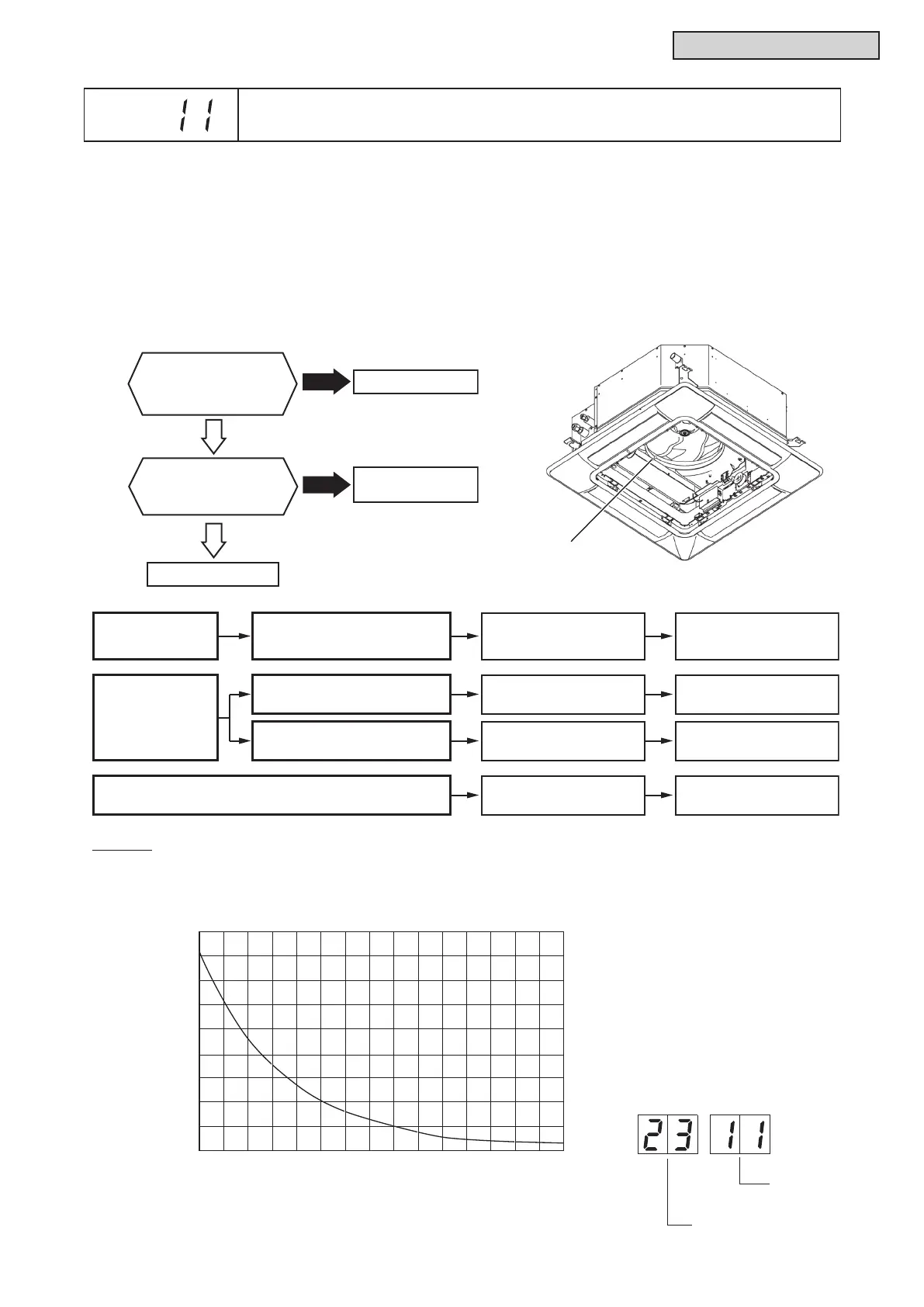

Is thermistor THM1
(for inlet air temp.)
connected to THM1
of I.U. PCB?
Is resistance of THM1
between 0.24kΩ and
840kΩ?
Cause Check Item
Action
(Turn OFF Main Switch)
Event
Failure of
Inlet Air
Thermistor
Check resistance.
Replace thermistor
if faulty.
Failure
Check connection.
Correctly connect wires.
Incorrect Connection
Replace I.U. PCB
and check operation.
Replace I.U. PCB
if faulty.
Failure of I.U. PCB
0
10
20
30
40
50
60
70
80
(-15) (-10) (-5) (0) (5) (10) (15) (20) (25) (30) (35) (40) (45) (50) (55) (60)
82
61
46
35
27
20.5
16
12.5
10
8
5.3
3.6
2.5
90
Thermistor
Resistance
(kΩ)
Thermistor Characteristics
514233241505968778695 104 113 122 131 140
Ambient Temperature (
o
F(
o
C))
Indication on Water Source Unit PCB
(Alarm Code 11 ~ 19)
Unit No. of
Malfunctioning Indoor Unit
Alarm Code
(11 ~ 19)
Example of 4-way Cassette Type
Inlet Air Thermistor
